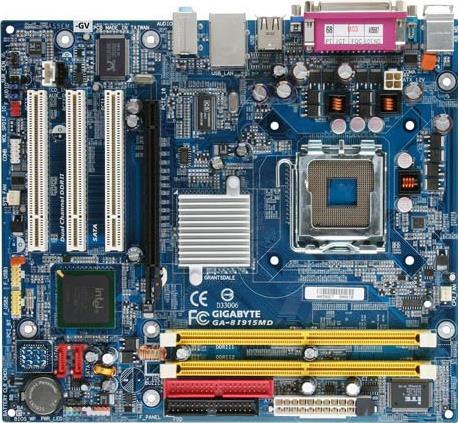

GA-8I915MD-GV (Rev. 1.x)

OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Procesor
    1. LGA 775 for Pentium® 4 Processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Čipset
    1. Northbridge : Intel® 915GV
    2. Southbridge : Intel® ICH6
    3. Integrated Peripherals :
      1. Realtek 8100C 10/100 Ethernet controller
      2. Realtek ALC655 audio codec
  • Memorija
    1. Type: Dual Channel DDR II 533 /400
    2. Max capacity: 2 GB
    3. DIMM slots: 2
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Slotovi za proširenje
    1. 1 x PCIe x 16 slot (x4 mode)(*Running at PCIe x 4 bandwidth, please see link below for Graphics Card Support List )
    2. 3 x PCI slots
  • Interni I/O konektori
    1. 2 x Serial ATA connectors
    2. 2 x USB 2.0 connectors (4 ports by cable)
    3. 1 x FDD connector
    4. 1 x UltraDMA 100/66 IDE
    5. 2 x cooling fan pin headers
    6. 1 x CD in
    7. 1 x COM port connector
    8. 1 x 24-pin ATX Power connector
    9. 1 x 4-pin ATX 12V Power connector
  • Zadnji panel I/O
    1. 4 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 3 x Audio jacks (Line Out / Line-in / Mic in)
    4. 1 x VGA port
    5. 1 x COM port
    6. 1 x LPT port
    7. 2 x PS/2 ports(Keyboard/Mouse)
  • H/W nadgledanje
    1. ITE 8712F
    2. System voltage detection
    3. CPU temperature detection
    4. CPU / System fan speed detection
    5. CPU warning temperature
    6. CPU / System fan failure warning
    7. CPU smart fan control
  • BIOS
    1. 1 X 3M bit flash ROM
  • Softver u paketu
    1. Norton Internet Security 2005
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Veličina
    1. Micro ATX
    2. 24.4cm x 23.6cm
  • Other Features
    1. Supports Q-Flash
    2. Supports @BIOS
    3. Supports EasyTune 5 (only supports Hardware Monitor function)
    4. Download Center
    5. Xpress Recovery 2
    6. Xpress Install
    7. Xpress BIOS Rescue
  • Napomena
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. LGA 775 for Pentium® 4 Processor
    • Front Side Bus
      1. 800 / 533 MHz FSB
    • Čipset
      1. Northbridge : Intel® 915GV
      2. Southbridge : Intel® ICH6
      3. Integrated Peripherals :
        1. Realtek 8100C 10/100 Ethernet controller
        2. Realtek ALC655 audio codec
    • Memorija
      1. Type: Dual Channel DDR II 533 /400
      2. Max capacity: 2 GB
      3. DIMM slots: 2
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Slotovi za proširenje
      1. 1 x PCIe x 16 slot (x4 mode)(*Running at PCIe x 4 bandwidth, please see link below for Graphics Card Support List )
      2. 3 x PCI slots
    • Interni I/O konektori
      1. 2 x Serial ATA connectors
      2. 2 x USB 2.0 connectors (4 ports by cable)
      3. 1 x FDD connector
      4. 1 x UltraDMA 100/66 IDE
      5. 2 x cooling fan pin headers
      6. 1 x CD in
      7. 1 x COM port connector
      8. 1 x 24-pin ATX Power connector
      9. 1 x 4-pin ATX 12V Power connector
    • Zadnji panel I/O
      1. 4 x USB 2.0 ports
      2. 1 x RJ45 LAN port
      3. 3 x Audio jacks (Line Out / Line-in / Mic in)
      4. 1 x VGA port
      5. 1 x COM port
      6. 1 x LPT port
      7. 2 x PS/2 ports(Keyboard/Mouse)
    • H/W nadgledanje
      1. ITE 8712F
      2. System voltage detection
      3. CPU temperature detection
      4. CPU / System fan speed detection
      5. CPU warning temperature
      6. CPU / System fan failure warning
      7. CPU smart fan control
    • BIOS
      1. 1 X 3M bit flash ROM
    • Softver u paketu
      1. Norton Internet Security 2005
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Veličina
      1. Micro ATX
      2. 24.4cm x 23.6cm
    • Other Features
      1. Supports Q-Flash
      2. Supports @BIOS
      3. Supports EasyTune 5 (only supports Hardware Monitor function)
      4. Download Center
      5. Xpress Recovery 2
      6. Xpress Install
      7. Xpress BIOS Rescue
    • Napomena
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
