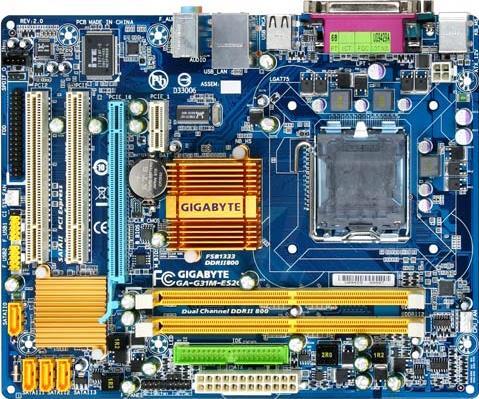

GA-G31M-ES2C (Rev. 2.x)

Rev. 2.xRev. 1.xRev. 2.3
Intel® G31 + ICH7 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Procesor
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA 775 package
      (Go to GIGABYTE's website for the latest CPU support list.)
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1600(O.C.)/1333/1066/800 MHz FSB
  • Čipset
    1. North Bridge: Intel® G31 Express Chipset
    2. South Bridge: Intel® ICH7
  • Memorija
    1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR2 1066(O.C.)/800/667 MHz memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
  • Integrisana grafika
    1. Integrated in the North Bridge
  • Audio
    1. Realtek ALC883 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note)
    4. Support for S/PDIF Out
    5. Support for CD In
    Note: To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. AR8132 chip (10/100 Mbit)
  • Slotovi za proširenje
    1. 1 x PCI Express x16 slot
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • Interfejs za skladištenje podataka
  • South Bridge:
    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Interni I/O konektori
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF Out header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x chassis intrusion header
    14. 1 x power LED header
  • Zadnji panel I/O
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O kontroler
    1. iTE IT8718 chip
  • H/W nadgledanje
    1. System voltage detection
    2. CPU temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control
  • BIOS
    1. 2 x 4 Mbit flash
    2. Use of licensed AWARD BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Ostale mogućnosti
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Virtual DualBIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
    8. Support for Easy Energy Saver
  • Softver u paketu
    1. Norton Internet Security (OEM version)
  • Operativni sistem
    1. Support for Microsoft® Windows 7/Vista/XP
  • Veličina
    1. Micro ATX form factor; 24.4cm x 19.4cm
  • Napomena
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA 775 package
        (Go to GIGABYTE's website for the latest CPU support list.)
      2. L2 cache varies with CPU
    • Front Side Bus
      1. 1600(O.C.)/1333/1066/800 MHz FSB
    • Čipset
      1. North Bridge: Intel® G31 Express Chipset
      2. South Bridge: Intel® ICH7
    • Memorija
      1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR2 1066(O.C.)/800/667 MHz memory modules
      (Go to GIGABYTE's website for the latest memory support list.)
    • Integrisana grafika
      1. Integrated in the North Bridge
    • Audio
      1. Realtek ALC883 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel (Note)
      4. Support for S/PDIF Out
      5. Support for CD In
      Note: To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
    • LAN
      1. AR8132 chip (10/100 Mbit)
    • Slotovi za proširenje
      1. 1 x PCI Express x16 slot
      2. 1 x PCI Express x1 slot
      3. 2 x PCI slots
    • Interfejs za skladištenje podataka
    • South Bridge:
      1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
      2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the South Bridge
      2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • Interni I/O konektori
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 4 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x system fan header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF Out header
      12. 2 x USB 2.0/1.1 headers
      13. 1 x chassis intrusion header
      14. 1 x power LED header
    • Zadnji panel I/O
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x D-Sub port
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O kontroler
      1. iTE IT8718 chip
    • H/W nadgledanje
      1. System voltage detection
      2. CPU temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU fan speed control
    • BIOS
      1. 2 x 4 Mbit flash
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Ostale mogućnosti
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Virtual DualBIOS
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
      8. Support for Easy Energy Saver
    • Softver u paketu
      1. Norton Internet Security (OEM version)
    • Operativni sistem
      1. Support for Microsoft® Windows 7/Vista/XP
    • Veličina
      1. Micro ATX form factor; 24.4cm x 19.4cm
    • Napomena
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
