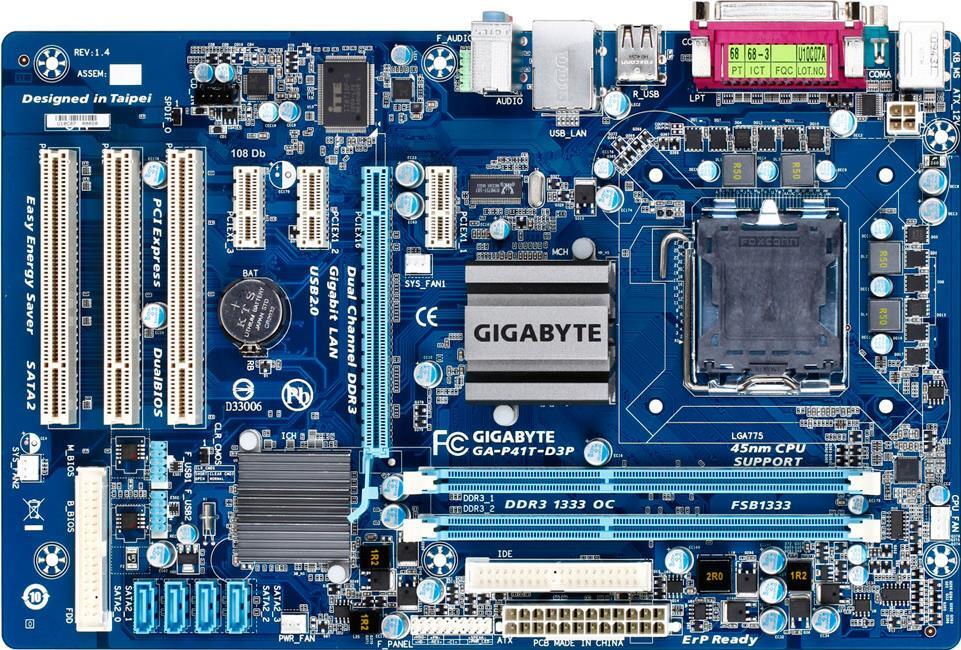

GA-P41T-D3P (Rev. 1.4)

Rev. 1.4Rev. 1.3Rev. 1.5Rev. 1.6
Intel® G41 + ICH7 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Procesor
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
    2. L2 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Front Side Bus
    1. 1333/1066/800 MHz FSB
  • Čipset
    1. North Bridge: Intel® G41 Express Chipset
    2. South Bridge: Intel® ICH7
  • Memorija
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek HD audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
    5. Support for CD In
  • LAN
    1. 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
  • Slotovi za proširenje
    1. 1 x PCI Express x16 slot, running at x16
    2. 3 x PCI Express x1 slots
    3. 3 x PCI slots
  • Interfejs za skladištenje podataka
  • South Bridge:
    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    iTE 8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • South Bridge:
    1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Interni I/O konektori
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF Out header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x clearing CMOS jumper
  • Zadnji panel I/O
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x coaxial S/PDIF Out connector
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O kontroler
    1. iTE IT8720
  • H/W nadgledanje
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU fan speed control
      * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Ostale mogućnosti
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for Easy Energy Saver
      * Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver.
    9. Support for Smart Recovery
    10. Support for ON/OFF Charge
    11. Support for Q-Share
  • Softver u paketu
    1. Norton Internet Security (OEM version)
  • Operativni sistem
    1. Support for Microsoft® Windows® 7/Vista/XP
  • Veličina
    1. ATX Form Factor; 30.5cm x 19.4cm
  • Napomena
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
      2. L2 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Front Side Bus
      1. 1333/1066/800 MHz FSB
    • Čipset
      1. North Bridge: Intel® G41 Express Chipset
      2. South Bridge: Intel® ICH7
    • Memorija
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
        * Due to standard PC architecture, a certain amount of memory is reserved for system usage, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      (Please refer "Memory Support List" for more information.)
    • Audio
      1. Realtek HD audio codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
      5. Support for CD In
    • LAN
      1. 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
    • Slotovi za proširenje
      1. 1 x PCI Express x16 slot, running at x16
      2. 3 x PCI Express x1 slots
      3. 3 x PCI slots
    • Interfejs za skladištenje podataka
    • South Bridge:
      1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
      2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
      iTE 8720 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
    • South Bridge:
      1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • Interni I/O konektori
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 4 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x power fan header
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x CD In connector
      12. 1 x S/PDIF Out header
      13. 2 x USB 2.0/1.1 headers
      14. 1 x clearing CMOS jumper
    • Zadnji panel I/O
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x coaxial S/PDIF Out connector
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O kontroler
      1. iTE IT8720
    • H/W nadgledanje
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU fan speed control
        * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Ostale mogućnosti
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for Easy Energy Saver
        * Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver.
      9. Support for Smart Recovery
      10. Support for ON/OFF Charge
      11. Support for Q-Share
    • Softver u paketu
      1. Norton Internet Security (OEM version)
    • Operativni sistem
      1. Support for Microsoft® Windows® 7/Vista/XP
    • Veličina
      1. ATX Form Factor; 30.5cm x 19.4cm
    • Napomena
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
