G210-H4GLegacy | Software updates supported

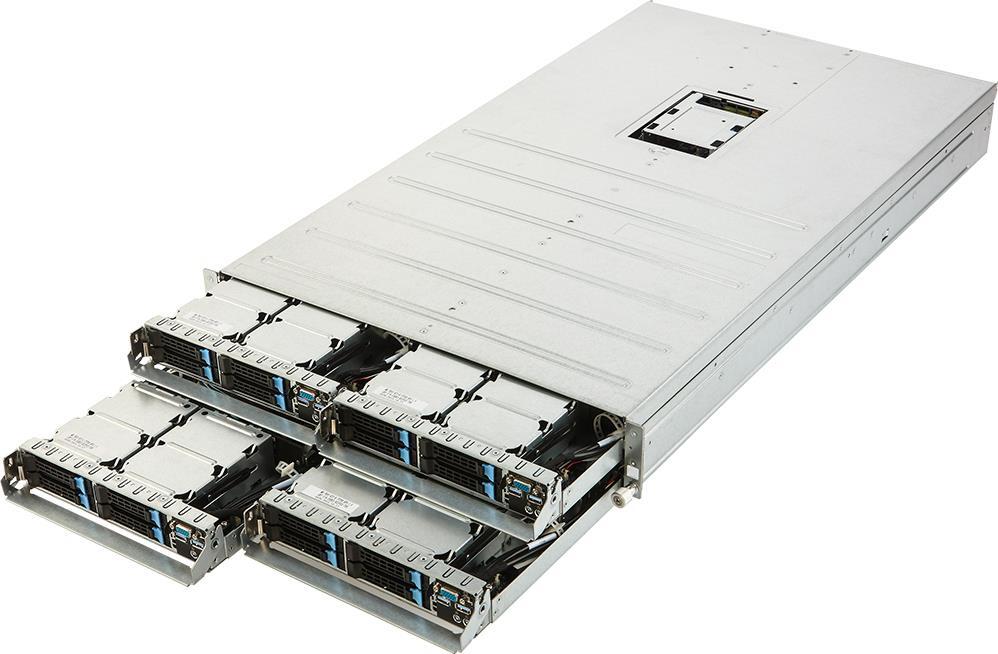

2U - 4 nodes Computing Server
- 2U - 4 nodes high density rack with front access to the node trays
- Intel® Xeon® processor E3-1200 V3 & V4 product families
- 4 x LGA 1150 sockets
- Intel® C226 chipset
- 4 x PCIe x16 (Gen3 x16 bus) supporting double slot cards
- 8 x DDR3 ECC slots
- 8 x GbE LAN ports (Intel® I210)
- 16 x 2.5” hot-swappable HDD/SSD bays
- 3200W 80 PLUS Platinum level (96.2% efficicency) PSU
Specifications
Dimensions (WxHxD, mm)
2U
447 x 87.2 x 780
447 x 87.2 x 780
Motherboard
4 x GA-6LISL
CPU
Supports Intel® Xeon® processor E3-1200 V3 & V4 product families
Supports 4th gen Intel® Core™ i3, Pentium® and Celeron® processors*
*If used with non-ECC memory, supported on client OS only. If used with ECC memory, supported on both client and server OS.
Supports 4th gen Intel® Core™ i3, Pentium® and Celeron® processors*
*If used with non-ECC memory, supported on client OS only. If used with ECC memory, supported on both client and server OS.
Socket
Per node:
1 x LGA 1150
Total:
4 x LGA 1150
4 x CPU heatsinks included
1 x LGA 1150
Total:
4 x LGA 1150
4 x CPU heatsinks included
Chipset
Per node:
Intel® C226
Intel® C226
Memory
Per node:
2 x DIMM slots
Total:
8 x DIMM slots
Supports unbuffered ECC or non-ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Up to 16GB
1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E3-1200 V4 processors only
2 x DIMM slots
Total:
8 x DIMM slots
Supports unbuffered ECC or non-ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Up to 16GB
1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E3-1200 V4 processors only
LAN
Per node:
2 x GbE LAN ports (Intel® I210-AT)
2 x GbE LAN ports (Intel® I210-AT)
Video
Per node:
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
Per node:
4 x 2.5" hot-swappable HDD/SSD bays
Total:
16 x 2.5" hot-swappable HDD/SSD bays
4 x 2.5" hot-swappable HDD/SSD bays
Total:
16 x 2.5" hot-swappable HDD/SSD bays
SATA
Per node:
5 x SATA III 6Gb/s ports
Total:
20 x SATA III 6Gb/s ports
5 x SATA III 6Gb/s ports
Total:
20 x SATA III 6Gb/s ports
SAS
-
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
-
Expansion Slots
Per node:
1 x PCIe x16 (Gen3 x16 bus) slot
Total:
4 x PCIe x16 (Gen3 x16 bus) slots
Supports:
1 x PCIe x16 (Gen3 x16 bus) slot
Total:
4 x PCIe x16 (Gen3 x16 bus) slots
Supports:
- NVIDIA GRID K340
- AMD FirePro S9150
Internal I/O
Per node:
1 x Front panel VGA header
1 x 24-pin ATX main power connector
1 x 4-pin 12V auxiliary power connector
1 x PCIe x16 and x8 bandwidth switch jumper
1 x CPU fan header
1 x Front panel header
3 x System fan headers
1 x PMBus connector
1 x USB 3.0 header
1 x USB 2.0 header
1 x SATA port 4 DOM support jumper
1 x Case open intrusion header
1 x Battery power cable connector
5 x SATA III 6Gb/s ports
1 x SATA SGPIO header
1 x Clear CMOS jumper
1 x ME update jumper
1 x BIOS recovery jumper
1 x BMC readiness LED
1 x IPMB connector
1 x TPM header
1 x Front panel VGA header
1 x 24-pin ATX main power connector
1 x 4-pin 12V auxiliary power connector
1 x PCIe x16 and x8 bandwidth switch jumper
1 x CPU fan header
1 x Front panel header
3 x System fan headers
1 x PMBus connector
1 x USB 3.0 header
1 x USB 2.0 header
1 x SATA port 4 DOM support jumper
1 x Case open intrusion header
1 x Battery power cable connector
5 x SATA III 6Gb/s ports
1 x SATA SGPIO header
1 x Clear CMOS jumper
1 x ME update jumper
1 x BIOS recovery jumper
1 x BMC readiness LED
1 x IPMB connector
1 x TPM header
Front I/O
Per node:
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LED
1 x NMI LED
1 x BMC reset LED
1 x System status LED
Total:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI LEDs
4 x BMC reset LEDs
4 x System status LEDs
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LED
1 x NMI LED
1 x BMC reset LED
1 x System status LED
Total:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI LEDs
4 x BMC reset LEDs
4 x System status LEDs
Rear I/O
Per node:
2 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
Total:
8 x USB 2.0
4 x VGA
4 x Serial
8 x RJ45
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI buttons
4 x Reset buttons
2 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
Total:
8 x USB 2.0
4 x VGA
4 x Serial
8 x RJ45
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI buttons
4 x Reset buttons
Backplane Board
4 x SATA III 6Gb/s ports
TPM
1 x TPM header
Power Supply[#1]
2 x 1600W PSU
80 PLUS Platinum
AC input:
- 100-127V/ 12A, 47-63Hz
- 200-240V/ 9.48A, 47-63Hz
DC output:
- 1000W@100-127V
- 1600W@200-240V
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2012 R2 (x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
System Fans
Per node:
4 x 40x40x56mm
1 x 38x38x48mm
Total:
16 x 40x40x56mm
4 x 38x38x48mm
4 x 40x40x56mm
1 x 38x38x48mm
Total:
16 x 40x40x56mm
4 x 38x38x48mm
Operating Properties
Operating temperature: 5°C to 30°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Weight
32.6kg
Packaging Dimensions
1050x591x218 mm
Packaging Content
1 x Rackmount
1 x Rail kit
1 x Driver CD
1 x Manual
4 x Heatsinks
1 x Rail kit
1 x Driver CD
1 x Manual
4 x Heatsinks
Part Numbers
Rackmount: 6NR21FDNR-00
Rail kit: 25HB2-A86100-K0R
Heatsink: 12SP2-040091-00R
Rail kit: 25HB2-A86100-K0R
Heatsink: 12SP2-040091-00R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
