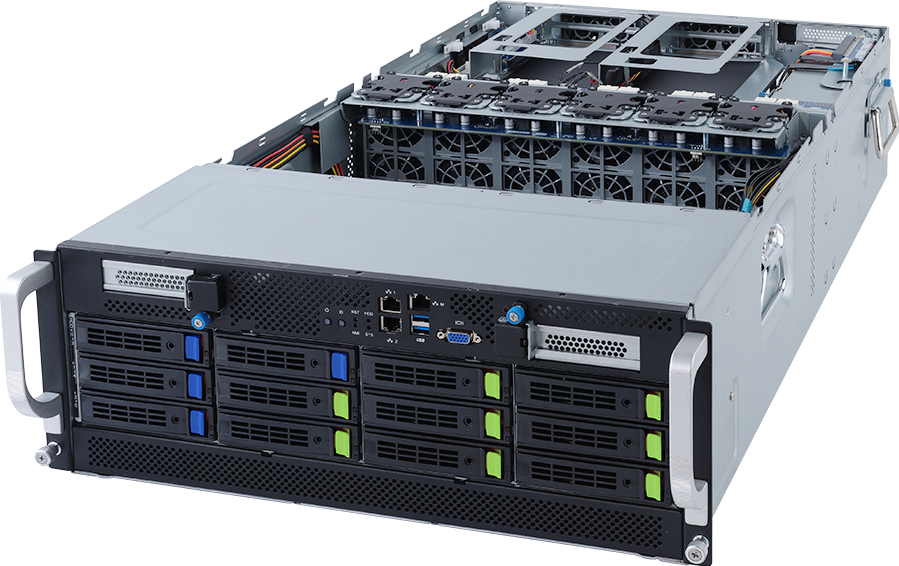

G492-Z52 (rev. A00)
HPC Server - 4U DP 10 x Gen4 GPU Server ( Broadcom solution)
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
Application:
- Up to 10 x PCIe Gen4 GPU cards
- AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
- AMD EPYC™ 7003 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- Dual ROM Architecture supported
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x dedicated management port
- 4 x Gen4 NVMe hot-swappable HDD/SSD bays
- 4 x Gen4 NVMe/SATA/SAS hot-swappable HDD/SSD bays
- 4 x SATA/SAS hot-swappable HDD/SSD bays
- 10 x FHFL Gen4 expansion slots for GPU cards
- 3 x low profile PCIe Gen4 expansion slots
- 1 x OCP 3.0 Gen4 x16 mezzanine slot in rear side
- 3 x 80 PLUS Platinum 2200W (240V) redundant PSU
Request a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 176 x 880
448 x 176 x 880
Motherboard
MZ52-G42 Rev. 3.0
CPU
AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7003 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 series processor family
AMD EPYC™ 7003 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Front Side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
12 x 3.5" or 2.5" hot-swappable HDD/SSD bays
- 4 x green HDD trays compatible with NVMe devices
- 4 x green HDD trays compatible with NVMe or SATA/SAS devices
- 4 x blue HDD trays compatible with SATA/SAS devices
SAS card is required for SAS devices support
- 4 x green HDD trays compatible with NVMe devices
- 4 x green HDD trays compatible with NVMe or SATA/SAS devices
- 4 x blue HDD trays compatible with SATA/SAS devices
SAS card is required for SAS devices support
SAS
N/A
RAID
In option
Peripheral Drives
N/A
Expansion Slots
10 x PCIe x16 slots (Gen4 x16 bus) for GPUs ( Broadcom solution)
1 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slot in front side
1 x PCIe x16 (Gen4 x8 bus) Half-length low-profile slot in front side
1 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slot in rear side#
# Non-supported SAS Card with internal cable due to cable routing limitation
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 in rear side
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
1 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slot in front side
1 x PCIe x16 (Gen4 x8 bus) Half-length low-profile slot in front side
1 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slot in rear side#
# Non-supported SAS Card with internal cable due to cable routing limitation
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 in rear side
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Rear I/O
N/A
Backplane I/O
Backplane PN: 9CBP20C5NR-00
12 ports
Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s or PCIe Gen4 x4
Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s or PCIe Gen4 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
3 x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A +12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
+12.12V/ 178.1A +12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 8.3 ( x64) or later
SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Red Hat Enterprise Linux 8.3 ( x64) or later
SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
Citrix Hypervisor 8.2.0 or later
System Fans
4 x 40x40x28mm (25,000rpm)
1 x 55x55x7.5mm (6,000rpm)
12 x 60x60x38mm (21,700rpm)
1 x 55x55x7.5mm (6,000rpm)
12 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Packaging Dimensions
1109 x 609 x 606 mm
Packaging Content
1 x G492-Z52
2 x CPU fan-sinks
1 x Rail kit
2 x CPU fan-sinks
1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG492Z52MR-00 Rev. A00
- Motherboard: 9MZ52G42NR-00
- Rail kit: 25HB2-A96100-K0R
- CPU fan-sink: 12SF2-01A067-00R
- Back plane board_12-port: 9CBP20C5NR-00
- Front panel board: 9CFPG014NR-00
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R ( in option)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R ( in option)
- Motherboard: 9MZ52G42NR-00
- Rail kit: 25HB2-A96100-K0R
- CPU fan-sink: 12SF2-01A067-00R
- Back plane board_12-port: 9CBP20C5NR-00
- Front panel board: 9CFPG014NR-00
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R ( in option)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R ( in option)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Драйвер
BIOS
Utility
Firmware
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
LAN
LAN
Версия
Размер
Дата
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
2019.08.06
OS: Windows Server 2016 64bit,Windows Server 2019
VGA
VGA
Версия
Размер
Дата
ASPEED Graphic Driver
Version : 1.06
1.78 MB
2019.08.06
OS: Windows Server 2016 64bit,Windows Server 2019
BIOS
Описание
Версия
Размер
Дата
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
2021.01.29
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Описание
Версия
Размер
Дата
GSM Agent
Version : 2.3
685.88 MB
2021.12.27
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Server
Version : 2.08
1568.13 MB
2021.12.21
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 2.1.50
110.55 MB
2021.03.06
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019
Firmware
Описание
Версия
Размер
Дата
BMC Firmware with embedded GIGABYTE Management Console
(AST2600 AMI)
(AST2600 AMI)
Version : 13.03.03
106.36 MB
2022.05.05
English
Инструкции
Описание
Версия
Размер
Дата
Support List
RESOURCES
Success Case
Articles
Success Case | March 15, 2022
GIGABYTE’s ARM Server Boosts Development of Smart Traffic Solution by 200%
A team of scientists at NTU has adopted GIGABYTE’s G242-P32 server and the Arm HPC Developer Kit to incubate a “high-precision traffic flow model”—a smart traffic solution that can be used to test autonomous vehicles and identify accident-prone road sections for immediate redress. The ARM-based solution gives the project a 200% boost in efficiency, thanks to the cloud-native processor architecture that “speaks” the same coding language as the roadside sensors, the high number of CPU cores that excel at parallel computing, the synergy with GPUs that enable heterogeneous computing, and the ISO certifications which make the resulting model easily deployable for automakers and government regulators alike.
Success Case | March 14, 2022
CSR and ESG in Action: GIGABYTE Helps NCKU Train Award-Winning Supercomputing Team
GIGABYTE Technology is not only a leading brand in high-performance server solutions—it is also an active force for good when it comes to CSR and ESG activities. Case in point: in 2020, GIGABYTE provided four G482-Z50 servers to Taiwan’s Cheng Kung University. The servers were used to train a team of talented students, who went on to take first place in that year’s APAC HPC-AI Competition in Singapore. The parallel computing performance of the servers’ processors, the seamless connectivity between the servers, and the servers’ unrivalled reliability are the reasons why GIGABYTE servers are ideal for educating the next generation of supercomputing experts. GIGABYTE is happy to give back to society and contribute to human advancement through high tech solutions.
Success Case | November 08, 2021
NCHC and Xanthus Elevate Taiwanese Animation on the World Stage with GIGABYTE Servers
Created by Greener Grass Production, the Taiwanese sci-fi mini-series “2049” has debuted on Netflix and various local TV channels. The animated spin-off “2049+ Voice of Rebirth”, crafted by Xanthus Animation Studio, will soon premiere on the streaming service myVideo. The CGI show was created with the NCHC Render Farm’s GIGABYTE servers, which employ top-of-the-line NVIDIA® graphics cards to empower artists with industry-leading rendering capabilities. The servers can take on multiple workloads simultaneously through parallel computing, and they boast a wide range of patented smart features that ensure stability and availability. With all it has going for it, “2049+ Voice of Rebirth” may garner enough attention to become the breakout hit that will introduce Taiwanese animation to international audiences.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Setting the Record Straight: What is HPC? A Tech Guide by GIGABYTE
The term HPC, which stands for high performance computing, gets thrown around a lot nowadays, as server solutions become more and more ubiquitous. It is running the risk of becoming a catchall phrase: anything that is “HPC” must be the right choice for your computing needs. You may be wondering: what exactly are the benefits of HPC, and is HPC right for you? GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you understand what HPC means on both a theoretical and a practical level. In doing so, we hope to help you evaluate if HPC is right for you, while demonstrating what GIGABYTE has to offer in the field of HPC.
Video


Video | March 30, 2022
A Data-Driven Medical Age
May technology be there to upgrade your life. GIGABYTE combines its hardware and software expertise to provide the healthcare ...


Video | March 16, 2022
He works really hard #shorts
What's inside the factory before you purchase them? #shorts #GIGABYTE #serversolutions #upgradeyourlife -- Where to buy ...


Video | March 10, 2022
What's inside the factory #shorts
What's inside the factory before you purchase them? #shorts #asmr #GIGABYTE #serversolutions #upgradeyourlife -- Where to ...


Video | March 02, 2022
Edge Computing at a Glance
GIGABYTE #serversolutions #upgradeyourlife -- Where to buy https://www.gigabyte.com/Buy? Find us on social media ...


Video | February 25, 2022
Render Farm at a Glance
Rendering high-resolution CGI takes a lot of processing power. It may take hours to render a single frame, and even months to ...


Video | February 25, 2022
Heterogeneous Computing Power For 5G Edge
Nowadays, GPUs are a very important feature for not only AI and HPC, but also 5G edge. Leveraging the benefits of a GPU's ...


Video | February 25, 2022
GIGABYTE Servers Designed for 5G Edge
GIGABYTE Ampere E252 Series is designed for 5G edge, taking advantage of Altra / Altra Max's high power efficiency and rich ...


Video | February 24, 2022
immersion cooling in 60 seconds
GIGABYTE #serversolutions #upgradeyourlife -- Where to buy https://www.gigabyte.com/Buy? Find us on social media ...


Video | February 24, 2022
GIGABYTE at MWC 2022. Reimagine Your Everyday Connectivity.
5G is not just some buzzword in telecommunication that only brings you faster internet connection. It should be a new era where ...

![[CES 2022] Reimagine Your Connectivitywith 5G Technology](https://i.ytimg.com/vi/WEX5zHq7wuw/hqdefault.jpg)
Video | January 19, 2022
[CES 2022] Reimagine Your Connectivitywith 5G Technology
5G is not just a technology trend in the telecommunications industry that gives us “faster” and “widespread” access to the internet.

![[CES 2022] Upgrade Your Everyday Life with Smart Retail Technologies](https://i.ytimg.com/vi/A9DHPAHVZMg/hqdefault.jpg)
Video | January 19, 2022
[CES 2022] Upgrade Your Everyday Life with Smart Retail Technologies
Industry 4.0 welcomed AI and Big Data enabled automation to create greater value and a more streamlined experience, ...

![[CES 2022] How to Scale Up Your Smart Manufacturing?](https://i.ytimg.com/vi/LeM3UiA5aYI/hqdefault.jpg)
Video | January 09, 2022
[CES 2022] How to Scale Up Your Smart Manufacturing?
Industry 4.0 and IoT will make the factories of tomorrow work smarter, not harder. GIGABYTE offers a variety of solutions, including ...


Video | January 04, 2022
Exploring New Possibilities of e-Mobility with GIGABYTE
Explore GIGABYTE Automotive Industry solutions: https://gbte.tech/UhDt #emobility #autonomousvehicle #selfdriving #ADAS ...


Video | January 01, 2022
How will you transform your data center?
The smart world of tomorrow will revolve around data centers. In this section, we present GIGABYTE servers based on a variety of ...


Video | December 29, 2021
Revolutionize the way we get from Point A to Point B
AI, IoT, and edge computing will revolutionize the way we get from Point A to Point B. Whether it is autonomous driving solutions ...


Video | November 16, 2021
GIGABYTE Powerful CPU and Accelerator Server Solutions for HPC with AMD
Sit down for a quick presentation of HPC and AI products using the AMD EPYC 7003 processor. At the end, don't miss the look at the new G262-ZO0 with the ...


Video | November 16, 2021
NVIDIA ARM HPC Devkit Helps to Reinvent the World - G242-P32 ARM Server
Arm is the future of computing that is going to move from the cloud to the edge and the computational power from NVIDIA GPU that can also bring AI to the edge.


Video | November 16, 2021
Amped for the Cloud - G242-P31 ARM HPC Server
Ampere Altra processors, built with Arm architecture, compete with the x86 platform by having more cores to tackle compute-bound workloads. GIGABYTE ...


Video | November 16, 2021
Talk About Ampere® Altra® Maxwith Jeff Wittich from Ampere Computing
Join the Migration to the Cloud with Ampere and GIGABYTE. Adding Ampere's Altra Max processor, using Arm, to GIGABYTE's server portfolio offers another ...


Video | November 15, 2021
Ampere® Altra® CPU and NVIDIA Arm HPC Dev Kit
In this video we dive into GIGABYTE's current lineup of Arm based servers using the Ampere Altra processor. Also, a great opportunity to learn about the server ...


Video | November 10, 2021
GIGABYTE is the Leading ARM Hardware Ecosystem
GIGABYTE server team sits down to discuss the history of GIGABYTE servers developed for Arm starting with AppliedMicro X-Gene and moving all the way to ...


Video | August 09, 2021
We provide flexibility in selecting high performance computing systems
GIGABYTE's servers provide flexibility in selecting high performance computing systems and better cost-effectiveness, as well as they ensure the reliability and ...


Video | July 28, 2021
Heroes Ascension
Over the past year or so, due to global warming and climate changes, all parts of the world have witnessed extreme weather events that are more severe than ...
News
News | March 23, 2022
GIGABYTE Hosts Sessions at NVIDIA GTC and Expands Support to Include the NVIDIA H100 Tensor Core GPU
Others
Back to G492-Z52
