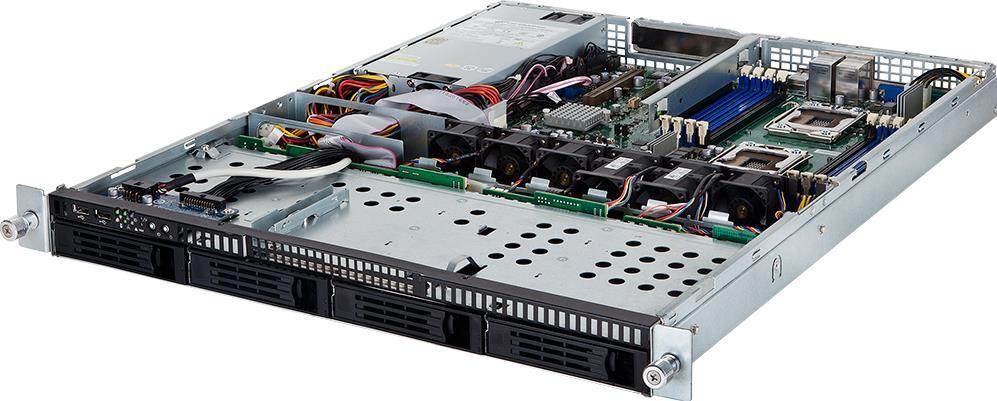

GS-R12P4SLegacy | Firmware updates supported

1U
440 x 43.5 x 570

GA-7PCSL

Supports Intel^® Xeon^® processor E5-2400 & E5-2400 V2 product families

2 x LGA 1356
2 x CPU heatsinks included

Intel^® C602

8 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz

*RDIMM only

2 x GbE LAN ports (Intel^® 82574L)
1 x 10/100 management LAN

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

4 x 3.5" hot-swappable HDD/SSD bays

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

1 x Mini-SAS (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS (disabled, can be enabled via Intel^® upgrade key)

Intel^® SATA RAID 0/1/5/10

-

1 x Full-length full-height slot
1 x PCIe x16 (Gen3 x16 bus) connector

1 x 24-pin main power connector
2 x 8-pin 12V power connectors
1 x CMOS battery
1 x Patsburg-A SKU select connector
2 x CPU fan headers
4 x System fan headers
2 x SATA III 6Gb/s ports
1 x PMBus connector
1 x HDD backplane connector
1 x Mini-SAS connector (SATA II 3Gb/s signal)
1 x Mini-SAS connector
2 x ME enable/disable jumpers
1 x USB 2.0 header
1 x Front panel header
1 x Serial header
1 x TPM header
1 x Chassis intrusion jumper
1 x SCU SGPIO connector
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Clear password jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x BIOS write protect jumper
1 x SATA0/1 port DOM support jumper

2 x USB 2.0
Š1 x Power button with LED
Š1 x NMI button
Š1 x ID button with LED
Š1 x Reset button
Š2 x LAN LEDs
Š1 x System status LED
Š1 x HDD status LED

4 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45

N/A

1 x TPM header

1 x 500W PSU
80 PLUS Bronze
100~220V AC

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 6.2 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

4 x 40x40x28mm (16000rpm)

Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 50°C
Š10-80% operating humidity at 30°C

10 kg

Barebone: 6NR12P4SMS-00
Rail kit: 25HB2-AA0200-K0R
