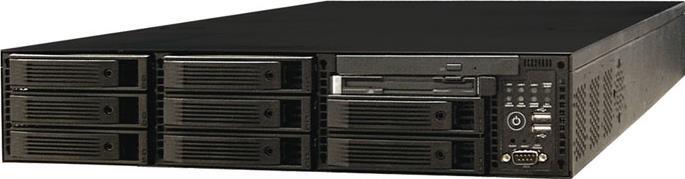

GS-SR295DLegacy | Firmware updates supported
- Intel®E7520 MCH chipset, ICH5R IO controller hub, 6700PXH 64 bit PCI-X hub, LSI®1030 dual channel U320 SCSI controller
- Support for Zero-Channel RAID w/ LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board
- Dual New Intel® Xeon™(Nocona) CPUs (Socket 604/800MHz FSB/ 3.6GHz)
- 8 * Registered DDRII-333/400 with max. 32GB
- Supports ECC/ registered DDRII 333/400
- Licensed Award BIOS with 4Mb Flash ROM
- 2 PCI-X 64bit/66~100MHz Full-Height Slot, 1 PCI 64bit/66~100MHz & 1 PCI 64bit/133MHz
- Low-Profile Slots, 1 ZCR riser on MB support PCI-X LSI® ZCR extension card
- Optional LSI® 320-0 Zero Channel RAID PCI-X extension card
- Dual Broadcom® BCM5721 Gigabit Ethernet controller
- 8 SCSI hot-swap HDD tray and one set slim type CD-ROM & Floppy drives
- Redundant Power supply 500W
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual New Intel® Xeon™(Nocona) CPUs up to 3.6 GHz
- Supports 800 Mhz FSB
- Socket 604
Chipset
- Intel® E7520 MCH
- Intel® ICH5R IO controller hub
- Intel® 6700PXH 64 bit PCI-X hub
- LSI® 1030 dual channel U320 SCSI controller
LAN
- Dual Broadcom® BCM5721 Gigabit Ethernet controller
Video
- ATI® Rage-XL on board with 8MB memory
Storage
- 8 front-accessible hot-swap SCSI HDD
- One slim CD-ROM and slim FDD module
RAID
- Optional LSI® 320-0 Zero Channel RAID PCI-X extension card
- Support for Zero-Channel RAID w/ LSI®MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board
Peripheral Drives
- 1 x Slim FDD
- 1 x Slim 24x CD-ROM
Expansion Slots
- 2 PCI-X 64bit/66~100MHz Full-Height Slots
- 1 PCI 64bit/66~100MHZ Low-Profile Slot
- 1 PCI 64bit/133MHZ Low Profile Slot
- 1 ZCR riser on MB support PCI-X LSI® ZCR extension card
Power Supply[#1]
- Maximum 480W single/redundant(optional) Power Supply supported
- 100V~240V (Plus or minus 10 percent)
- 50~60Hz (Plus or minus 6 percent)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
