• The Perfect Balance of Superb Performance, Compelling Features, and Compact Form Factor.

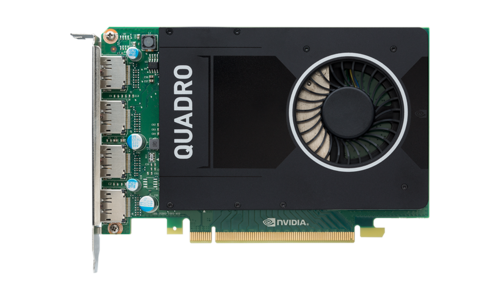

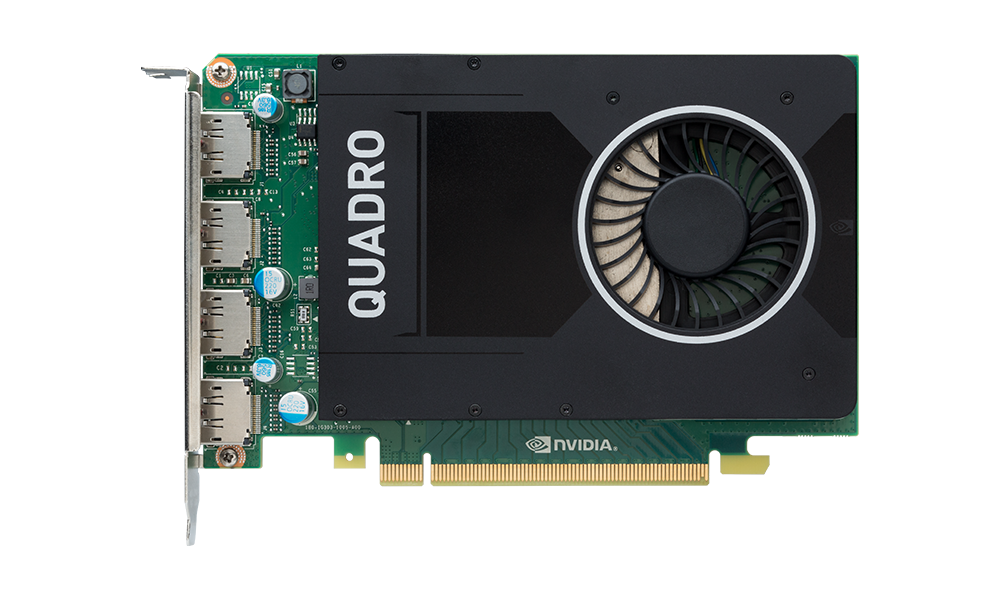

    Delivering incredible creative experiences across a broad range of professional 3D applications. This advanced graphics card features an NVIDIA Maxwell™- based GPU, plus 4 GB of ultra-fast on-board memory and the power to drive four 4K displays natively. This makes it an excellent choice for accelerating product development and content creation workflows that demand fluid interactivity with complex models and scenes. Creative professionals can tap into this increased performance-as well as hardware HEVC encode and decode engines-to accelerate both creation and playback of HEVC content.

    Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you're developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
  • 3D Graphics Architecture
    • Scalable geometry architecture
    • Hardware tessellation engine
    • Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
    • Up to 16K x16K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA)
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 and HEVC Encoder1
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
    • Quadro Boost™ (automatically improves GPU engine throughput to maximum application performance)

  • Parallel Computing Capabilities
    • SMM Architecture (Maxwell streaming multi-processor design that delivers greater processing and efficiency)
    • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
    • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
    • 96 KB of RAM (dedicated shared memory per SM)
  • Advanced Display Features
    • Simultaneously drive up to four displays when connected natively
    • Four DisplayPort 1.2 outputs (supporting resolutions such as 4096x2160 @ 60Hz)
    • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
    • HDCP support over DisplayPort, DVI & HDMI connectors
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
    • NVIDIA® 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Full OpenGL quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • NVIDIA® nView® multi-display technology
    • Support for NVIDIA® Quadro® Mosaic, NVIDIA® nView® multi-display technology, NVIDIA® Enterprise Management Tools
  • DisplayPort and HDMI Digital Audio
    • Support for the following audio modes:Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), DTS-HD, TrueHD
    • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz (HDMI only), and 192 KHz (HDMI only)
    • Word sizes of 16-bit, 20-bit, and 24-bit
    1. This feature requires implementation by software applications and is not a stand-alone utility. Please contact quadrohelp@nvidia.com for details on availability.
