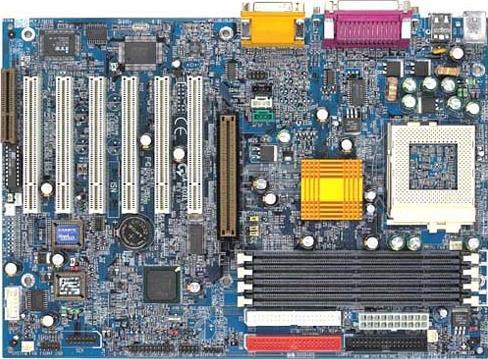

GA-6OXE (Rev. 1.1)

Teknik ÖzelliklerDestekHaberler/ÖdüllerWhere to Buy

Teknik Özellikler

  • İşlemci
    1. Socket 370 for Intel® FC-PGA Pentium® III or other compatible processors
    2. Supports Auto/66/100/133 MHz FSB (Front Side Bus)
  • Yongaseti
    1. Intel® 815EP AGPset
    2. iTE IT8712F Super I/O & health chip
    3. Creative CT5880 H/W sound (4 channels audio)
  • Bellek
    1. Supports up to 512 MB SDRAM memory
    2. 4 DIMMs 168-pin sockets
    3. Supports 32/64/128/256/512 MB SDRAM modules
  • Genişleme Yuvaları
    1. 1 x AGP slot supports 2X/4X mode & AGP 2.0 compliant
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communications and Network Riser) slot
  • G/Ç Denetleyicisi
    1. 2 x UDMA ATA 66/100 IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Gameport, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board, 2 x USB ports by cable (optional accessary)
    5. 1 x SCR (Smart Card Reader) connector
    6. 1 x IA (Information Appliance) connector
    7. IrDA TX / RX header
    8. Front panel audio connector
  • Donanım İzleme
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect & report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Supports DualBIOSTM technology
    2. 4M bit flash ROM BIOS, enhanced ACPI feature for PC98/Win98/Win2000/ WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
    5. Supports @BIOSTM Live Update
  • Form Faktör
    1. ATX form factor , 4 layer PCB (30.5*21.5 cm)
  • Driver
    1. Gigabyte Windows Manager Utility
    2. Gigabyte EasyTune IIITM and @BIOSTM utility
    3. Intel® LDCM® and 815 patch utility for Windows 95/98
    4. Hardware monitor utility
    5. Creative PCI sound drivers
  • Other Features
    1. Supports STR (Suspend-To-RAM)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune IIITM
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch
