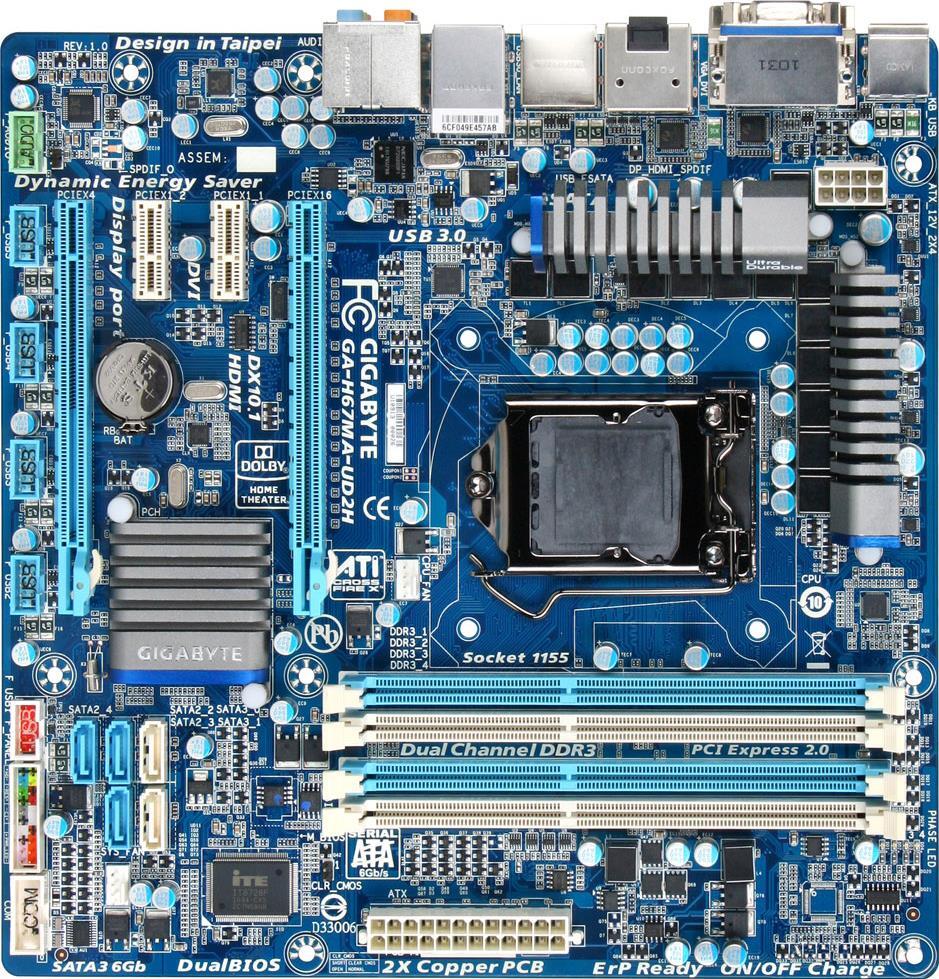

GA-H67MA-UD2H (Rev. 1.0)

Rev. 1.0Rev. 1.1
Intel® H67 Chipset
TanıtımTeknik ÖzelliklerDestekHaberler/ÖdüllerWhere to Buy

Teknik Özellikler

  • İşlemci
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package (Go to GIGABYTE's website for the latest CPU support list.)
    2. L3 cache varies with CPU
  • Yongaseti
    1. Intel® H67 Express Chipset
  • Bellek
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Dahili Grafik
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    4. 1 x DisplayPort
    (To use the onboard DisplayPort, HDMI, DVI-D, and D-Sub ports, you must install an Intel CPU with integrated graphics.)
  • Ses Desteği
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby® Home Theater
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
  • Genişleme Yuvaları
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 2 x PCI Express x1 slots
      (All PCI Express slots conform to PCI Express 2.0 standard.)
  • Çoklu Grafik Teknolojisi
    1. Support for ATI CrossFireX™
      * The PCIEX16 slot operates at up to x8 mode when ATI CrossFireX™ is enabled.
  • Depolama Ara yüzü
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
    2. 3 x SATA 3Gb/s connectors (SATA2_2, SATA2_3, SATA2_4) supporting up to 3 SATA 3Gb/s devices
    3. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
    4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • USB
  • Chipset:
    1. Up to 14 USB 2.0/1.1 ports (4 on the back panel, 10 via the USB brackets connected to the internal USB headers)
    Renesas D720200 chip:
    1. Up to 2 USB 3.0/2.0 ports on the back panel.
  • Dahili G/Ç Bağlantı Noktaları
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 3 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 5 x USB 2.0/1.1 headers
    11. 1 x serial port header
    12. 1 x clearing CMOS jumper
  • Arka Panel G/Ç
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x DisplayPort
    6. 1 x optical S/PDIF Out connector
    7. 4 x USB 2.0/1.1 ports
    8. 2 x USB 3.0/2.0 ports
    9. 1 x eSATA 3Gb/s connector
    10. 1 x RJ-45 port
    11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
  • G/Ç Denetleyicisi
    1. iTE IT8728 chip
  • Donanım İzleme
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control
      *Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Diğer Özellikler
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for Dynamic Energy Saver™ 2
    9. Support for Smart 6™
    10. Support for Auto Green
    11. Support for eXtreme Hard Drive (X.H.D)
    12. Support for ON/OFF Charge
    13. Support for Cloud OC
    14. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • İşletim Sistemi
    1. Support for Microsoft® Windows® 8/7/Vista/XP
  • Form Faktör
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Not
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • İşlemci
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package (Go to GIGABYTE's website for the latest CPU support list.)
      2. L3 cache varies with CPU
    • Yongaseti
      1. Intel® H67 Express Chipset
    • Bellek
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • Dahili Grafik
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
      4. 1 x DisplayPort
      (To use the onboard DisplayPort, HDMI, DVI-D, and D-Sub ports, you must install an Intel CPU with integrated graphics.)
    • Ses Desteği
      1. Realtek ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for Dolby® Home Theater
      5. Support for S/PDIF Out
    • LAN
      1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
    • Genişleme Yuvaları
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 2 x PCI Express x1 slots
        (All PCI Express slots conform to PCI Express 2.0 standard.)
    • Çoklu Grafik Teknolojisi
      1. Support for ATI CrossFireX™
        * The PCIEX16 slot operates at up to x8 mode when ATI CrossFireX™ is enabled.
    • Depolama Ara yüzü
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
      2. 3 x SATA 3Gb/s connectors (SATA2_2, SATA2_3, SATA2_4) supporting up to 3 SATA 3Gb/s devices
      3. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
      4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
        * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    • USB
    • Chipset:
      1. Up to 14 USB 2.0/1.1 ports (4 on the back panel, 10 via the USB brackets connected to the internal USB headers)
      Renesas D720200 chip:
      1. Up to 2 USB 3.0/2.0 ports on the back panel.
    • Dahili G/Ç Bağlantı Noktaları
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 3 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 5 x USB 2.0/1.1 headers
      11. 1 x serial port header
      12. 1 x clearing CMOS jumper
    • Arka Panel G/Ç
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 1 x DisplayPort
      6. 1 x optical S/PDIF Out connector
      7. 4 x USB 2.0/1.1 ports
      8. 2 x USB 3.0/2.0 ports
      9. 1 x eSATA 3Gb/s connector
      10. 1 x RJ-45 port
      11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
    • G/Ç Denetleyicisi
      1. iTE IT8728 chip
    • Donanım İzleme
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU/System fan speed control
        *Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • BIOS
      1. 2 x 32 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Diğer Özellikler
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for Dynamic Energy Saver™ 2
      9. Support for Smart 6™
      10. Support for Auto Green
      11. Support for eXtreme Hard Drive (X.H.D)
      12. Support for ON/OFF Charge
      13. Support for Cloud OC
      14. Support for Q-Share
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • İşletim Sistemi
      1. Support for Microsoft® Windows® 8/7/Vista/XP
    • Form Faktör
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Not
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI, HDMI High-Definition Multimedia Interface terimleri, HDMI Ticari takdim şekli ve HDMI Logoları HDMI Licensing Administrator, Inc.’nin ticari markaları veya tescilli ticari markalarıdır.
      * Burada sağlanan tüm materyaller yalnızca referans içindir. GIGABYTE ürün teknik özelliklerinde ve ürün ile ilgili bilgilerde haber vermeden önce değişiklik yapma hakkını saklı tutar.
      * Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
      * Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
      * Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
