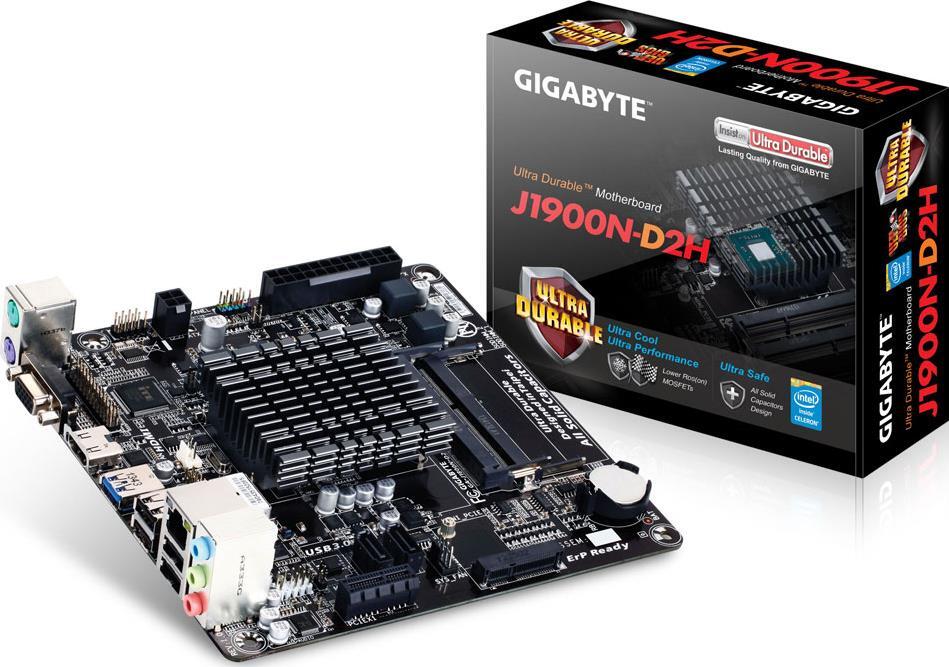

GA-J1900N-D2H (Rev. 1.x/2.x)
Intel® Celeron™ J1900
Teknik Özellikler
- İşlemci
- Built in with an Intel® Quad-Core Celeron® J1900 SoC (2.0 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. - 2 MB Cache
- Built in with an Intel® Quad-Core Celeron® J1900 SoC (2.0 GHz)
- Bellek
- 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket. - Dual channel memory architecture
- Support for DDR3/-L 1333 MHz memory modules
- Support for non-ECC memory modules
- 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
- Dahili Grafik
- Integrated in the SoC:
- 1 x D-Sub port, supporting a maximum resolution of 2560x1600
- 1 x HDMI port, supporting a maximum resolution of 1920x1080
- Ses Desteği
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Support for S/PDIF Out
- LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)
- Genişleme Yuvaları
- 1 x PCI Express x1 slot
- 1 x Mini PCI Express x1 slot
* This socket does not support USB Bluetooth signals.
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- Depolama Ara yüzü
- SoC:
- 2 x SATA 3Gb/s connectors
- USB
- SoC:
- 1 x USB 3.0/2.0 port on the back panel
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Dahili G/Ç Bağlantı Noktaları
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 3Gb/s connectors
- 1 x USB 2.0/1.1 header
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x serial port header
- 1 x parallel port header
- 1 x S/PDIF Out header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
- Arka Panel G/Ç
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 1 x USB 3.0/2.0 port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
- G/Ç Denetleyicisi
- iTE® I/O Controller Chip
- Donanım İzleme
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Diğer Özellikler
- Support for @BIOS
- Support for Xpress Install
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. - Support for ON/OFF Charge
- Bundled Software
- Norton® Internet Security (OEM version)
- Intel® Smart Connect Technology
- İşletim Sistemi
- Support for Windows 10/8.1/8/7
- Form Faktör
- Mini-ITX Form Factor; 17.0cm x 17.0cm
- Not
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- İşlemci
- Built in with an Intel® Quad-Core Celeron® J1900 SoC (2.0 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. - 2 MB Cache
- Built in with an Intel® Quad-Core Celeron® J1900 SoC (2.0 GHz)
- Bellek
- 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket. - Dual channel memory architecture
- Support for DDR3/-L 1333 MHz memory modules
- Support for non-ECC memory modules
- 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
- Dahili Grafik
- Integrated in the SoC:
- 1 x D-Sub port, supporting a maximum resolution of 2560x1600
- 1 x HDMI port, supporting a maximum resolution of 1920x1080
- Ses Desteği
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Support for S/PDIF Out
- LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)
- Genişleme Yuvaları
- 1 x PCI Express x1 slot
- 1 x Mini PCI Express x1 slot
* This socket does not support USB Bluetooth signals.
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- Depolama Ara yüzü
- SoC:
- 2 x SATA 3Gb/s connectors
- USB
- SoC:
- 1 x USB 3.0/2.0 port on the back panel
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Dahili G/Ç Bağlantı Noktaları
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 3Gb/s connectors
- 1 x USB 2.0/1.1 header
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x serial port header
- 1 x parallel port header
- 1 x S/PDIF Out header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
- Arka Panel G/Ç
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 1 x USB 3.0/2.0 port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
- G/Ç Denetleyicisi
- iTE® I/O Controller Chip
- Donanım İzleme
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Diğer Özellikler
- Support for @BIOS
- Support for Xpress Install
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. - Support for ON/OFF Charge
- Bundled Software
- Norton® Internet Security (OEM version)
- Intel® Smart Connect Technology
- İşletim Sistemi
- Support for Windows 10/8.1/8/7
- Form Faktör
- Mini-ITX Form Factor; 17.0cm x 17.0cm
- Not
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* HDMI, HDMI High-Definition Multimedia Interface terimleri, HDMI Ticari takdim şekli ve HDMI Logoları HDMI Licensing Administrator, Inc.’nin ticari markaları veya tescilli ticari markalarıdır.
* Burada sağlanan tüm materyaller yalnızca referans içindir. GIGABYTE ürün teknik özelliklerinde ve ürün ile ilgili bilgilerde haber vermeden önce değişiklik yapma hakkını saklı tutar.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
