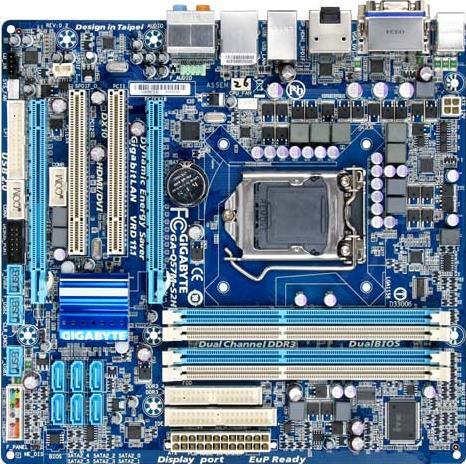

GA-Q57M-S2H (Rev. 1.0)

Intel® Q57 chipset
TanıtımTeknik ÖzelliklerDestekHaberler/ÖdüllerLearn MoreWhere to Buy

Teknik Özellikler

  • İşlemci
    1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
    2. L3 cache varies with CPU
  • Yongaseti
    1. Intel® Q57 Express Chipset
  • Bellek
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Dahili Grafik
  • Integrated in the Chipset:
    1. 1 x D-Sub port (Note 2)
    2. 1 x DVI-D port (Note 2)(Note 3)(Note 4)
    3. 1 x HDMI port (Note 2)(Note 4)
    4. 1 x DisplayPort (Note 2)(Note 4)
  • Ses Desteği
    1. Realtek ALC888B codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. 1 x Intel 82578 chip (10/100/1000 Mbit)
  • Genişleme Yuvaları
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
      (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 2 x PCI slots
  • Çoklu Grafik Teknolojisi
    1. Support for ATI CrossFireX™ technology (Note 6)
  • Depolama Ara yüzü
  • Chipset:
    1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
    JMicron JMB368 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • Integrated in the Chipset:
    1. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
  • Dahili G/Ç Bağlantı Noktaları
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF In header
    12. 1 x S/PDIF Out header
    13. 3 x USB 2.0/1.1 headers
    14. 1 x debug card header
    15. 1 x parallel port header
    16. 2 x serial port headers
    17. 1 x clearing CMOS jumper
    18. 1 x jumper for enabling Intel Management Engine Feature
  • Arka Panel G/Ç
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port (Note 2)
    4. 1 x DVI-D port (Note 2)(Note 3)(Note 4)
    5. 1 x optical S/PDIF Out connector
    6. 1 x HDMI port (Note 2)(Note 4)
    7. 1 x DisplayPort (Note 2)(Note 4)
    8. 6 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
  • G/Ç Denetleyicisi
    1. iTE IT8720 chip
  • Donanım İzleme
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control (Note 7)
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AWARD BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Diğer Özellikler
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 8)
    8. Support for Smart TPM
    9. Support Auto Green
    10. Support for eXtreme Hard Drive
    11. Support for Q-Share
    12. Support for Smart Recovery
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • İşletim Sistemi
    1. Support for Microsoft® Windows 7/Vista/XP
  • Form Faktör
    1. Micro ATX Form Factor; 24.4cm x 23.2cm
  • Not:
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) To use the onboard D-Sub, DVI-D, HDMI, and DisplayPort ports, you must install an Intel CPU with integrated graphics.
    (Note 3) The DVI-D port does not support D-Sub connection by adapter.
    (Note 4) You can use only one of the onboard digital graphics ports (DisplayPort, HDMI, and DVI-D) for out¬put when in the BIOS Setup program or when during the POST screens.
    (Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
    (Note 7) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
    (Note 8) Available functions in EasyTune may differ by motherboard model.
  • Not
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • İşlemci
      1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
      2. L3 cache varies with CPU
    • Yongaseti
      1. Intel® Q57 Express Chipset
    • Bellek
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
      2. Dual channel memory architecture
      3. Support for DDR3 1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • Dahili Grafik
    • Integrated in the Chipset:
      1. 1 x D-Sub port (Note 2)
      2. 1 x DVI-D port (Note 2)(Note 3)(Note 4)
      3. 1 x HDMI port (Note 2)(Note 4)
      4. 1 x DisplayPort (Note 2)(Note 4)
    • Ses Desteği
      1. Realtek ALC888B codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. 1 x Intel 82578 chip (10/100/1000 Mbit)
    • Genişleme Yuvaları
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
        (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 2 x PCI slots
    • Çoklu Grafik Teknolojisi
      1. Support for ATI CrossFireX™ technology (Note 6)
    • Depolama Ara yüzü
    • Chipset:
      1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
      2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      JMicron JMB368 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      iTE IT8720 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
    • Integrated in the Chipset:
      1. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
    • Dahili G/Ç Bağlantı Noktaları
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 6 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x system fan header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF In header
      12. 1 x S/PDIF Out header
      13. 3 x USB 2.0/1.1 headers
      14. 1 x debug card header
      15. 1 x parallel port header
      16. 2 x serial port headers
      17. 1 x clearing CMOS jumper
      18. 1 x jumper for enabling Intel Management Engine Feature
    • Arka Panel G/Ç
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port (Note 2)
      4. 1 x DVI-D port (Note 2)(Note 3)(Note 4)
      5. 1 x optical S/PDIF Out connector
      6. 1 x HDMI port (Note 2)(Note 4)
      7. 1 x DisplayPort (Note 2)(Note 4)
      8. 6 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
    • G/Ç Denetleyicisi
      1. iTE IT8720 chip
    • Donanım İzleme
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU fan speed control (Note 7)
    • BIOS
      1. 1 x 64 Mbit flash
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Diğer Özellikler
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune (Note 8)
      8. Support for Smart TPM
      9. Support Auto Green
      10. Support for eXtreme Hard Drive
      11. Support for Q-Share
      12. Support for Smart Recovery
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • İşletim Sistemi
      1. Support for Microsoft® Windows 7/Vista/XP
    • Form Faktör
      1. Micro ATX Form Factor; 24.4cm x 23.2cm
    • Not:
    • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      (Note 2) To use the onboard D-Sub, DVI-D, HDMI, and DisplayPort ports, you must install an Intel CPU with integrated graphics.
      (Note 3) The DVI-D port does not support D-Sub connection by adapter.
      (Note 4) You can use only one of the onboard digital graphics ports (DisplayPort, HDMI, and DVI-D) for out¬put when in the BIOS Setup program or when during the POST screens.
      (Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
      (Note 7) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
      (Note 8) Available functions in EasyTune may differ by motherboard model.
    • Not
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
