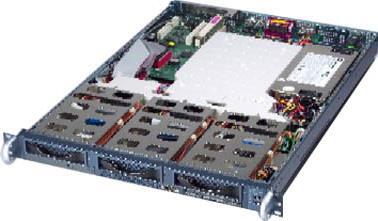

GS-SR113

Legacy | Software updates supported

Rev. 1.0

Dimensions: 19"W x 1.73"H x 23"D (1U)
One Easy-Swap ATA-100 Drive Bay for OS Boot Drive
Two Hot-Swap ATA- 133 Drive Bays with IDE RAID 0, 1
Intel® 845D, ICH2, ATI® Rage XL 8MB
Intel® P4 Processor (Socket 478/400MHz FSB/2.2GHZ+)
Max. 2GB Un-Buffered (ECC) DDR-266 Memory in 2 Angle DIMM Slots
Dual Intel® 82550PM 10/100Mbps Fast Ethernet with Advanced Software Functions
1 PCI 32-Bit/33MHz Full-Height Slot
Promise® PDC20276 Dual ATA-133 Channels with IDE RAID 0,1
Winbond® W83910F BMC Chip with IPMI 1.0 Support

SPECIFICATIONS

CPU

Supports Single Intel^® P4 Northwood Processor up to 2.20 Ghz and above
400 Mhz FSB

Chipset

Intel^® Brookdale 845 D (MCH+ICH2)

LAN

Dual Intel^® 82550PM Ethernet controllers
Supports Wake on LAN (WOL)
Adapter Fault Tolerance (AFT)
Adaptive Load Balancing (ALB)
Fast EtherChannel (FEC)

Video

Integrated ATI Rage XL graphics acceleration with 8 MB RAM

RAID

Supports Raid 0,1

Expansion Slots

1 full-length 32bit/33 MHz PCI slot

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.

SUPPORT

Downloads

Driver
BIOS

Manual
Support List

Online Support

Driver

BIOS

QVL

All
All
Windows XP 32bit
Windows NT
Windows 2000

Chipset Update Patch

Version

Size

Date

Latest Intel 845 chipset driver
Supports up to 152GB
Supports 48bit HDD with installing Windows 2000

Version : 1.1

1.81 MB

Jun 26, 2002

Download

OS: Windows 2000

Latest Intel 845 chipset driver
Supports up to 152GB
Supports 48bit HDD with installing Windows 2000

Version : 3.11

1.5 MB

Jun 26, 2002

Download

OS: Windows 2000

Host RAID

Version

Size

Date

Promise Host RAID Driver

Version : 1.31.0.57

1.68 MB

Nov 30, 2006

Download

OS: Windows 2000,Windows XP 32bit

LAN

Version

Size

Date

Intel LAN Driver

Version : 6.1

Feb 13, 2006

Download

OS: Windows NT,Windows 2000

RAID IDE

Version

Size

Date

Red Hat 7.3 driver for Promise^® PDC 20267/20276Supports single proceesor

Version : 1.02.0.22

0.57 MB

Nov 18, 2009

Download

VGA

Version

Size

Date

VGA Driver
For Windows 2000 operating system

Version : J5.23.0_T02

5.9 MB

Jun 12, 2006

Download

OS: Windows 2000

VGA Driver
For NT4 operating system

Version : J5.23.0_T02

5.64 MB

Jun 12, 2006

Download

OS: Windows NT

BIOS

Description

Version

Size

Date

BIOS release
For GS-SR113 system

Version : F5

0.4 MB

Mar 18, 2003

Download

Support Dual-Lan card (IDSEL 26, 27) on PCI slot-1

Version : F3

0.39 MB

Dec 05, 2002

Download

Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.

Manual

Description

Version

Size

Date

Release version

Version : 1.0

0.45 MB

Jul 30, 2002

Download
