View complete spec list
Power Supply Comparison
- Quick Navigate
- Model
Model

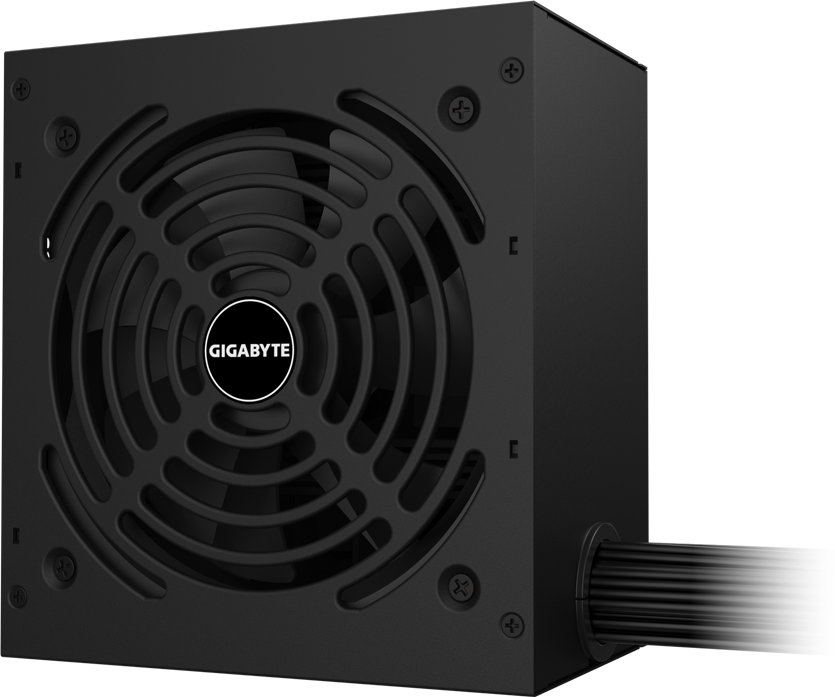

GP-P650G- Type
Type
Intel Form Factor ATX 12V- PFC
PFC
Active PFC(>0.9 typical)- Input Voltage
Input Voltage
100-240 Vac(full range)- Input Current
Input Current
9-4A- Input Frequency
Input Frequency
60-50 Hz- Output Capacity
Output Capacity
650W- Dimensions
Dimensions
150 x 140 x 86 mm- Fan Type
Fan Type
120mm Hydraulic Bearing (HYB) Fan- 80 PLUS
80 PLUS
Gold- Efficiency
Efficiency
90% at typical load- MTBF
MTBF
>100,000 hours- Protections
Protections
OVP/OPP/SCP/UVP/OCP/OTP- Power Good Signal
Power Good Signal
100-500ms- Hold Up Time
Hold Up Time
>16ms- Cable Type
Cable Type
Flat, All black- Connectors
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
SATA x 6 : 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1
