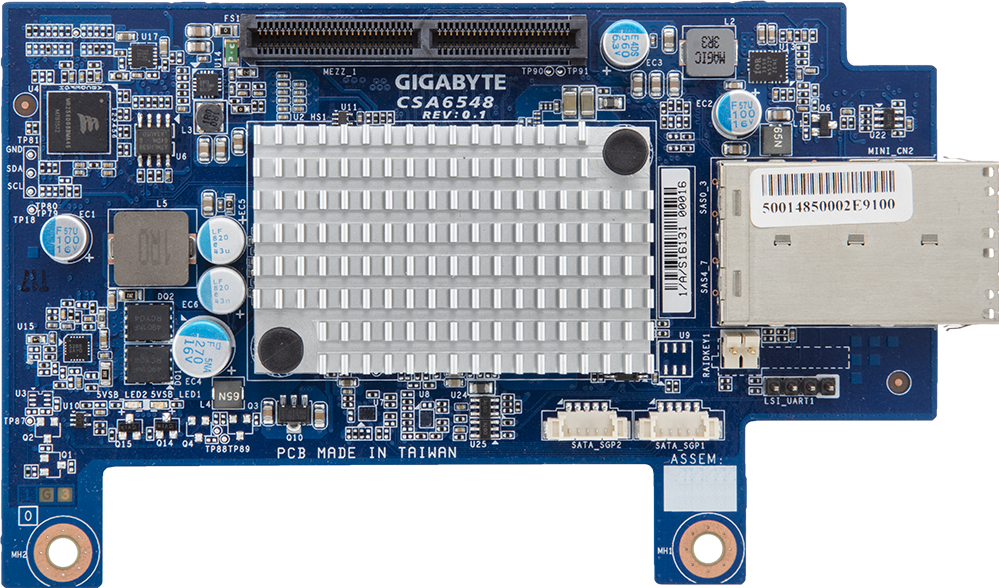

CSA6548 (rev. 1.0)
Broadcom SAS3008 HBA
Broadcom SAS3008 HBA - External type
- 2 x external Mini-SAS HD SFF8644 connectors
- Up to 14 x physical devices supported via SAS expander
- Broadcom® SAS3008 controller
- RAID 0/1/1E/10
- Mezzanine type (3.0 x8 bus)
- 130 x 81.28 mm
Request a Quote
1/2
SPECIFICATIONS
Ports
2 x external Mini-SAS HD SFF8644 connectors
Up to 1024 physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Up to 1024 physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3008
RAID
RAID 0/1/1E/10
Integrated RAID (IR)
- 14 spread across 2 volumes
RAID 0 10 per volume
RAID 1 2 per volume
RAID 1E 10 per volume
RAID 10 10 per volume
IT Mode: Up to 1024 physical devices supported
Integrated RAID (IR)
- 14 spread across 2 volumes
RAID 0 10 per volume
RAID 1 2 per volume
RAID 1E 10 per volume
RAID 10 10 per volume
IT Mode: Up to 1024 physical devices supported
Interface
Mezzanine type (3.0 x8 bus)
Dimension
130 x 81.28 mm
Format
Mezzanine type
Ordering Information
9CSA6548NR-00
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
Includes
-
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
- Choose your OS
- Choose your OS
- Windows Server 2012 R2 64bit
- Windows Server 2008 R2 64bit
- Windows 8.1 64bit
- Windows 7 64bit
- Windows 10 64bit
- VMware 6.0 U2
- Ubuntu 14.04 LTS x64
- SLES 12 x64
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x64
SAS
SAS
Version
Size
Date
LSI® SAS3008 Driver
Version : 1.0
68.39 MB
2016/04/28
OS: Windows 7 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit,Ubuntu 14.04 LTS x64,RHEL 6.7 x64,RHEL 7.2 x64,SLES 11.4 x64,SLES 12 x64,VMware 6.0 U2
