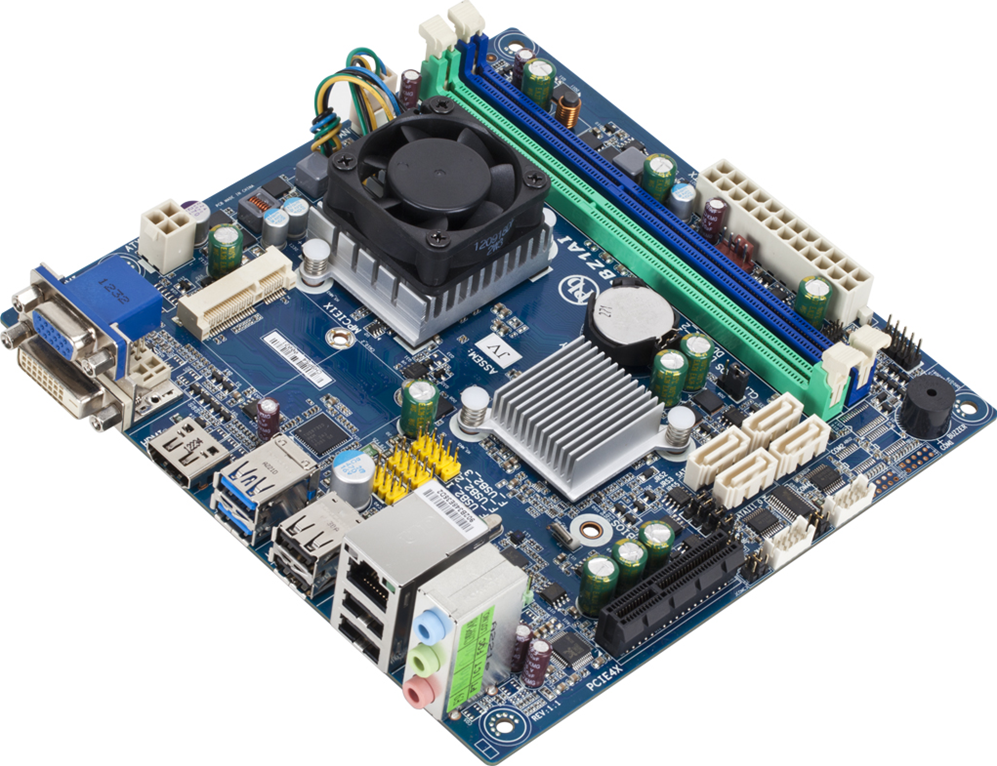

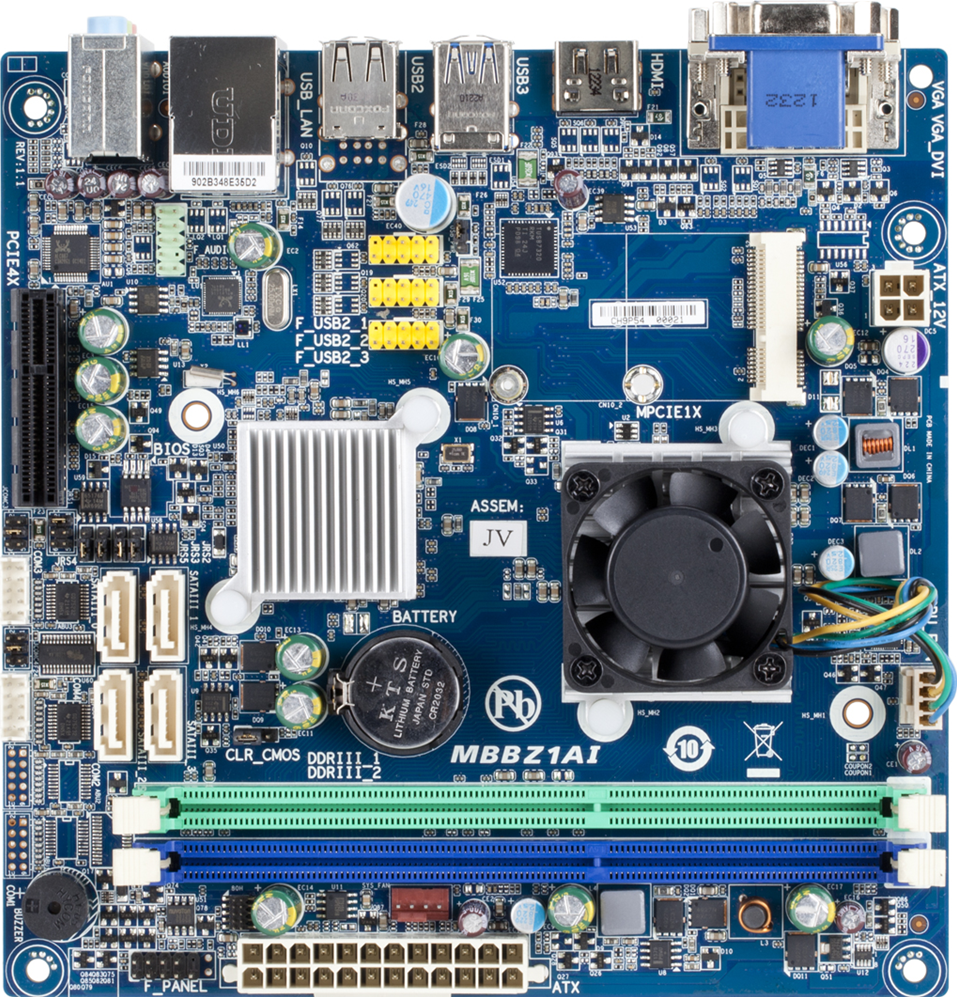

MBBZ1AI
Legacy | Firmware updates supportedAMD® A50M chipset
- Mini-ITX form factor
- AMD® Fusion™ T56N APU, 1.65GHz
- 2 x DIMM, up to 16GB 1333MHz
- 1 x GbE LAN port (Realtek® RTL8111E)
- 4 x COM ports (4 x internal)
- 4 x SATA III 6Gb/s ports
SpecificationsSupport
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
AMD® Fusion™ T56N
2 cores / 2 threads
1.65 GHz
18W max. TDP
2 cores / 2 threads
1.65 GHz
18W max. TDP
Socket
1 x FT1
Chipset
AMD® A50M
Memory
2 x DIMM DDR3 slots
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333 MHz
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333 MHz
LAN
1 x GbE LAN port (Realtek® RTL8111E)
Video
AMD® Radeon™ 6310
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SATA
4 x SATA III 6Gb/s ports
RAID
-
Expansion Slots
1 x PCIe x4 (Gen3 x4 bus) slot
1 x Full-size Mini-PCIe slot
1 x Full-size Mini-PCIe slot
Internal I/O
2 x USB 2.0 headers
2 x USB 2.0 (5V/12V)
2 x Serial headers
1 x Serial (232/422/485 & RI/5V/12V) header
1 x Serial (RI/5V/12V) header
4 x SATA III 6Gb/s ports
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x Front panel header
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
2 x USB 2.0 (5V/12V)
2 x Serial headers
1 x Serial (232/422/485 & RI/5V/12V) header
1 x Serial (RI/5V/12V) header
4 x SATA III 6Gb/s ports
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x Front panel header
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
Rear I/O
2 x USB3.0
4 x USB2.0
1 x HDMI
1 x VGA
1 x DVI
1 x MIC-In
1 x Line-Out
1 x Line-In
1 x RJ45
4 x USB2.0
1 x HDMI
1 x VGA
1 x DVI
1 x MIC-In
1 x Line-Out
1 x Line-In
1 x RJ45
TPM
-
OS Compatibility
Windows 7 (32/64bit)
PSU Connectors
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
1 x 24-pin ATX main power connector
Power Supply
-
Packaging Content
-
Ordering Information
9MBBZ1AINR-SI
