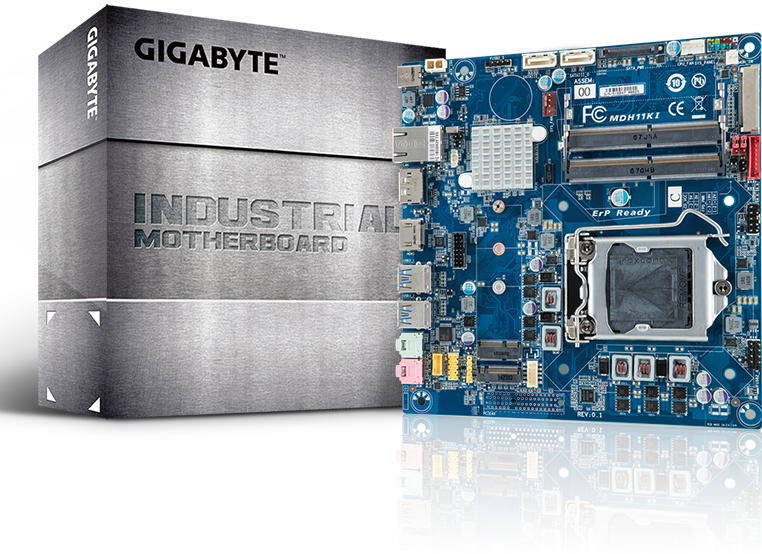

• GIGABYTE Thin Mini-ITX Standards
    GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs.
  • M.2 Onboard Connector
    Providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gbps data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 6Gbps storage devices.
  • SuperSpeed USB 3.0
    With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
  • DisplayPort Support
    Featuring DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • High-Definition Everywhere
    HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
Thin Mini-ITX
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Supports for Intel® Core™ i7 processors
                       Intel® Core™ i5 processors
                       Intel® Core™ i3 processors
                       Intel® Pentium® processors
                       Intel® Celeron® processors
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
LAN
1 x GbE LAN port (Realtek RTL8111HS-CG)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
Audio
Realtek ALC887 codec
High Definition Audio
SATA
2 x SATA 6Gb/s ports
RAID
-
Expansion Slots
1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe 2.0 x4 signal
- Supports NGFF-2260/2280 cards

1 x M.2 slot:
- E-key
- PCIe 2.0 x1 signal
- Supports NGFF-2230 cards
Internal I/O
1 x 12V power connector
2 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 5 x USB 2.0 ports)
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x COM (RS-232)
Rear I/O
1 x DC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort (v1.2)
1 x HDMI (v1.4)
1 x Line-out
1 x MIC-in
TPM
-
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 (x32/x64)

- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
Packaging Content
1 x SATA power cable (370mm) (P/N: 25CRI-270320-D3R)
1 x 25.54mm I/O shield (P/N: 12AIO-H77TN3-00R)
1 x 44.45mm I/O shield (P/N: 12AIO-H77TN4-00R)
Ordering Information
9MDH11KINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • All
  • All
  • Windows 8.1 64bit
  • Windows 7 64bit
  • Windows 7 32bit
  • Windows 10 64bit
Chipset
Chipset
Version
Size
Date
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology
Note: Please install Microsoft .Net Framework 4.5 first
Version : 14.6.0.1029
12.78 MB
2015/11/19
OS: Windows 7 32bit,Windows 7 64bit,Windows 8.1 64bit,Windows 10 64bit
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.

  • All
  • All
  • Windows 7 64bit
  • Windows 7 32bit
Utility
Description
Version
Size
Date
Windows 7 USB Installation Tool & SOP
(Note) Support Intel 100 series & Braswell series motherboards.
Version : B16.0120.1
21.59 MB
2016/02/04
OS: Windows 7 32bit,Windows 7 64bit
