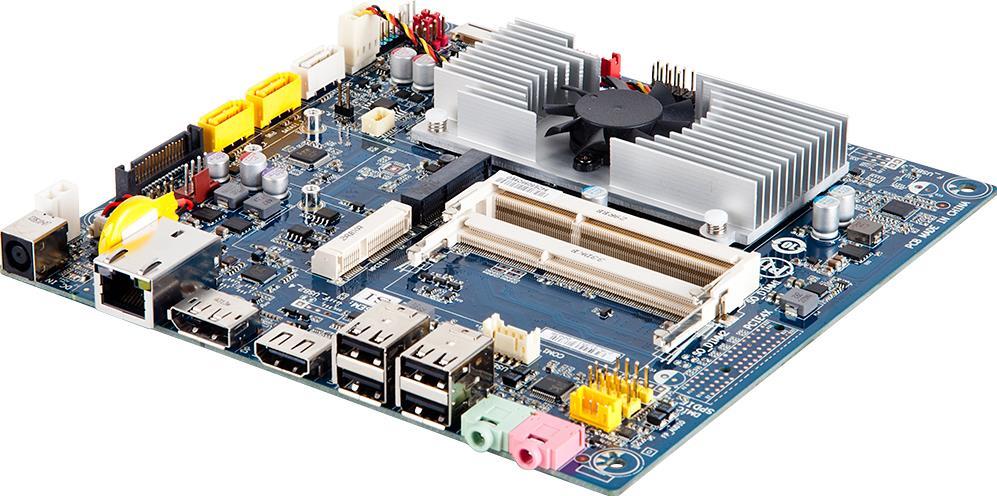

MRNM7AILegacy | Firmware updates supported
Intel® NM70 chipset
- Thin Mini-ITX form factor
- Intel® Celeron™ 1037U 1.8GHz
- 2 x SO-DIMM, up to 16GB 1600MHz
- 1 x GbE LAN port (Realtek® RTL8111E)
- 1 x COM port (1 x internal)
- 1 x SATA III 6Gb/s port
- 2 x SATA II 3Gb/s ports
- Specifications
- Support
Specifications
Form Factor
Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield
170W x 170D (mm)
2.5cm thick I/O shield
CPU
Intel® Celeron® 1037U
2 cores / 2 threads
1.8 GHz
17W max. TDP
2 cores / 2 threads
1.8 GHz
17W max. TDP
Socket
1 x BGA 1023
Chipset
Intel® NM70
Memory
2 x SO-DIMM DDR3 slots
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333 MHz
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333 MHz
LAN
1 x GbE LAN port (Realtek® RTL8111E)
Video
Intel® HD Graphics
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SATA
1 x SATA III 6Gb/s port
2 x SATA II 3Gb/s ports
2 x SATA II 3Gb/s ports
RAID
-
Expansion Slots
1 x PCIe x4 (Gen3 x4 bus) slot (25W only)
1 x mSATA slot
1 x Half-size Mini-PCIe slot
1 x mSATA slot
1 x Half-size Mini-PCIe slot
Internal I/O
1 x 2-pin ATX 19V power connector
1 x USB 2.0 headers
1 x Digital MIC
1 x LVDS 18/ 24bit
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x SATA power (15-pin)
1 x Front panel header
1 x Back light control
1 x Speaker
1 x VGA header
1 x Serial header
1 x MON SW
1 x USB 2.0 headers
1 x Digital MIC
1 x LVDS 18/ 24bit
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x SATA power (15-pin)
1 x Front panel header
1 x Back light control
1 x Speaker
1 x VGA header
1 x Serial header
1 x MON SW
Rear I/O
4 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ45
1 x Line-Out
1 x Mic-In
1 x DC-In
1 x HDMI
1 x DisplayPort
1 x RJ45
1 x Line-Out
1 x Mic-In
1 x DC-In
TPM
-
OS Compatibility
Windows 7 (32/64bit)
Windows 8 (32/64bit)
Windows 8 (32/64bit)
PSU Connectors
1 x DC-In 12V/19V
1 x 2-pin ATX 19V power connector
1 x 2-pin ATX 19V power connector
Power Supply
DC-In 19V or 12V
Adapters available in option:
Adapters available in option:
- 90W, 19V, 4.7A, DC plug (74x51mm)
Packaging Content
-
Ordering Information
9MRNM7AINR-SI
