MZBSWIP (rev. 2.0)
Intel® Celeron® N3060
- 101(W) x 135(D) mm small form factor
- Intel® Celeron® processor N3060
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN ports (Realtek RTL8111HS)
- 32GB onboard eMMC memory
- 1 x Full-size Mini-PCIe for 3G module or mSATA storage
- 1 x Half-size Mini-PCIe for WiFi+BT module
- 1 x SDXC card slot
- Windows & Android 5.1 support
-
14nm Intel® Celeron® ProcessorBased on the Airmont microarchitecture and Intel's leading tri-gate 14nm process, this System on a Chip processor is designed to drive both computing and graphics performance in scenarios that are particularly sensitive to cost and energy consumption. With a maximum power envelope of just 6W, this processor is an ideal solution to drive processing and graphics performance in industrial computing environments.
-
Built-in 32GB Embedded MemoryThe most widely available standard non-volatile memory devices to further aid the test and remote update process for customers.
-
Dual Gigabit LANExperience the flexibility and convenience of the integrated Dual Lan function.
-
SuperSpeed USB 3.0With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
-
High-Definition EverywhereHDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Proprietary
101(W) x 135(D) mm
101(W) x 135(D) mm
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Celeron processor N3060
2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
Socket
1 x BGA 1170
Memory
2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Flash Memory
32GB eMMC
LAN
2 x GbE LAN ports (Realtek RTL8111HS)
Video
Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Audio
Realtek ALC255 controller
Supports 2/4/5.1/7.1 channel configurations via HDMI
Supports 2/4/5.1/7.1 channel configurations via HDMI
SATA
1 x SATA 6Gb/s port
Expansion Slots
1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size Mini-PCIe slot (for WiFi+BT module)
WiFi & 3G wireless module in option
1 x Half-size Mini-PCIe slot (for WiFi+BT module)
WiFi & 3G wireless module in option
Internal I/O
1 x SIM card slot
1 x 12V power connector
1 x SATA 6Gb/s with power connector
1 x 80H connector
1 x eDP connector
1 x USB 2.0 header
2 x Serial headers
1 x 8-pin GPIO connector
1 x SPI header
1 x TPM header
1 x 5V power header
1 x Power LED header
1 x I2C & SMbus header
1 x 12V power connector
1 x SATA 6Gb/s with power connector
1 x 80H connector
1 x eDP connector
1 x USB 2.0 header
2 x Serial headers
1 x 8-pin GPIO connector
1 x SPI header
1 x TPM header
1 x 5V power header
1 x Power LED header
1 x I2C & SMbus header

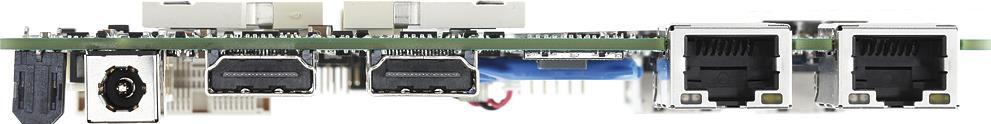

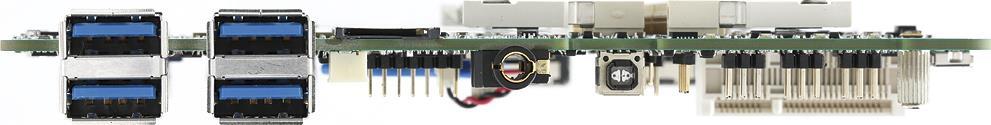

Rear I/O
1 x DC-in
2 x HDMI v1.4b
2 x RJ45
4 x USB 3.0
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) 1 x SDXC card slot
1 x Line-out / MIC-in
*[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
2 x HDMI v1.4b
2 x RJ45
4 x USB 3.0
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) 1 x SDXC card slot
1 x Line-out / MIC-in
*[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
TPM
TPM header
OS Compatibility
Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
1 x 12V power connector
Packaging Content
1 X MZBSWIP
Ordering Information
9MZBSWIPNR-SI
40 units per carton
Packaging dimensions: 527 x 348 x 211 mm
NOTE: Default shipping configuration is motherboard only without heatsink, please contact region sales if heatsink is needed
40 units per carton
Packaging dimensions: 527 x 348 x 211 mm
NOTE: Default shipping configuration is motherboard only without heatsink, please contact region sales if heatsink is needed
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
