G242-Z11 (rev. 100)
(rev.A00)

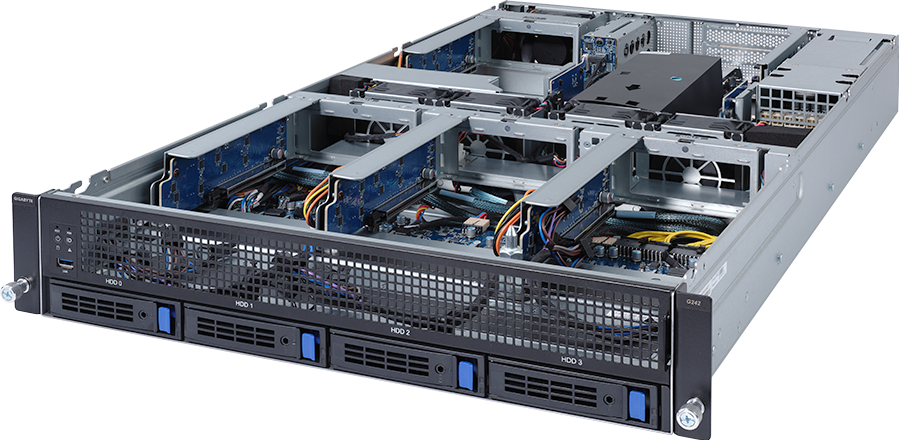

HPC Server - 2U UP 4 x GPU Gen4 Server
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
Application:
- Up to 4 x NVIDIA ® PCIe Gen4 GPU cards
- NVIDIA-Certified system for scalability, functionality, security, and performance
- Single AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 8 x DIMMs
- 1 x dedicated management port
- 4 x SATA 3.5" hot-swappable HDD/SSD bays in front side
- 2 x 2.5" Gen4 U.2/SAS/SATA hot-swappable HDD/SSD bays in rear side
- 2 x PCIe Gen4 expansion slots
- 1 x OCP 3.0 Gen4 x16 mezzanine slot
- 2 x 80 PLUS Platinum 1600W redundant PSU
Request a Quote
1/5
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
438 x 87.5 x 820
Motherboard
MZ12-HD3
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Compatible with AMD EPYC™ 7001 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Compatible with AMD EPYC™ 7001 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
Front side: 4 x 3.5" SATA hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SATA devices supported only
Rear side: 2 x 2.5" Gen4 U.2/SAS/SATA hybrid hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
2.5" HDD/SSD supported
SATA devices supported only
Rear side: 2 x 2.5" Gen4 U.2/SAS/SATA hybrid hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SAS
Depend on SAS Card
RAID
N/A
Peripheral Drives
N/A
Expansion Slots
4 x PCIe x16 slots (Gen4 x16 bus) for GPU cards
Riser Card CRSG120:
- 1 x PCIe x16 slot (Gen4 x16 or x8 bus), FHHL
- 1 x PCIe x8 slots (Gen4 x0 or x8 bus), FHHL
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Riser Card CRSG120:
- 1 x PCIe x16 slot (Gen4 x16 or x8 bus), FHHL
- 1 x PCIe x8 slots (Gen4 x0 or x8 bus), FHHL
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header

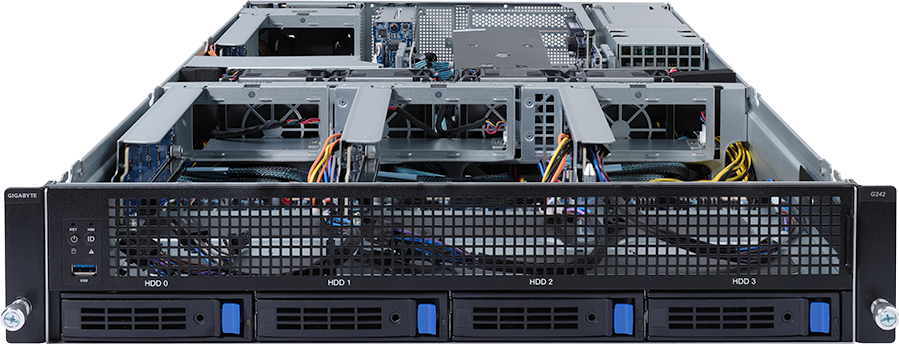

Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

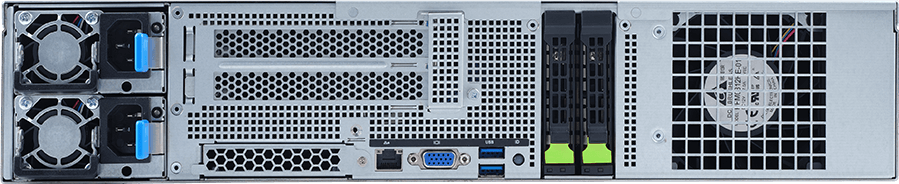

Rear I/O
2 x USB 3.0
1 x VGA
1 x MLAN
1 x ID LED
1 x VGA
1 x MLAN
1 x ID LED
Backplane I/O
Front side_CBPG041: 4 x SATA/SAS ports
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V or 240Vdc Input
+12V/ 133A +12Vsb/ 2.5A
+12V/ 133A +12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G242-Z11
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG242Z11MR-00
- Motherboard: 9MZ12HD3NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Riser Card: 9CRSG02CNR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
- Motherboard: 9MZ12HD3NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Riser Card: 9CRSG02CNR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
