R164-AG2-AAJ1

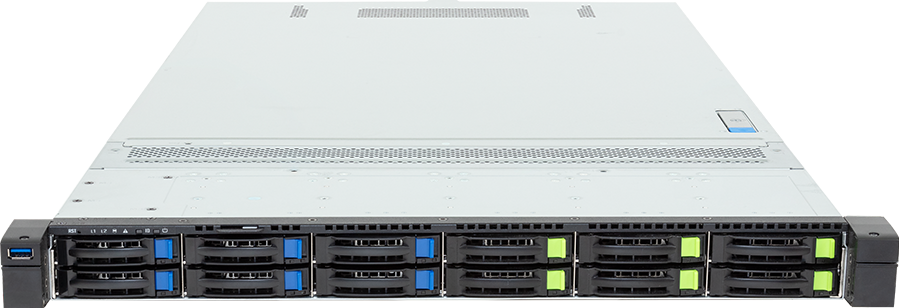

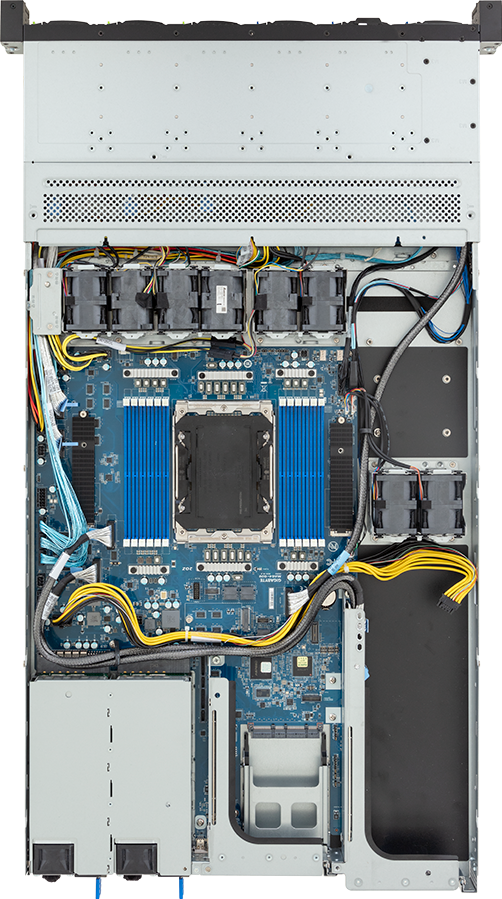

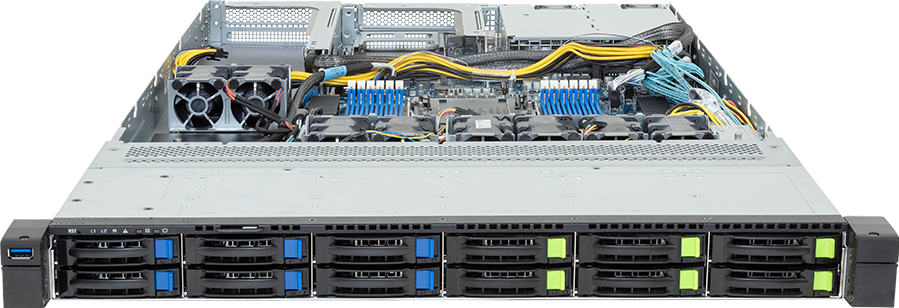

Rack Server - Intel® Xeon® 6 Processors - 1U UP 1 x PCIe Gen5 GPU
  • Supports 1 x Dual slot Gen5 GPU
  • Single Intel® Xeon® 6 Processors, LGA 7529
  • 12-Channel DDR5 RDIMM / MRDIMM, 12 x DIMMs
  • Dual ROM Architecture
  • 6 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 6 x 2.5" SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen5 x2 interface
  • 1 x M.2 slot with PCIe Gen5 x2 interface, shared with SATA
  • 1 x FHFL PCIe Gen5 x16 slot for GPUs
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 2 x 2000W 80 PLUS Titanium redundant power supply
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
1U
438 x 43.5 x 815
Motherboard
MAG4-GU0
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6900-Series Processors

Single processor, TDP up to 500W
Socket
1 x LGA 7529
Socket BR
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s

[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
Storage
Front hot-swap:
6 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
6 x 2.5" SATA/SAS-4 [1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA [2]

[1] SAS card is required to support SAS drives.
[2] To enable the M.2 slot, please adjust the switch according to the manual for proper support.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Onboard VROC key header
PCIe Expansion Slots
Riser Card CRC1024:
- 1 x FHFL x16 (Gen5 x16), for GPUs
- 1 x FHFL x16 (Gen5 x16) [1]

Riser Card CRS101U:
- 1 x FHHL x16 (Gen5 x16)

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

[1] Blocked when a Dual slot GPU is installed.
Front I/O
1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)
Power Supply
2 x 2000W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 12A, 50/60Hz
- 200-240V ~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1800W/ 200-207V~
+12.2V/ 147.5A
+12Vsb/ 3A
- Max 1900W/ 208-219V~
+12.2V/ 155.7A
+12Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12Vsb/ 3A
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
2 x 40x40x56mm (32,000rpm)
6 x 40x40x56mm (38,000rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1038 x 588 x 238 mm
Packaging Content
1 x R164-AG2-AAJ1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 550mm)
1 x Carrier
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR164AG2DR000AAJ1*
- Motherboard: 9MAG4GU0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-35310E-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1030: 9CFP1030NR-00*
- Backplane board - CBP10C2: 9CBP10C2NR-00*
- Fan module: 25ST2-40562H-A0R
- Fan module: 25ST2-40562O-D0R
- Riser card - CRS101U: 9CRS101UNR-00*
- Riser card - CRC1024: 9CRC1024NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 550mm): 25CRI-550107-Y4R
- Power supply: 25EP0-22000M-L0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
