SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 858
Motherboard
MRQ2-4S0
CPU
3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum 8300 Processors, Intel® Xeon® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 165W
Socket
4 x LGA 4189
Socket P5
Chipset
Intel® C621A Chipset
Memory
Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MHz
LAN
Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported

1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
10 x 2.5" NVMe/SAS/SATA hot-swappable bays

SAS card is required for SAS devices support
SATA
Supported
SAS
Supported via add-on SAS Card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Supports 4 x FHFL Dual slot GPU Cards or 6 x FHFL PCIe HBAs

Riser Card CRS202A:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_1

Riser Card CRS2040:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_3

Riser Card CRS2029:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_2 and CPU_3

1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards
Internal I/O
10 x SlimSAS 8i connectors (Gen3 x8)
1 x M.2 slot
1 x VROC connector

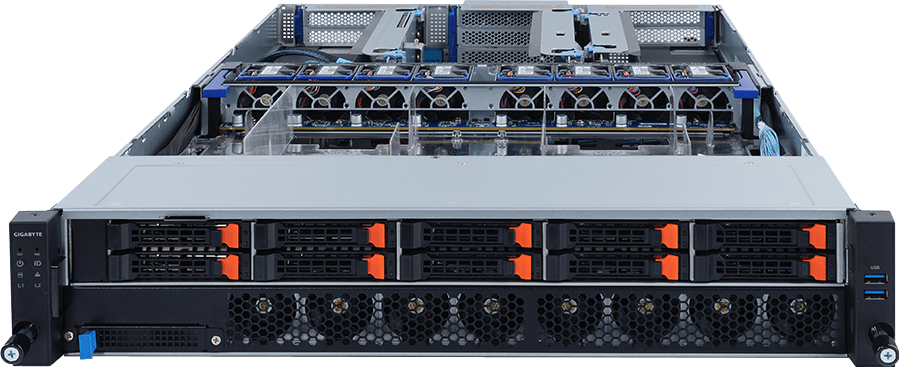

Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

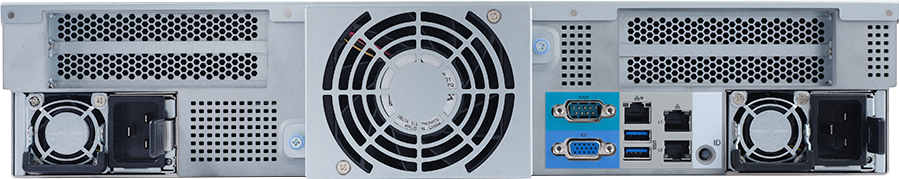

Rear I/O
2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
2 x 3200W 80 PLUS Platinum power supplies

AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz

DC Input:
- 240Vdc/ 16A

DC Output:
- Max 1100W/ 100-127V~
- Max 2434W/ 200-208V~
- Max 2828W/ 214-234V~
- Max 3234W/ 240V~

NOTE: The system power supply requires C19 power cord
NOTE: 2 x 3000W 1+1 redundant supported if without GPU card installed
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility
Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 7.0 U1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
System Fans
16 x 40x40x56mm (29,000rpm)
1 x 80x80x38mm (16,300rpm)
Operating Properties
*Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact GIGABYTE technical support for optimized temperature if installing 4 x GPU cards in system
Packaging Dimensions
1177 x 670 x 291 mm
Packaging Content
1 x R292-4S0
4 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR2924S0MR-00-1*
- Motherboard: 9MRQ24S0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R/25ST2-405625-A0R/25ST2-405626-A0R/25ST2-405627-A0R/25ST2-883827-D0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232000-D0S
