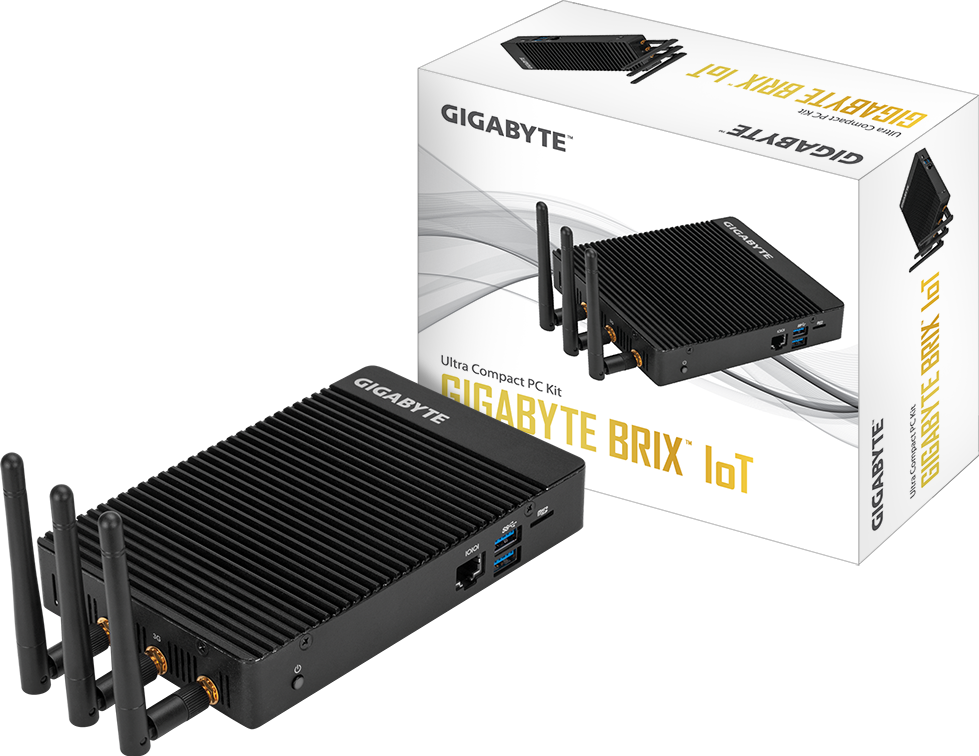

GB-EACE-3450 (Rev. 1.0)

BRIX / Ultra Compact PC kit
OverviewSpecificationsSupportWhere to Buy

Specifications

  • Dimension
  • 27 mm x 105 mm x 165 mm (1.06" x 4.13" x 6.5")
  • Motherboard Size
  • 100 x 150 mm
  • CPU
  • Intel® Celeron® Processor N3450
    up to 2.2GHz, Quad core (TDP 6W)
  • Memory
  • 2 x SO-DIMM DDR3L slots (DDR3L 1.35V)
    1333/1600/1866 MHz
    Max. 8GB
  • LAN
  • Dual Gigabit LAN (Realtek RTL8111HS)
  • Wifi Card
  • Intel® Dual Band Wireless-AC 3165
  • Graphics
  • Intel® HD Graphics 500
  • Audio
  • Realtek ALC255
  • HDMI Resolution (Max.)
  • 3840 x 2160 @ 30 Hz
  • Storage
  • Support 1 x M.2 slot (2280_storage) SATA
    Support 32GB, 64GB eMMC (optional)
  • Expansion Slots
  • 1 x M.2 slot (2280_storage) SATA
    1 x M.2 NGFF 2230 A-E key slot occupied by WiFi+BT card
    1 x Half-size mini-PCIe slot for 3G module
    1 x Micro SIM card connector
  • Front I/O
  • 1 x COM Port (RS232/422/485) via RJ45 connector*
    2 x USB 3.0
    1 x Micro SD card slot (suppport SD 3.0 compliance devices)
    1 x Power Button

    * COM Port Support via RJ45 connector does not support Ring Indicator (RI) function.
  • Rear I/O
  • 1 x Headphone/ Microphone jack
    2 x RJ45
    2 x USB3.0
    2 x HDMI 1.4b 3840 x2160@30Hz
    1 x DC-In
  • Side I/O
  • 1 x Kensington lock slot
    3 x Antenna SMA connector (2 for WIFI, 1 for 3G )
  • TPM
  • 1 x TPM header
  • Power Supply
  • DC 19/12 volt power adapter (Shipment 19V/65W)
  • VESA
  • Bracket included
    Supports 75 x 75 and 100 x 100 mm
  • Support OS
  • WIN10 64bit
  • System Fans
  • Fanless
  • Environment
  • System Environment Operating Temperature: 0°C to +50°C*
    System Storage Temperature: -20°C to +60°C

    * 0℃ to +40℃ : With standard temperature WiFi module / 3G module / M.2(2280) / DDR3L SO-DIMM.
    0℃ to +50℃ : With extended temperature WiFi module / 3G module / M.2(2280) / DDR3L SO-DIMM.
  • Dimension
  • 27 mm x 105 mm x 165 mm (1.06" x 4.13" x 6.5")
  • Motherboard Size
  • 100 x 150 mm
  • CPU
  • Intel® Celeron® Processor N3450
    up to 2.2GHz, Quad core (TDP 6W)
  • Memory
  • 2 x SO-DIMM DDR3L slots (DDR3L 1.35V)
    1333/1600/1866 MHz
    Max. 8GB
  • LAN
  • Dual Gigabit LAN (Realtek RTL8111HS)
  • Wifi Card
  • Intel® Dual Band Wireless-AC 3165
  • Graphics
  • Intel® HD Graphics 500
  • Audio
  • Realtek ALC255
  • HDMI Resolution (Max.)
  • 3840 x 2160 @ 30 Hz
  • Storage
  • Support 1 x M.2 slot (2280_storage) SATA
    Support 32GB, 64GB eMMC (optional)
  • Expansion Slots
  • 1 x M.2 slot (2280_storage) SATA
    1 x M.2 NGFF 2230 A-E key slot occupied by WiFi+BT card
    1 x Half-size mini-PCIe slot for 3G module
    1 x Micro SIM card connector
  • Front I/O
  • 1 x COM Port (RS232/422/485) via RJ45 connector*
    2 x USB 3.0
    1 x Micro SD card slot (suppport SD 3.0 compliance devices)
    1 x Power Button

    * COM Port Support via RJ45 connector does not support Ring Indicator (RI) function.
  • Rear I/O
  • 1 x Headphone/ Microphone jack
    2 x RJ45
    2 x USB3.0
    2 x HDMI 1.4b 3840 x2160@30Hz
    1 x DC-In
  • Side I/O
  • 1 x Kensington lock slot
    3 x Antenna SMA connector (2 for WIFI, 1 for 3G )
  • TPM
  • 1 x TPM header
  • Power Supply
  • DC 19/12 volt power adapter (Shipment 19V/65W)
  • VESA
  • Bracket included
    Supports 75 x 75 and 100 x 100 mm
  • Support OS
  • WIN10 64bit
  • System Fans
  • Fanless
  • Environment
  • System Environment Operating Temperature: 0°C to +50°C*
    System Storage Temperature: -20°C to +60°C

    * 0℃ to +40℃ : With standard temperature WiFi module / 3G module / M.2(2280) / DDR3L SO-DIMM.
    0℃ to +50℃ : With extended temperature WiFi module / 3G module / M.2(2280) / DDR3L SO-DIMM.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
