* Product may vary based on local distribution.

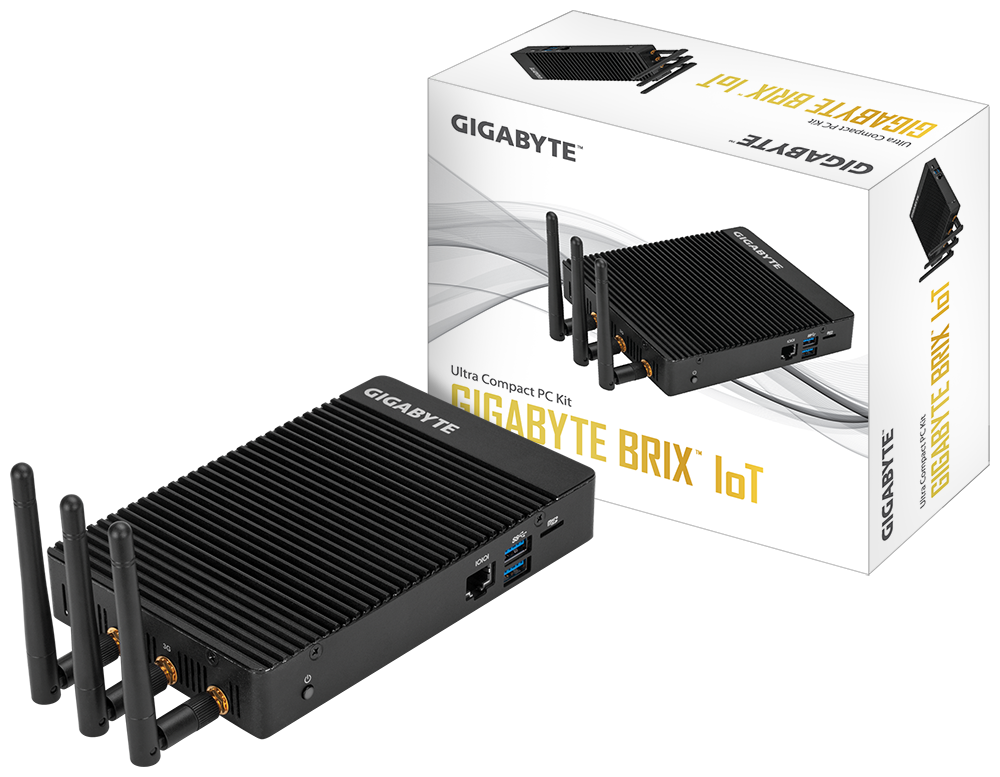

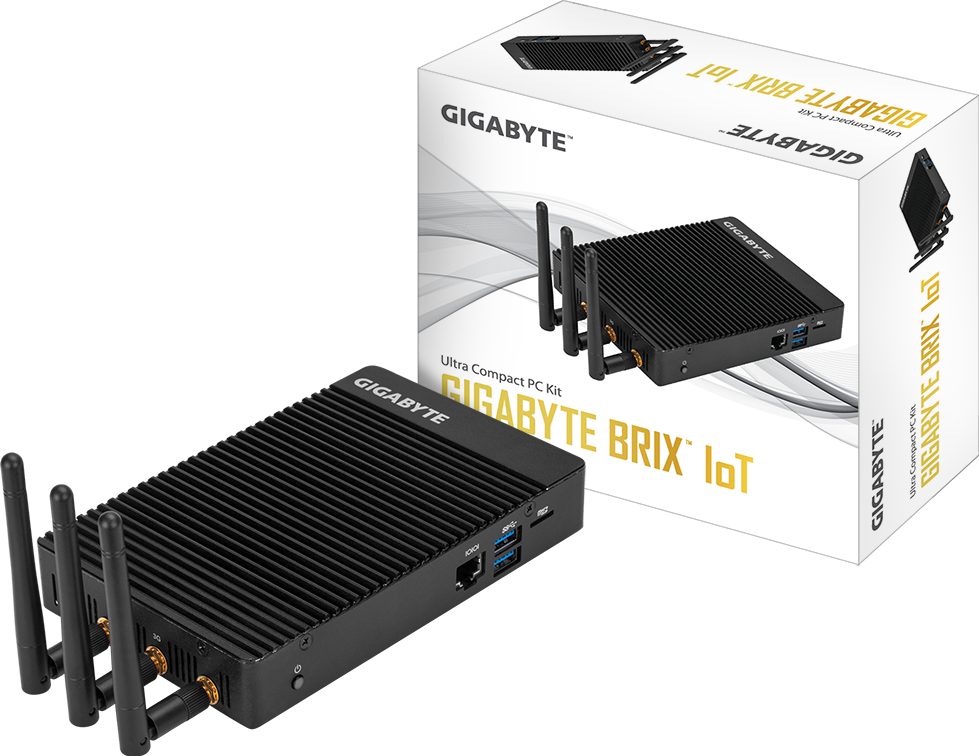

  • Featuring 14nm Intel® Apollo Lake N3450 processor
  • Fanless compact design with 0.46L: 165(W) x 105(D) x 27(H) mm, Weight 738g

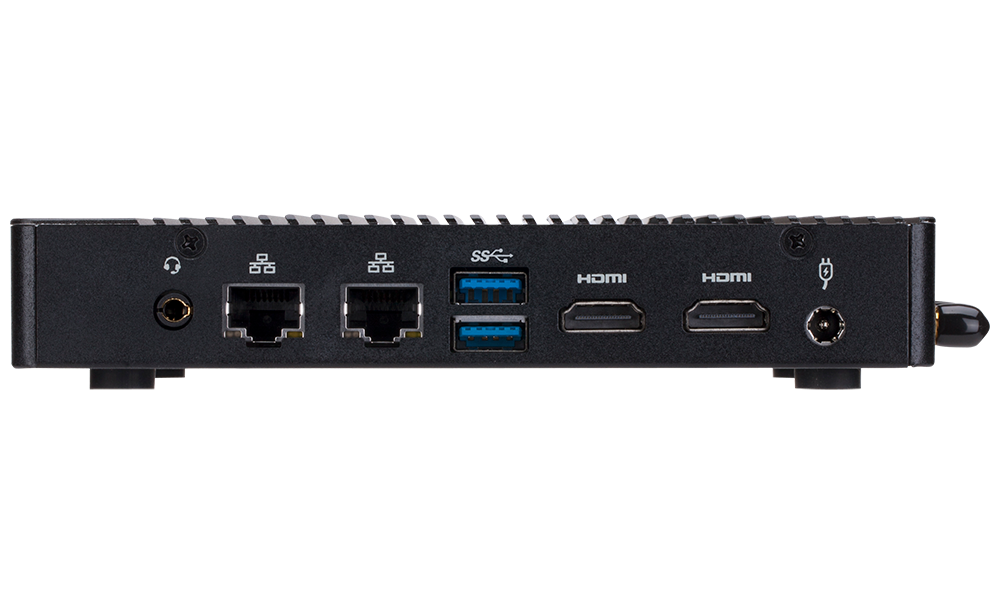

  • Supports 1 x COM Port (RS232/422/485) via RJ45 connector*, 2 x HDMI, 4 x USB3.0

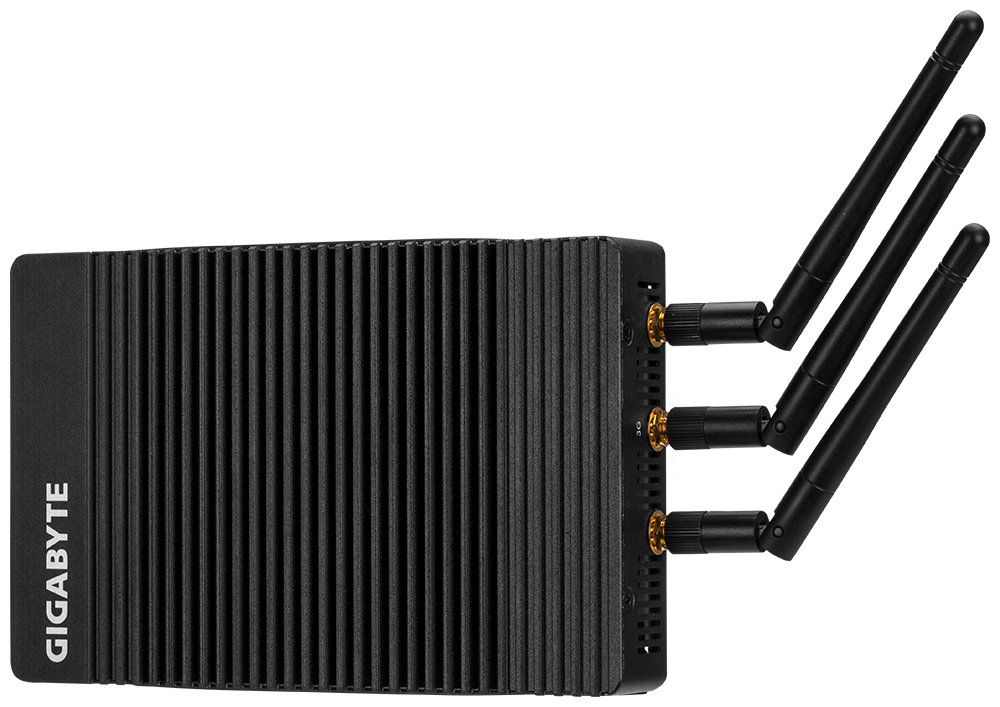

  • Intel® IEEE 802.11ac, Dual Band 1x1 Wi-Fi & Bluetooth 4.2 NGFF M.2 card
  • 1 x mini PCIe slot for 3G module and 1 x Micro SIM card slot
  • 2 x SO-DIMM DDR3L 1.35V Slots (1333 / 1600 / 1866) MHz
  • Supports 1 x M.2 SSD (2280) slot, optional eMMC and Micro SD card slot
  • Supports TPM2.0 Module (Optional)
  • Supports wide range 12V to 19V DC-IN Voltage
  • Wide operating temperature 0 ~ 50° C
  • VESA mounting bracket (75 x 75mm + 100 x 100mm)

* COM Port Support via RJ45 connector does not support Ring Indicator (RI) function.




  • The Perfect Fit for IoT Applications

    Being an associate member of the Intel IoT Solutions Alliance, GIGABYTE is at the heart of the booming Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, GIGABYTE BRIX™ IoT is made a perfect fit for various IoT applications.






  • Intel® Celeron Processor

    The new generation of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics and computations. For the BRIX the new Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making GIGABYTE BRIX™ IoT the ideal solution for thin clients, POS solutions, and digital signage.


  • Rich in Connectivity Options
    GIGABYTE BRIX™ IoT ensures you won't be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved.

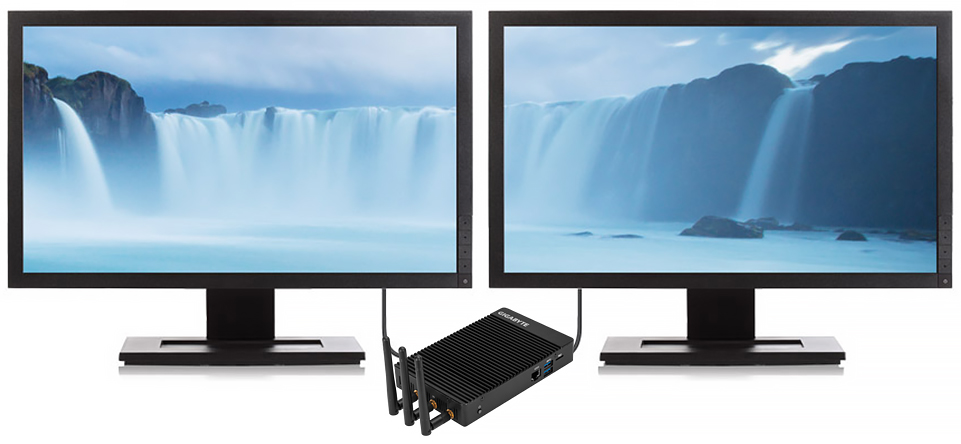

  • Dual Display
    With two HDMI outputs, GIGABYTE BRIX™ IoT can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.

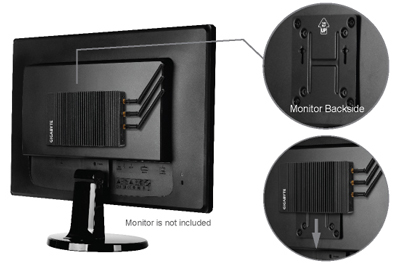

  • VESA Mount Support

    Bundled with a VESA bracket, GIGABYTE BRIX™ IoT can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.




  • SuperSpeed USB 3.0

    Equipped with 4 x USB 3.0 ports, GIGABYTE BRIX™ IoT are flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.0 supports transfer speeds of up to 5 Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.



  • Compute Securely with TPM 2.0 Solution

    These days security is on the forefront of everyone's mind. With cyber criminals around the world actively trying to steal your financial and personal information, you need to do everything you can to protect yourself.
    The TPM is a discrete cryptographic processor attached to a daughter board which plugs into the motherboard. The TPM securely stores your cryptographic key which can be created with encryption software such as Windows BitLocker. Without this key, the contents of the user's PC will remain encrypted and safe from unauthorized access.

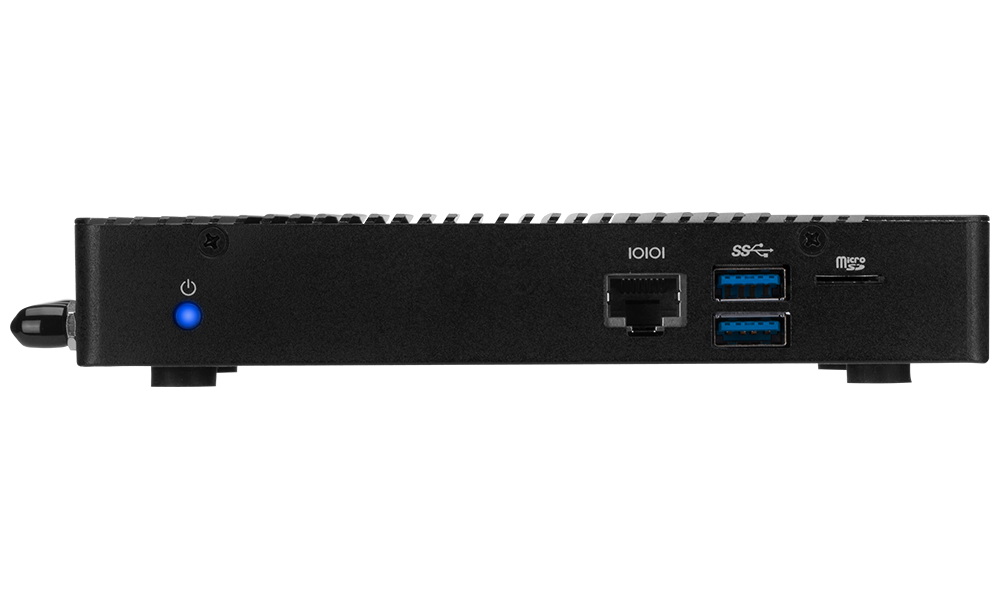

  • Support RS232 / 422 / 485
    GIGABYTE BRIX™ IoT is equipped with 1 x RJ45 connector with D-SUB 9-pin adapter cable to support RS232 / 422 / 485 w/o RI via settings in the BIOS.
  • Wide Range Voltage Input
    Offering additional flexibility for system DC voltage input, GIGABYTE BRIX™ IoT products offer a broad voltage range of 12V to 19V, eliminating compatibility issues with many traditional IPC designs.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
