• Fully qualified Bluetooth 4.0
  • IEEE802.11 a/b/g/n standards compliant
  • 2 Antennas to support WLAN 2Tx2R transmission
  • High speed wireless connection up to 300 Mbps
  • Bluetooth Enhances Data Rate (EDR) support

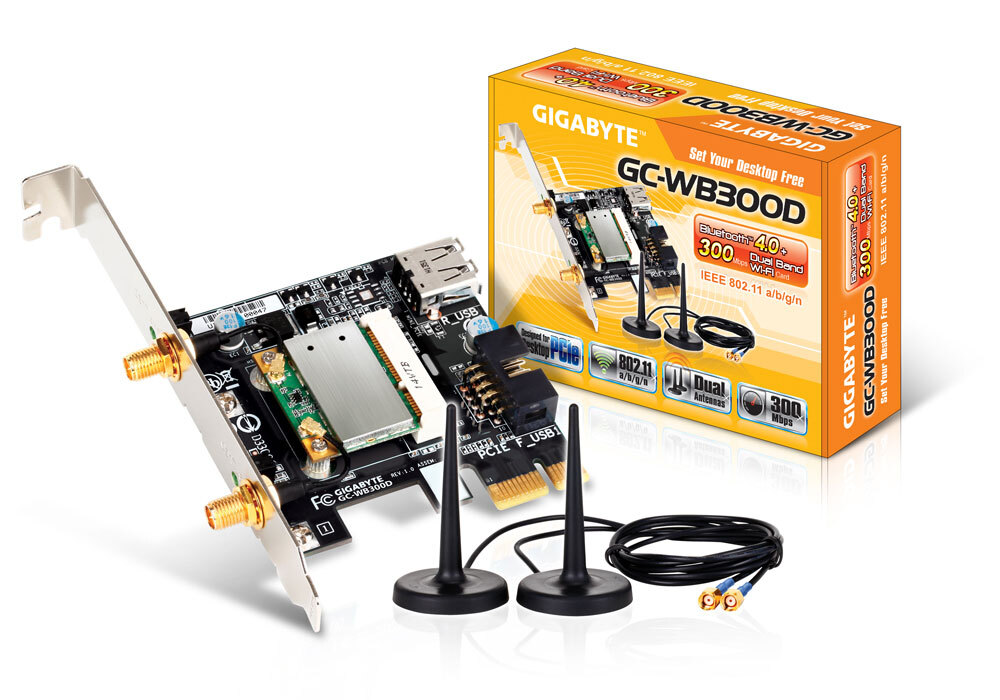

  • Exclusive Bluetooth 4.0/WiFi Expansion Card
    The motherboard also includes an exclusive PCIe expansion card that offers support for the latest Bluetooth 4.0 and IEEE 802.11 a/b/g/n Wi-Fi connectivity. The Bluetooth 4.0 standard includes Smart Ready technology that is debuting on mobile devices including the Apple® iPhone® 4s. This means that transferring important content from your smart phone or tablet is easier and faster than ever...more
    Download : GC-WB300D Safety approval list
  • Bluetooth Function

    Standard Bluetooth V4.0 LE, V3.0+HS, V2.1+EDR
    Data rate 1Mbps, 2Mbps, and up to 3Mbps
  • WiFi Function

    Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n
    Data rate 802.11b: 11, 5.5, 2, 1 Mbps
    802.11g/11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
    802.11n: MCS 0 to 15 for HT20MHz, MCS 0 to 15 for HT40MHz
    Network
    Architecture    		 Ad-hoc mode (Peer-to-Peer), Infrastructure mode
    Operation Channel 2.4GHz
    11: (Ch. 1-11) – United States
    13: (Ch. 1-13) – Europe
    14: (Ch. 1-14) – Japan
    5GHz
    12: USA
    19: EU
    8: Japan
    Security WEP 64/128bit, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS, IEEE 802.1x, IEEE 802.11i
