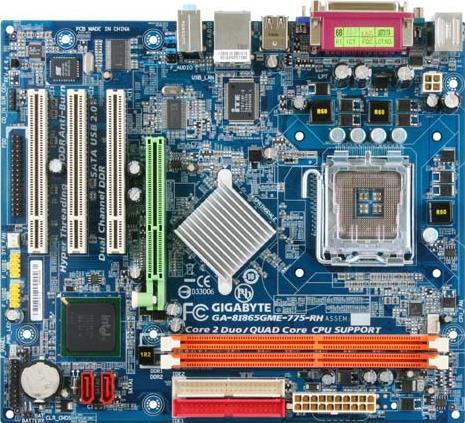

GA-8I865GME-775-RH (Rev. 6.6)

Rev. 6.6Rev. 1.xRev. 2.0Rev. 3.9
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Support for an Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/Intel® Celeron® D processor in the LGA 775 package
    2. Support for Intel® Hyper-Threading Technology
    3. L2 cache varies with CPU
  • Front Side Bus
    1. Supports 1066(OC)/ 800/533 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865G
    2. South Bridge : Intel® ICH5
    3. Realtek ALC655 Codec
    4. EP82562G chip (10/100Mbit)
  • Memory
    1. 2 DDR DIMM memory slots (supports up to 2 GB memory)
    2. Supports dual channel DDR400/333/266 DIMM
    3. Supports 2.5V DDR DIMMs
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Expansion Slots
    1. 1 AGP slot 4X/8X
    2. 3 PCI slots
  • Internal I/O Connectors
    1. 1 20-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 floppy connector
    4. 2 IDE connectors
    5. 2 SATA connectors
    6. 1 CPU fan connector
    7. 1 system fan connector
    8. 1 front panel connector
    9. 1 front audio connector
    10. 1 CD In connector
    11. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
    12. 1 Chassis Intrusion connector
    13. 1 power LED connector
  • Back Panel Connectors
    1. 1 PS/2 keyboard port
    2. 1 PS/2 mouse port
    3. 1 parallel port
    4. 1 serial port
    5. 1 VGA port
    6. 4 USB 2.0/1.1 ports
    7. 1 RJ-45 port
    8. 3 audio jacks (Line In / Line Out / MIC In)
  • H/W Monitoring
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU / System fan failure warning
    6. CPU smart fan control
  • BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
  • Form Factor
    1. Micro ATX
    2. 24.4cm x 21.2cm
  • Other Features
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune (Note)
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Xpress BIOS Rescue
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for an Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/Intel® Celeron® D processor in the LGA 775 package
      2. Support for Intel® Hyper-Threading Technology
      3. L2 cache varies with CPU
    • Front Side Bus
      1. Supports 1066(OC)/ 800/533 MHz FSB
    • Chipset
      1. North Bridge : Intel® 865G
      2. South Bridge : Intel® ICH5
      3. Realtek ALC655 Codec
      4. EP82562G chip (10/100Mbit)
    • Memory
      1. 2 DDR DIMM memory slots (supports up to 2 GB memory)
      2. Supports dual channel DDR400/333/266 DIMM
      3. Supports 2.5V DDR DIMMs
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Expansion Slots
      1. 1 AGP slot 4X/8X
      2. 3 PCI slots
    • Internal I/O Connectors
      1. 1 20-pin ATX power connector
      2. 1 4-pin ATX 12V power connector
      3. 1 floppy connector
      4. 2 IDE connectors
      5. 2 SATA connectors
      6. 1 CPU fan connector
      7. 1 system fan connector
      8. 1 front panel connector
      9. 1 front audio connector
      10. 1 CD In connector
      11. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
      12. 1 Chassis Intrusion connector
      13. 1 power LED connector
    • Back Panel Connectors
      1. 1 PS/2 keyboard port
      2. 1 PS/2 mouse port
      3. 1 parallel port
      4. 1 serial port
      5. 1 VGA port
      6. 4 USB 2.0/1.1 ports
      7. 1 RJ-45 port
      8. 3 audio jacks (Line In / Line Out / MIC In)
    • H/W Monitoring
      1. System voltage detection
      2. CPU temperature detection
      3. CPU / System fan speed detection
      4. CPU warning temperature
      5. CPU / System fan failure warning
      6. CPU smart fan control
    • BIOS
      1. 1 4 Mbit flash ROM
      2. Use of licensed AWARD BIOS
    • Form Factor
      1. Micro ATX
      2. 24.4cm x 21.2cm
    • Other Features
      1. Supports @BIOS
      2. Supports Download Center
      3. Supports Q-Flash
      4. Supports EasyTune (Note)
      5. Supports Xpress Install
      6. Supports Xpress Recovery2
      7. Supports Xpress BIOS Rescue
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
