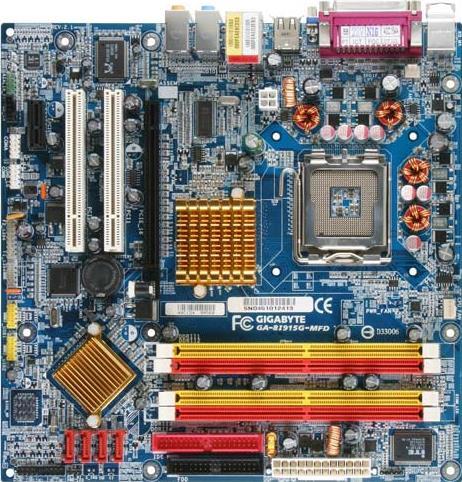

GA-8I915G-MFD (Rev. 2.0)

OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. LGA 775 for Pentium® 4 Processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Chipset
    1. Northbridge : Intel® 915G
    2. Southbridge : Intel® ICH6
    3. Integrated Peripherals :
      1. T.I. IEEE1394 controller
      2. Realtek 8110S Gigabit Ethernet controller
      3. Realtek ALC880 audio codec
  • Memory
    1. Type: Dual Channel DDR2 533/400
    2. Max capacity: 4 GB
    3. DIMM slots: 4
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Expansion Slots
    1. 1 x PCIe X 16 slot
    2. 1 x PCIe X 1 slot
    3. 2 x PCI slots
  • Internal I/O Connectors
    1. 4 x Serial ATA connectors
    2. 2 x USB 2.0 connectors (4 ports by cable)
    3. 1 x FDD connector
    4. 1 x UltraDMA 100/66 IDE
    5. 1 x IEEE 1394 pin header (by optional cable)
    6. 2 x cooling fan pin headers
    7. 1 x CD in
    8. 1 x COM port connector
    9. 1 x 24-pin ATX Power connector
    10. 1 x 4-pin ATX 12V Power connector
  • Back Panel Connectors
    1. 4 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 6 x Audio jacks (Line Out / Line-in / Mic in)
    4. 1 x VGA port
    5. 1 x LPT port
    6. 2 x PS/2 ports(Keyboard/Mouse)
    7. 2 x S/P DIF jacks (in/Out)
  • H/W Monitoring
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 1 x 2M bit flash ROM
  • Bundled Software
    1. Norton Internet Security 2004
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. u-ATX
    2. 24.4cm x 24.4cm
  • Other Features
    1. M.I.T. (Motherboard Intelligent Tweaker)
    2. Download Center
    3. S.O.S. (System Overclock Saver)
    4. C.O.M. (Corporate Online Management)
    5. Miracle of Xpress3
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
