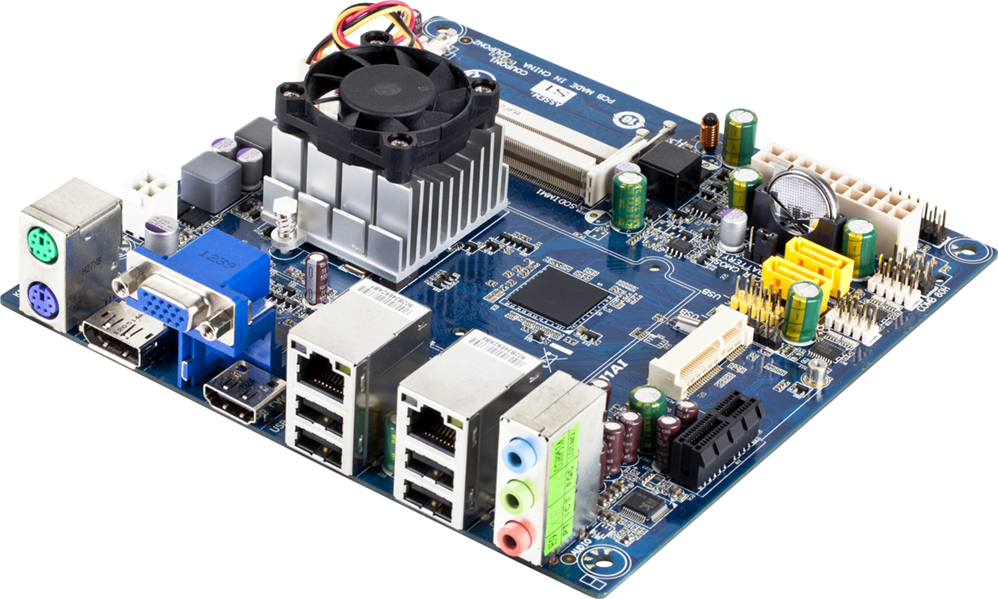

M5NM1AILegacy | Firmware updates supported
Intel® NM10 chipset
- Mini-ITX form factor
- Intel® Atom™ D2550 1.86GHz processor
- 2 x SO-DIMM, up to 4GB 1066MHz
- 2 x GbE LAN ports (Realtek® RTL8111E)
- 2 x COM ports (2 x internal)
- 2 x SATA II 3Gb/s ports
- Overview
- Specifications
- Support
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing)
CPU
Intel® Atom™ D2550
2 cores / 4 threads
1.86 GHz
10W max. TDP
2 cores / 4 threads
1.86 GHz
10W max. TDP
Socket
1 x BGA 559
Chipset
Intel® NM10
Memory
2 x SO-DIMM DDR3 slots
Single channel memory architecture
Up to 4GB
1.5V modules: 1066 MHz
Single channel memory architecture
Up to 4GB
1.5V modules: 1066 MHz
LAN
2 x GbE LAN ports (Realtek® RTL8111E)
Video
Intel® GMA3650
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SATA
2 x SATA II 3Gb/s ports
RAID
-
Expansion Slots
1 x PCIe x1 (Gen2 x1 bus) slot
1 x Half-size Mini-PCIe slot
1 x Half-size Mini-PCIe slot
Internal I/O
1 x USB 2.0 header
2 x SATA II 3Gb/s ports
2 x Serial headers
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x Front panel header
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
2 x SATA II 3Gb/s ports
2 x Serial headers
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x Front panel header
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
Rear I/O
4 x USB 2.0
1 x PS/2
1 x HMDI
1 x DisplayPort
1 x VGA
1 x MIC-In
1 x Line-Out
1 x Line-In
2 x RJ45
1 x PS/2
1 x HMDI
1 x DisplayPort
1 x VGA
1 x MIC-In
1 x Line-Out
1 x Line-In
2 x RJ45
TPM
-
OS Compatibility
Windows 7 (32/64bit)
PSU Connectors
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
1 x 24-pin ATX main power connector
Power Supply
-
Packaging Content
-
Ordering Information
9M5NM1AINR-SI
