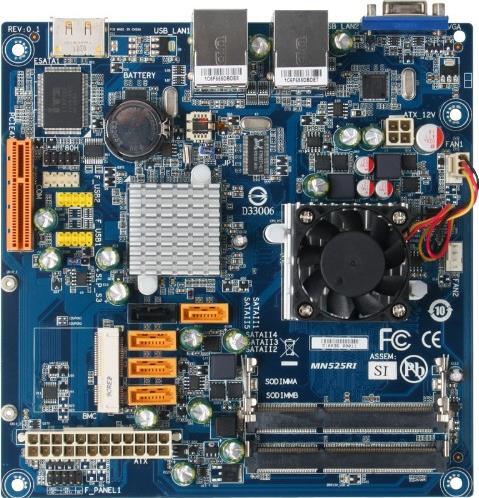

MN525RILegacy | Firmware updates supported
Intel Mini-ITX Storage Solution
- Support 45nm Intel® Atom™ dual core processor D525
- New DDR3 technology
- Integrated Intel graphic with DirectX 9 support
- Features dual high speed Gigabit Ethernet connection
- Total 6 SATAII ports and up to 3Gbps performance
- Specifications
- Support
Specifications
Form Factor
Mini-ITX ( 170mm x 170mm )
CPU
Intel® Atom™ processor D525 (1M Cache, 1.80 GHz, Dual Core, 13W)
Chipset
Intel® 82801IR I/O Controller (ICH9R)
Memory
2 x DDR3 800MHz SO-DIMM Slots (up to 4GB)
LAN
2 x Gigabit Ethernet Controllers (Intel 82567LM + 82574L)
Video
Intel GMA3150
SATA
5 x SATA 3.0 Gb/s ports
1 x e-SATA port
1 x e-SATA port
RAID
Support RAID 0, RAID 1 and RAID 10 mode
Expansion Slots
1 x PCIe x4
Internal I/O
4x USB 2.0
1x COM
1 x System Fan
1 x CPU Fan
1 x Front Panel
1 x ATX DC 12V In ( 4 Pin )
1 x ATX Power ( 24 Pin )
1x COM
1 x System Fan
1 x CPU Fan
1 x Front Panel
1 x ATX DC 12V In ( 4 Pin )
1 x ATX Power ( 24 Pin )
Rear I/O
1 x D-Sub (VGA)
4 x USB2.0 Ports
2 x RJ45 Ports
1 x e-SATA Port
4 x USB2.0 Ports
2 x RJ45 Ports
1 x e-SATA Port
Power Supply
ATX24 + ATX12V Connectors
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
