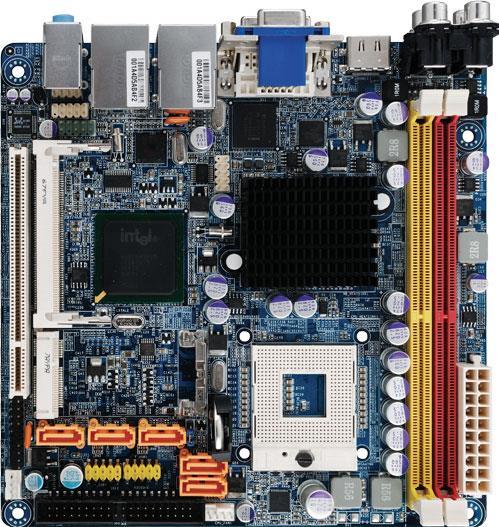

GA-6KIEH-RHLegacy | Software updates supported
Intel GME965 + ICH8M
- Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
- Support one socket P Intel Core 2 Duo (45nm Penryn/ 65nm Merom) processor.
- Built-in 5 SATA ports and support RAID 0/ 1/ 5/ 10
- DVI-D/ HDMI/ YPbPr support full HD display.
- Compact Flash card slot support boot up function.
- 2 ports Gigabit Ethernet provide ample network bandwidth.
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
- Single socket P Intel Core 2 Duo (45nm Penryn/ 65nm Merom) processor
- FSB 533/ 667/ 800MHz
- TDP <35W
Chipset
- Intel GME965 chipset with Intel ICH8M
Memory
- 2 DDR2 DIMM socket
- 2 channel native 533/ 667MHz up to 4GB
LAN
- 2 Gigabit LAN (Intel 82566DC + Intel 82573L)
Video
- Intel GMA X3100 (Intel GME965)
Audio
- 7.1+2 channel HD audio (Realtek ALC883)
SATA
- 4 ports SATA 3Gbps via Silicon Image SiI3124
- 1 port SATA 3Gbps via Intel ICH8M
IDE/ SCSI
- 1 40pin IDE
RAID
- RAID 0/ 1/ 5/ 10
Expansion Slots
- 1 PCI
- 1 Mini PCI
- 1 Mini Card
- 1 Compact Flash card slot support boot-up function
Internal I/O
- 2 COM
- 4 USB
Rear I/O
- 3 Audio
- 1 Component (YPbPr)
- 1 DVI-D
- 1 HDMI 1.3
- 2 RJ45
- 1 SPDIF out (Coaxial)
- 4 USB
- 1 VGA
Power Supply
- ATX power 20pin
Ordering Information
- 5M6KIEH00R-00-12B
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
