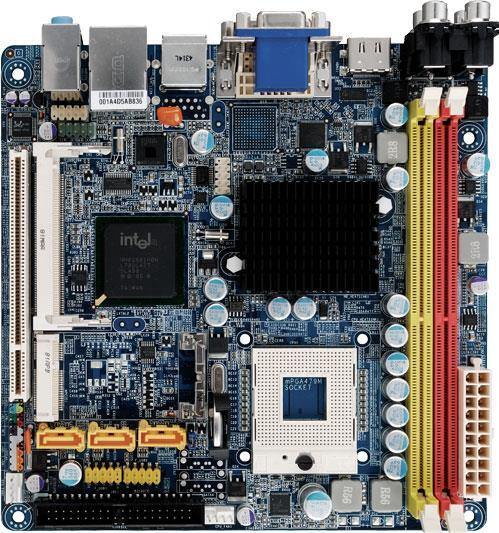

GA-6KIEL-RHLegacy | Software updates supported
Intel GLE960 + ICH8M
- Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
- Support one socket P Intel ULV Celeron 573 1.0GHz or Celeron 550 2.0GHz processor.
- DVI-D/ HDMI/ YPbPr support full HD display.
- Compact Flash card slot support boot up function.
- 1 port Gigabit Ethernet.
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
- Single socket P Intel ULV Celeron 573/ Celeron 550 processor
- FSB 533MHz
Chipset
- Intel GLE960 chipset with Intel ICH8M
Memory
- 2 DDR2 DIMM socket
- 2 channel native 533MHz up to 2GB
LAN
- 1 Gigabit LAN (Intel 82566DC)
Video
- Intel GMA X3100 (Intel GLE960)
Audio
- 7.1+2 channel HD audio (Realtek ALC883)
SATA
- 3 ports SATA 3Gbps via Intel ICH8M
IDE/ SCSI
- 1 40pin IDE
Expansion Slots
- 1 PCI
- 1 Mini PCI
- 1 Mini Card
- 1 Compact Flash card slot support boot-up function
Internal I/O
- 2 COM
- 4 USB
Rear I/O
- 3 Audio
- 1 Component (YPbPr)
- 1 DVI-D
- 1 HDMI 1.3
- 1 RJ45
- 1 SPDIF out (Coaxial)
- 4 USB
- 1 VGA
Power Supply
- ATX power 20pin
Ordering Information
- 5M6KIEL00R-00-11F
