CSA6548Legacy | Firmware updates supported

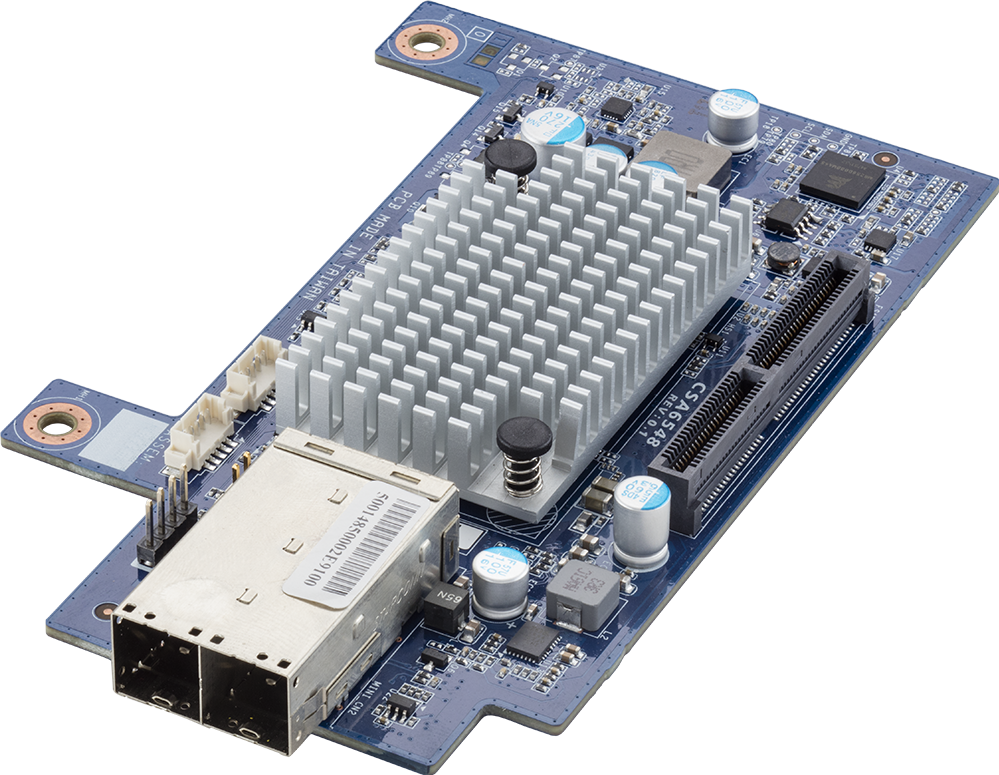

Broadcom SAS3008 HBA
Broadcom SAS3008 HBA - External type
- 2 x external Mini-SAS HD SFF8644 connectors
- Up to 14 x physical devices supported via SAS expander
- Broadcom® SAS3008 controller
- RAID 0/1/1E/10
- Mezzanine type (3.0 x8 bus)
- 130 x 81.28 mm
- Specifications
- Support
Specifications
Ports
2 x external Mini-SAS HD SFF8644 connectors
Up to 1024 physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Up to 1024 physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3008
RAID
RAID 0/1/1E/10
Integrated RAID (IR)
- 14 spread across 2 volumes
RAID 0 10 per volume
RAID 1 2 per volume
RAID 1E 10 per volume
RAID 10 10 per volume
IT Mode: Up to 1024 physical devices supported
Integrated RAID (IR)
- 14 spread across 2 volumes
RAID 0 10 per volume
RAID 1 2 per volume
RAID 1E 10 per volume
RAID 10 10 per volume
IT Mode: Up to 1024 physical devices supported
Interface
Mezzanine type (3.0 x8 bus)
Dimensions
130 x 81.28 mm
Format
Mezzanine type
Includes
-
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CSA6548NR-00
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
