CRAO558Legacy | Software updates supported

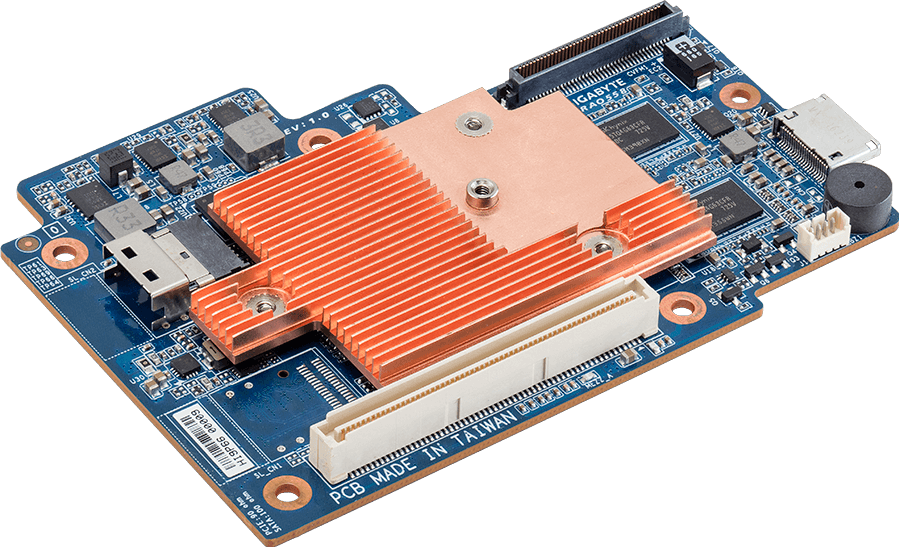

Broadcom SAS3108 H/W RAID Card (240-PD)
Broadcom SAS3108 OCP type hardware RAID Card (240-PD)
- 1 x Internal SlimSAS port, up to 4 x SAS 12Gb/s ports
- 1 x External OCuLink port for JBOD
- Up to 240 x physical devices supported via SAS expander
- Broadcom SAS3108
- Hardware RAID 0/1/5/6/10/50/60
- 2GB DDR3 1866 cache memory
- PCIe 3.0 x8 bus
- (Optional) CacheVault Flash Cache Protection Module
- OCP Form Factor (Type1)
Specifications
Ports
1 x internal SlimSAS ports up to 4 x SAS 12Gb/s ports
1 x external OCuLink port for JBOD
Up to 240 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
1 x external OCuLink port for JBOD
Up to 240 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3108
RAID
Hardware RAID 0/1/5/6/10/50/60
2GB DDR3 1866 cache memory
Compatible with Broadcom® CacheVault Flash Cache Protection Module P/N: 25FCZ-CVM020-L1R (optional)
Compatible with Broadcom® CacheVault Flash Cache Protection Module P/N: 25FCZ-CVM020-L1R (optional)
Interface
PCIe 3.0 x8 bus
Dimension
110.85 x 78 mm
Format
OCP mezzanine (Type1)
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CRAO558NR-00
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
