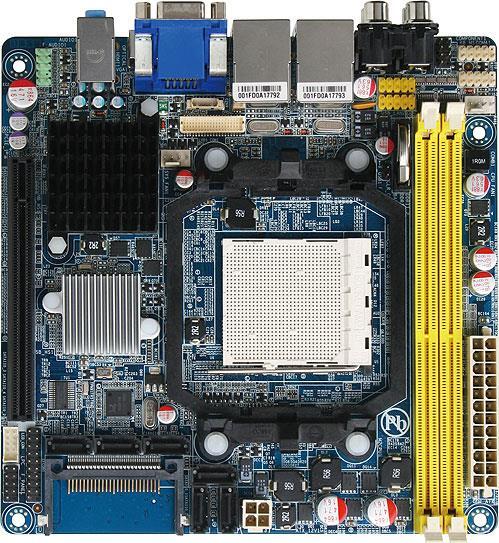

GA-2AIEV-RHLegacy | Software updates supported
AMD 780E + SB700
- Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
- Support one socket AM2+ AMD Phenom/ Athlon processor.
- HDMI supports full HD 1080p high-definition and dual display.
- Onboard LVDS ideal for dual display application such as POS, kiosk, and digital signage system.
- Compact Flash card slot support boot up function.
- 2 ports Gigabit Ethernet provide ample network bandwidth.
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
- Single AMD Phenom/ Athlon processor (socket AM2/ AM2+)
- HyperTransport 3.0
Chipset
- AMD 780E chipset with AMD SB700
Memory
- 2 DDR2 DIMM socket
- 2 channel native 667/ 800MHz up to 4GB
LAN
- 2 Gigabit LAN (Broadcom BCM5764M)
Video
- ATI Radeon HD 3200 (AMD 780E)
Audio
- 7.1+2 channel HD audio (Realtek ALC889A)
SATA
- 6 ports SATA 3Gbps via AMD SB700
RAID
- RAID 0/ 1/ 10
Expansion Slots
- 1 PCI Express x8 (x16 mechanical)
- 1 Compact Flash card slot support boot-up function
Internal I/O
- 2 COM
- 1 LVDS (24bit)
- 1 PS2
- 4 USB
Rear I/O
- 3 Audio
- 1 HDMI 1.3
- 2 RJ45
- 1 SPDIF out (Optical + Coaxial)
- 4 USB
- 1 VGA
Power Supply
- ATX power 24pin
Ordering Information
- 9M2AIEV00R-00-10D
