GS-R1271-RHLegacy | Software updates supported

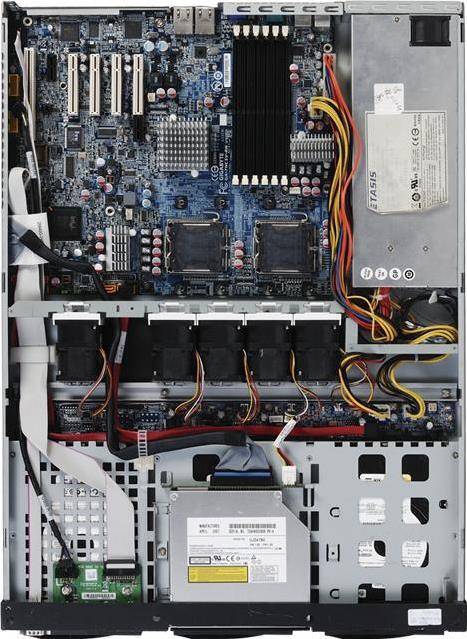

- Intel® 1U DP Server
- Supports dual Intel®Xeon® processors at FSB 1066/1333MHz with Intel®5100 chipset & 82801IR ICH9 RAID chipset
- Supports 6 ECC Registered DDR2 533/667MHz
- Integrated in ServerEngines Pilot II VGA chipset
- Intel® Virtualization Technology features native harware platform for various OS in one system
- Intel®82801IR ICH9 RAID supports six independant SATA controllers, each controller capable up to 3Gb/second transfer rate
- Intel® SW RAID 0, 1, 10, 5(RAID 5 is for Windows only)
- Intel® 82566DM single-port GbE controller & Intel® 82573 single-port GbE & single-port 100BASE-TX
- ServerEngines Pilot II Server Management features enhanced
- Specifications
- Support
- Related Resources
Specifications
CPU
- Dual-Core Intel® Xeon® (Woodcrest/Wolfdale) processors
- Quad-Core Intel® Xeon® (Clovertown/Harpertown) processors
- Supports 1066/1333MHz/Socket LGA771
Chipset
- Intel® 5100
- Intel® 82801IR ICH9 RAID
Video
- Integrated in ServerEngines Pilot II
Storage
- 3 x Hot-Swap SAS/SATA HDDs
RAID
- Intel® SW RAID 0, 1, 10, 5(Windows only)
- Optional LSI SW RAID 0/1/10 or LSI SW RAID 0/1/5/10
Expansion Slots
- Full-Height: 1*PCIe x8
- Low-Profile: 1*PCIe x8
- Others: 1*SO-DIMM IF
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 x VGA
- 3 x RJ45 (1 for remote management)
Power Supply[#1]
- Single 300W
System Management
- ServerEngines Pilot II (IPMI 2.0) + i KVM (Option)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
