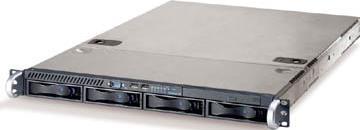

GS-SR125Legacy | Firmware updates supported
- Dimensions: 19"W x 1.73"H x 25.6"D (1U)
- Four Hot-Swap Ultra 160 SCA/80-Pin 3.5" SCSI Drives
- Four Redundant/Programmable FAN with Max. 8000RPM
- Innovative Modularized Design to Provide Storage I/O Flexibility and Increase I/O Expansion
- Intel® E7500, ICH3-S, P64H2, ATI® Rage XL 8MB
- Dual Intel® Xeon™ Processors with 512K L2 Cache
- Max. 12 GB Registered (ECC) DDR-266 (Dual channels, 3.2GB/s Bandwidth)
- Storage I/O Bridge Card - Adaptec 7899W Dual U160 SCSI Channels
- Dual Intel® 82545EM PCI-X Gigabit Ports to Ensure GbE Fault Tolerance
- 1 PCI-X/100MHz Full-Height Slot, 1 PCI-X/100MHz Full-Height/Half-Length Slot
- 1 PCI-X/66MHz ZCR Low-Profile Enabled Slot
- Specifications
- Support
- Related Resources
Specifications
CPU
- Dual Intel®Xeon™Processors with 512K L2 cache
- 400MHz FSB
- Socket 603
Chipset
- Intel®E7500/ICH3-S
LAN
- Dual Intel® 82545EM Gigabit Controller
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (GEC)
Video
- Built-In ATI Rage XL video chip with 8MB memory
RAID
- Intel RADIOS/Adatpec ZCR Enabled PCI Slot
Expansion Slots
- 2 x 64-bit/100 Mhz slot
- 1 x 64-bit/66 Mhz slot
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
