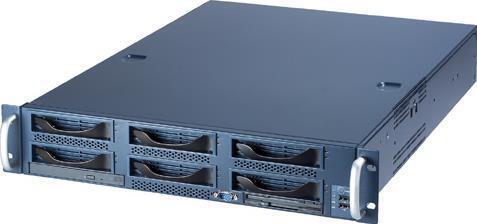

GS-SR222ELegacy | Firmware updates supported
- Dimensions: 19"W x 3.46"H x 26.15"D (2U)
- Six Hot-Swap Ultra 320 SCA/80-Pin 3.5" SCSI Drives
- ServerWorks® CMIC-SL, CIOB-X 2 PCI-X Bridge and CSB6 chipset
- ATI® Rage XL 8MB
- Dual Intel® Xeon™ Processors with 512K L2 Cache
- Max. 4 GB Registered (ECC) DDR-266 (Dual channels, 3.2GB/s Bandwidth)
- Adaptec® 7902W Dual Ultra 320 SCSI Channels
- Build in Intel® 82550PM Fast Ethernet and Intel®RC82545EM Gigabit Ethernet chipset supports server adapter
- 2 PCI-X/133,100MHz Full-Height Slots and 1 PCI 64/66MHz Low-Profile Slot
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual Intel® Xeon™(512KB L2 Cache) up to 2.8 GHz
- 533 Mhz FSB
- Socket 604
Chipset
- ServerWorks® CMIC-SL/CSB6
- ServerWorks®CIOB-X2(PCI-X)
LAN
- Intel® 82545EM Gigabit Controller
- Intel® 82550PM 10/100 Controller
- Supoorts Intel® ProServer Adapter Utilities:
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- ATI Rage-XL on board with 8MB memory
Storage
- Six front-accessible hot-swap SCSI HDD
- Optional for IDE HDD through SCSI to IDE conversion card on Hard Disk tray
RAID
- Optional Adaptec® ASR-2015S Zero Channel RAID SO-DIMM Card
Expansion Slots
- 2 PCI-X 64bit/100MHz Full-Height Slots
- 1 PCI 64bit/66MHz Low-Profile Slot
Power Supply[#1]
- Maximum 460W single/redundant(optional) Power Supply supported
- 100V~240V (Plus or minus 10 percent)
- 50~60Hz (Plus or minus 6 percent)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
