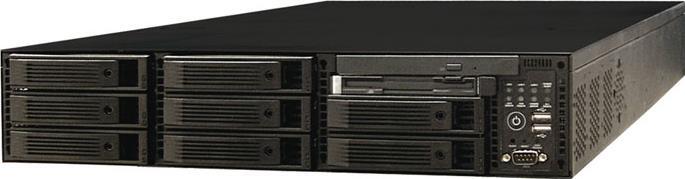

GS-SR275Legacy | Firmware updates supported
- AMD®8111,8131TM chipset
- AMD® Dual OpteronTM processor with Hyper Transport bus 800MHz
- 4 * DDR socket slots for Primary CPU,4 * DDR socket slots for Secondary CPU
- Supports up to 8GB for 1 CPU, support up to 16GB for 2 CPUs
- Supports ECC/ registered DDR200/266/333/400
- PCI 32/33 x2,PCI-X 64/100 x2(for Riser slot),PCI-X 64/66 x2,PCI-X 64/66 x1 by SO-DIMM slot
- So-DIMM with Adaptec 7902B dual channel U320 SCSI card on board
- One Intel 82545GM and One 82541GI Gigabit Ethernet
- 8 SCSI hot-swap HDD tray and one set slim CD-ROM & slim Floppy
- Redundant Power supply 500W.
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual AMD® OpteronTM
- 800 Mhz Hyper Transport Bus
- Socket 940
Chipset
- AMD®8131TM
- AMD®8111TM
LAN
- Intel® 82545GM Gigabit Ethernet Controller
- Intel® 82541GI Gigabit Ethernet Controller
- Supoorts Intel® ProServer Adapter Utilities
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- ATI Rage-XL on board with 8MB memory
Storage
- Eight front-accessible hot-swap SCSI HDD
RAID
- Optional Adaptec® ASR-2010S Zero Channel RAID PCI-X extension card
Peripheral Drives
- 1 x Slim FDD
- 1 x Slim 24x CD-ROM
Expansion Slots
- 2 PCI-X 64bit/66MHz Full-Height Slots
- 1 PCI 64bit/66MHZ Low-Profile Slot
- 1ZCR riser on MB support PCI-X Adaptec® ZCR extension card
Power Supply[#1]
- Maximum 480W single/redundant(optional) Power Supply supported
- 100V~240V (Plus or minus 10 percent)
- 50~60Hz (Plus or minus 6 percent)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
