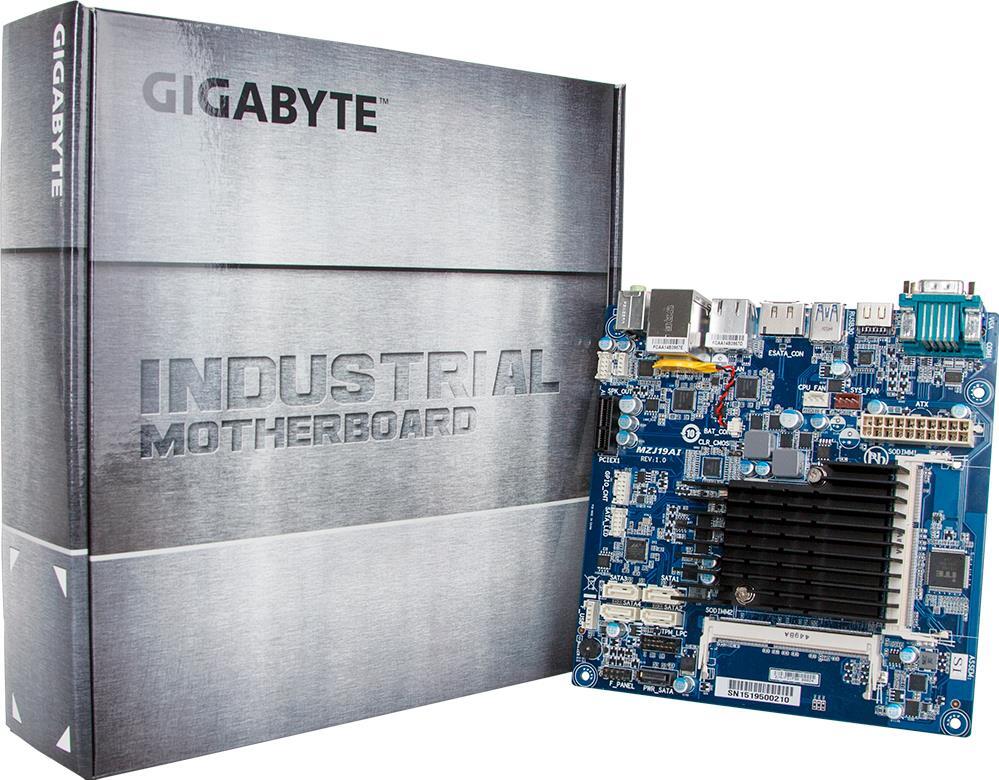

MZJ19AILegacy | Software updates supported
Intel® J1900 SoC
- Mini-ITX form factor
- Intel® Celeron® J1900 SoC
- 2 x SO-DIMM, up to 8GB 1333MHz
- 2 x GbE LAN ports (Intel® I210)
- 4 x SATA III 6Gb/s ports
- 1 x SATA II 3Gb/s port
- 1 x eSATA 3Gb/s port
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Celeron® J1900
4 cores / 4 threads
2.0 - 2.42 GHz
10W max. TDP
4 cores / 4 threads
2.0 - 2.42 GHz
10W max. TDP
Socket
1 x BGA 1170
Chipset
-
Memory
2 x SO-DIMM DDR3L slots
Dual channel memory architecture
Up to 8GB
1.35V modules: 1333 MHz
Dual channel memory architecture
Up to 8GB
1.35V modules: 1333 MHz
Flash Memory
-
LAN
2 x GbE LAN ports (Intel® I210)
Video
Intel® HD Graphics, supporting:
- 1 x HDMI port: max. resolution 1920x1080 at 60hz (HDMI 14.a)
- 1 x D-SUB port: max. resolution 2560x1600 at 60hz (with compatible displays)
Audio
Realtek® ALC269 controller
Supports 2/4 channel configurations
Supports 2/4 channel configurations
SAS
-
SATA
4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x eSATA 3Gb/s port
1 x SATA II 3Gb/s port
1 x eSATA 3Gb/s port
RAID
Marvell® SATA RAID 0/1/10
Expansion Slots
1 x PCIe x1 (Gen2 x1 bus) slot
Internal I/O
1 x 20-pin ATX main power connector
1 x Front USB 2.0 header
1 x SATA GPIO header
1 x GPIO header
1 x TPM header
1 x Front audio header
1 x Speaker out header
4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x Front panel header
1 x CPU fan header
1 x System fan header
1 x Front USB 2.0 header
1 x SATA GPIO header
1 x GPIO header
1 x TPM header
1 x Front audio header
1 x Speaker out header
4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x Front panel header
1 x CPU fan header
1 x System fan header
Rear I/O
1 x USB 3.0
2 x USB 2.0
1 x eSATA
1 x VGA
1 x HDMI
1 x Serial
2 x RJ45
2 x Audio jacks
2 x USB 2.0
1 x eSATA
1 x VGA
1 x HDMI
1 x Serial
2 x RJ45
2 x Audio jacks
TPM
1 x TPM header
Infineon® SLB9635TT1.2 module in option
Infineon® SLB9635TT1.2 module in option
OS Supported
Windows 7 (x64)
Windows 8 (x64)
Windows 8.1 (x64)
Windows Server IoT 2019
Windows 8 (x64)
Windows 8.1 (x64)
Windows Server IoT 2019
PSU Connectors
1 x 20-pin ATX main power connector
Power Supply
-
Packaging Content
1 x I/O shield
Ordering Information
9MZJ19AINR-SI
