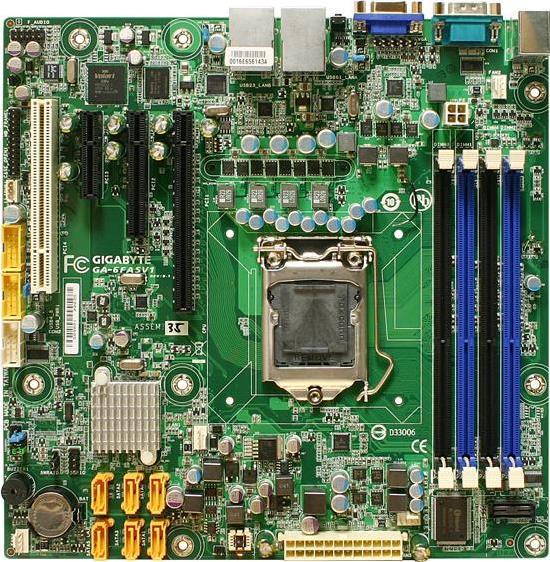

GA-6FASV1Legacy | Software updates supported
Intel 3420 chipset
- Micro ATX form factor easy to find suitable chassis.
- Entry server board with essential server-class features.
- Support one Intel Xeon processor 3400 series.
- Up to 4 DIMMs of ECC unbuffered DDR3 memory.
- Well-rounded expansion: one PCIe 2.0 x16, one PCIe 2.0 x4, one PCIe 2.0 x2, and one PCI.
- Dual Intel Gigabit Ethernet connections provide ample network bandwidth.
- Specifications
- Support
- Related Resources
Specifications
Form Factor
- Micro ATX (9.6” x 9.6”)
CPU
- Single Intel Xeon processor 3400 series
Chipset
- Intel 3420 chipset
Memory
- 4 DDR3 DIMM sockets support ECC unbuffered
- 2 channel native 1066/ 1333MHz
LAN
- 2 Gigabit LAN (Intel 82578DM + Intel 82574L)
Video
- XGI Volari Z9s 32MB DDR2
SATA
- 6 ports SATA 3Gbps via Intel 3420
RAID
- Intel SW RAID 0/ 1/ 5/ 10
Expansion Slots
- 1 PCI Express 2.0 x16
- 1 PCI Express 2.0 x4 (x8 mechancial)
- 1 PCI Express 2.0 x2 (x4 mechanical)
- 1 PCI
Board Management
- Hardware Monitor
Reference Numbers
- 9M6FASV1NR-00
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
