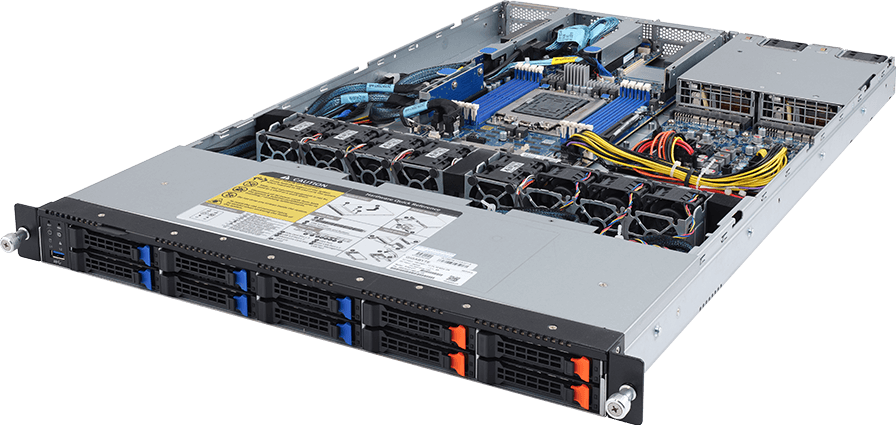

R162-Z11

Rev. 100Rev. A00

Rack Server - AMD EPYC™ 7002/7001 - 1U UP 10-Bay Gen3 NVMe/SATA/SAS

AI AI Inference HPC Networking

Compatible with 3 x NVIDIA Tesla PCIe GPUs
Single AMD EPYC™ 7002/7001 Series Processors
8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I350-AM2
4 x 2.5" Gen3 NVMe hot-swappable bays
6 x 2.5" SATA/SAS hot-swappable bays
1 x M.2 slot with PCIe Gen3 x4 interface
1 x LP PCIe Gen4 x16 slot
2 x LP PCIe Gen3 x16 slots
1 x OCP 2.0 Gen3 x16 mezzanine slot
1+1 1200W 80 PLUS Platinum redundant power supplies

Compare

Save

Quote

Overview
Specifications
Support
Related Resources

Specifications

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 730

Motherboard

MZ12-HD2

CPU

AMD EPYC™ 7002 Series Processors
AMD EPYC™ 7001 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
TDP up to 225W, cTDP up to 240W

Supports 280W CPU at ambient 30°C
NVIDIA Tesla GPU not supported if using 280W CPU

Chipset

System on Chip

Memory

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Memory speed: Up to 3200 MT/s

LAN

Rear side:
2 x 1Gb/s LAN ports (1 x Intel^® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2500
- 1 x VGA port

Storage

Front side:
4 x 2.5" Gen3 NVMe hot-swappable bays
6 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

*Backplane JP_SEL switch set from "00010" to "00000" (all OFF) if SAS RAID crad is installed.

SAS

Depends on SAS add-in cards

RAID

N/A

Expansion Slots

Riser Card CRSH01D:
- 1 x PCIe x16 (Gen4 x16) low-profile slot

Riser Card CRS1060:
- 2 x PCIe x16 (Gen3 x16) low-profile slots

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device

Note: Support is not provided for mixed GPU populations.

Internal I/O

1 x M.2 slot
1 x USB 3.0 header
1 x TPM header
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Front I/O

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED

Backplane Board

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply^[#1]

1+1 1200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-7A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 97A
+12Vsb/ 3A

System Management

Aspeed^® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Citrix Hypervisor 8.1.0 or later

Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later

Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

System Fans

5 x 40x40x56mm (23,000rpm)
3 x 40x40x28mm (18,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Net Weight: 11.95 kg
Gross Weight: 20.5 kg

Packaging Dimensions

985 x 588 x 250 mm

Packaging Content

1 x R162-Z11
1 x CPU heatsink
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR162Z11MR-00-1*
- Motherboard: 9MZ12HD2NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Backplane board - CBP10A1: 9CBP10A1NR-00
- Riser card - CRSH01D: 9CRSH01DNR-00
- Riser card - CRS1060: 9CRS1060NR-00
- Fan module: 25ST2-44562G-D0R/25ST2-442824-D0R
- Power supply: 25EP0-212002-F3S

Optional parts:

- M.2 Riser card - CMTP052: 9CMTP052NR-00
- RMA packaging: 6NR162Z11SR-RMA-A100

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
