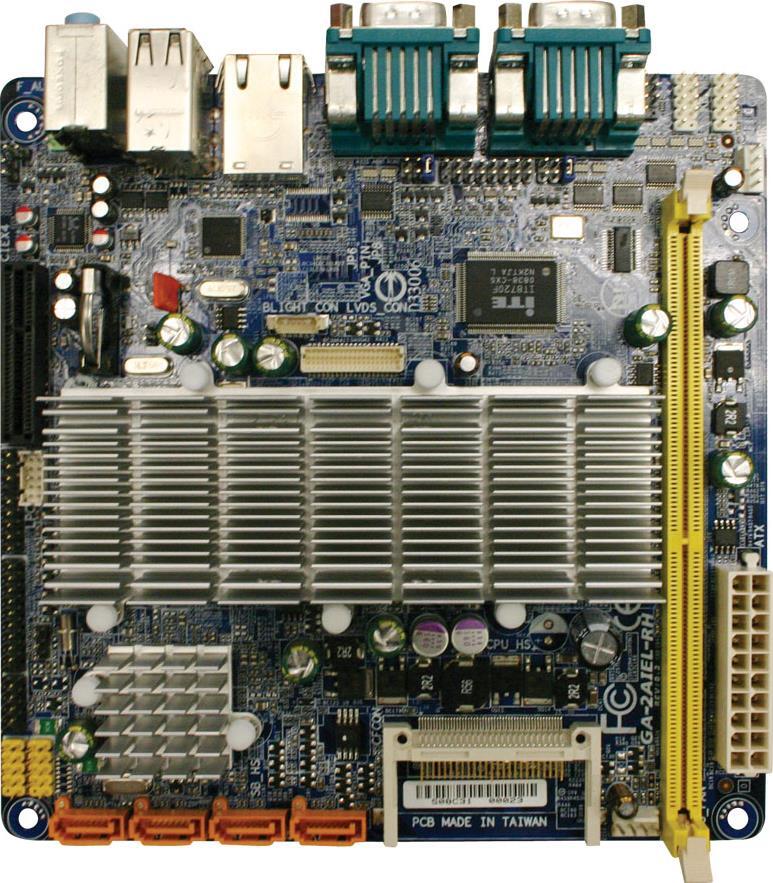

GA-2AIEL1-RHLegacy | Software updates supported
- Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
- Passively cooled AMD Sempron 200U 1.0GHz processor onboard.
- HDMI supports 1080i high-definition video output and dual display.
- Onboard LVDS ideal for dual display application such as POS and digital signage system.
- Compact Flash card slot supports boot-up function.
- 1 port Gigabit Ethernet provides ample network bandwidth.
- Specifications
- Support
Specifications
Form Factor
- Mini-ITX (17cm x 17cm)
CPU
- Onboard AMD Sempron 200U 1.0GHz processor
- HyperTransport link up to 800MHz
Chipset
- AMD RS690E chipset with AMD SB600
Memory
- 1 DDR2 DIMM socket
- Single channel 400MHz up to 2GB
LAN
- 1 Gigabit LAN (Realtek RTL8111C)
Video
- ATI Radeon Xpress 1270 (AMD RS690E)
Audio
- 7.1+2 channel HD audio (Realtek ALC889A)
SATA
- 4 ports SATA 3Gbps via AMD SB600
RAID
- RAID 0/ 1/ 0+1
Expansion Slots
- 1 PCI Express x1 (x4 mechanical)
- 1 Compact Flash card slot support boot-up function
Internal I/O
- 2 COM
- 1 LVDS (24bit)
- 4 USB
Rear I/O
- 2 COM
- 1 HD Audio jacks
- 1 HDMI
- 1 RJ45
- 1 SPDIF out
- 4 USB
- 1 VGA
