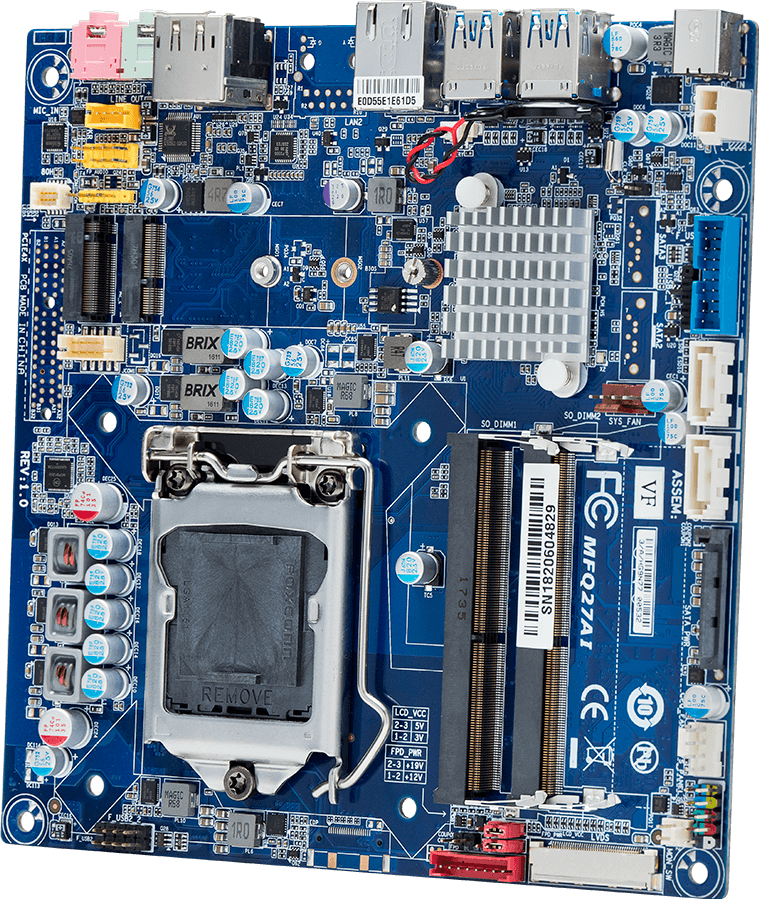

MFQ27AILegacy | Software updates supported
Intel® Q270 Chipset
- Thin Mini-ITX form factor
- Supports 7th/ 6th Generation Intel® Core™ Processors
- Intel® Q270 Express Chipset
- 2 x DDR4 SO-DIMM slots, up to 32GB at 2400/2133MHz
- Intel® Optane™ Memory Ready
- 2 x SATA III 6Gb/s ports
- 1 x GbE LAN port (Realtek RTL8111HS-CG)
- Triple display ports: HDMI, DisplayPort, LVDS
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Overview
- Specifications
- Support
Specifications
Form Factor
Thin Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® Q270 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32GB of system memory
Dual channel memory architecture
Support for DDR4 2400*/2133 MHz memory modules
* 2400MHz is for 7th Gen processors only
Dual channel memory architecture
Support for DDR4 2400*/2133 MHz memory modules
* 2400MHz is for 7th Gen processors only
LAN
1 x GbE LAN port (Realtek RTL8111HS-CG)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
- Support for up to 3 displays at the same time
- DisplayPort version 1.2
- HDMI version 1.4b
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
- Support for up to 3 displays at the same time
- DisplayPort version 1.2
- HDMI version 1.4b
Audio
Realtek ALC887 codec
High Definition Audio
High Definition Audio
SATA
2 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1
Expansion Slots
1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe Gne3 x4 signal
- Supports NGFF-2260/2280 cards
1 x M.2 slot:
- E-key
- PCIe Gen2 x1 signal
- Supports NGFF-2230 cards
- M-key
- SATA 6Gb/s or PCIe Gne3 x4 signal
- Supports NGFF-2260/2280 cards
1 x M.2 slot:
- E-key
- PCIe Gen2 x1 signal
- Supports NGFF-2230 cards
Internal I/O
1 x 2-pin 12V power connector
2 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 3 x USB 2.0 ports)
1 x USB 3.0 headers (up to 2 x USB 3.0 ports)
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x COM (RS-232)
2 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 3 x USB 2.0 ports)
1 x USB 3.0 headers (up to 2 x USB 3.0 ports)
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x COM (RS-232)
Rear I/O
1 x DC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort
1 x HDMI
1 x Line-out
1 x MIC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort
1 x HDMI
1 x Line-out
1 x MIC-in
TPM
-
OS Supported
Windows 10 (x64)
Windows 8.1 (x64)
Windows 8.1 (x64)
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
1 x 12V power connector
Packaging Content
1 x SATA power cable (710mm) (P/N: 25CRI-71030A-K1R)
1 x 25.54mm I/O shield (P/N: 12AIO-MFH270-00R)
1 x 44.45mm I/O shield (P/N: 12AIO-MFH271-00R) in option
1 x 25.54mm I/O shield (P/N: 12AIO-MFH270-00R)
1 x 44.45mm I/O shield (P/N: 12AIO-MFH271-00R) in option
Ordering Information
9MFQ27AINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
