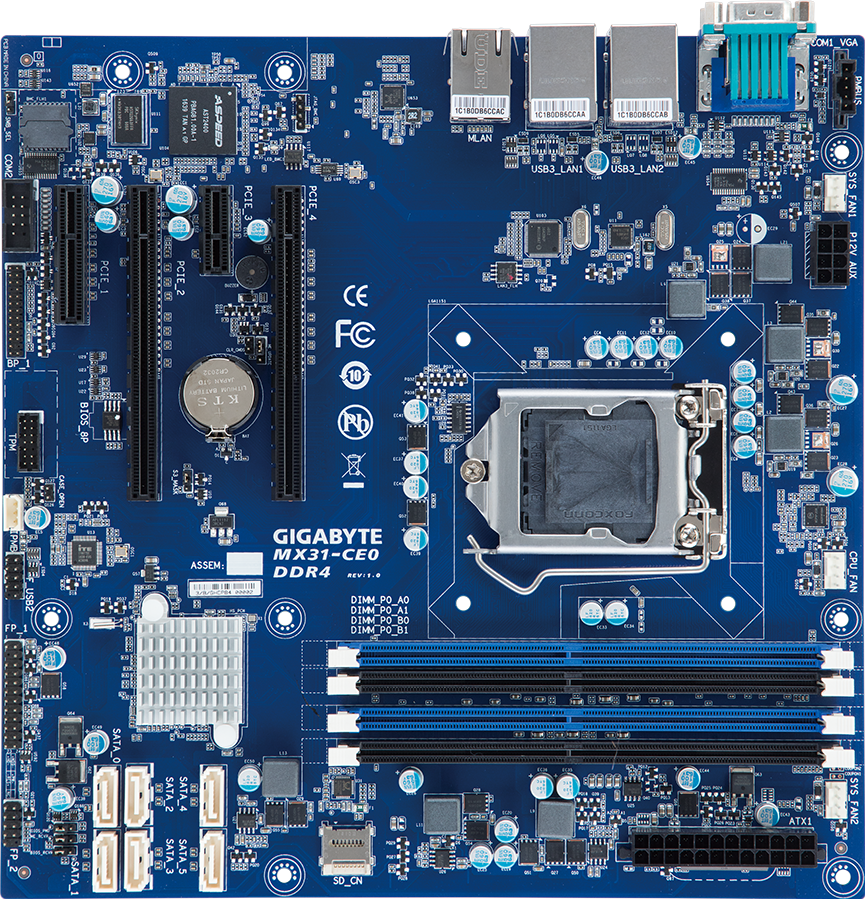

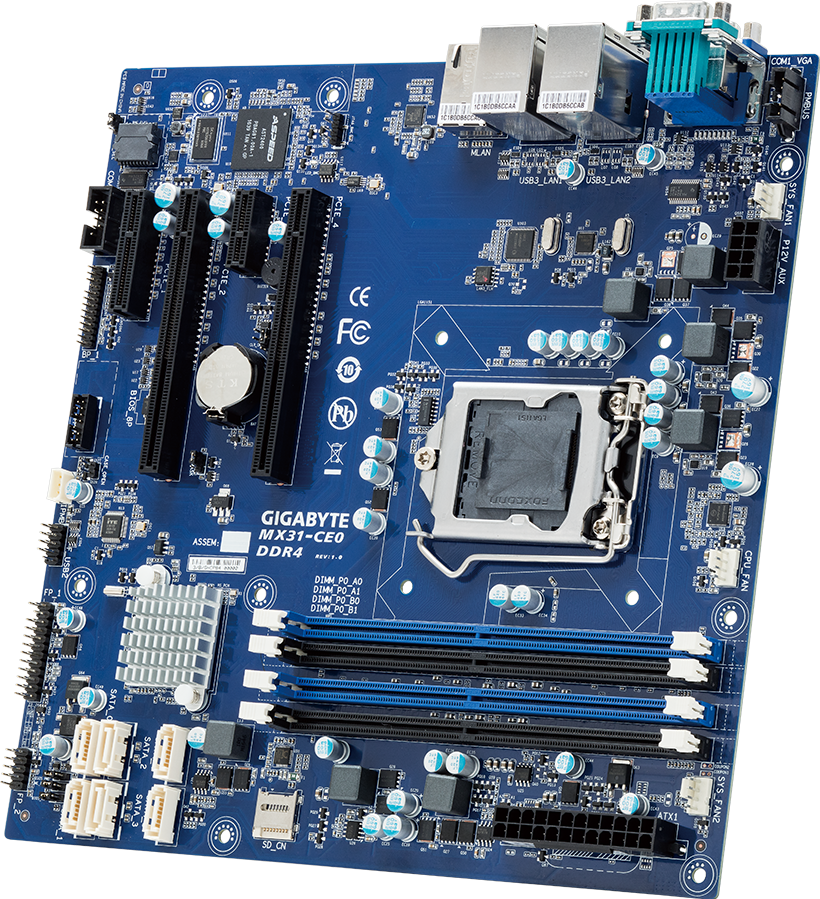

MX31-CE0

End of Support

Rev. 1.0

Intel^® C232 chipset

microATX form factor
Intel^® Xeon^® processors E3-1200 V6/V5 product family
Intel® C232 Express Chipset
4 x UDIMM slots, DDR4 2400MHz
2 x GbE LAN ports (Intel^® I210 and I219LM)
6 x SATA III 6Gb/s
1 x Micro SD socket
4 x PCIe slots

儲存

產品規格

Form Factor

microATX
244W x 244D (mm)

CPU

Supports Intel^® Xeon^® processor E3-1200 V6/V5 product family
Supports 7^th/ 6^th Gen Intel^® Core™ i3 processors, Intel^® Celeron^® processors, Intel^® Pentium^® processors

Socket

1 x LGA 1151

Chipset

Intel^® C232 Express Chipset

Memory

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz

LAN

2 x GbE LAN ports (Intel^® I210 and I219LM)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

NVMe

SAS

SATA

6 x SATA III 6Gb/s ports

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

2 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen3 x4 bus) slot
1 x PCIe x1 (Gen3 x1 bus) slot

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x Micro SD socket
1 x CPU fan header
2 x System fan headers
1 x USB 2.0 header
1 x Serial header (COM2)
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x SMBus selection jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

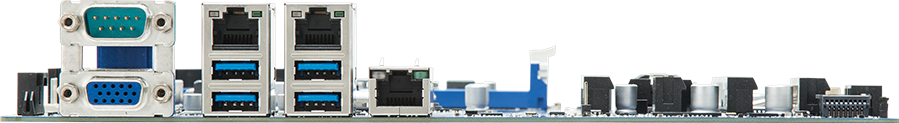

Rear I/O

1 x Serial (COM1)
1 x VGA
3 x RJ45
4 x USB 3.0

TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

OS Compatibility

Windows Server 2012 R2 (x64)
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)

Board Management

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)

PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MX31-CE0
1 x I/O shield
1 x Quick start guide
2 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm

Bulk Packaging Content

10 x MX31-CE0
10 x I/O shields
Carton dimensions: 600 x 386 x 368 mm

Reference Numbers

Retail: 9MX31CE0MR-00
Bulk: 9MX31CE0NR-00
