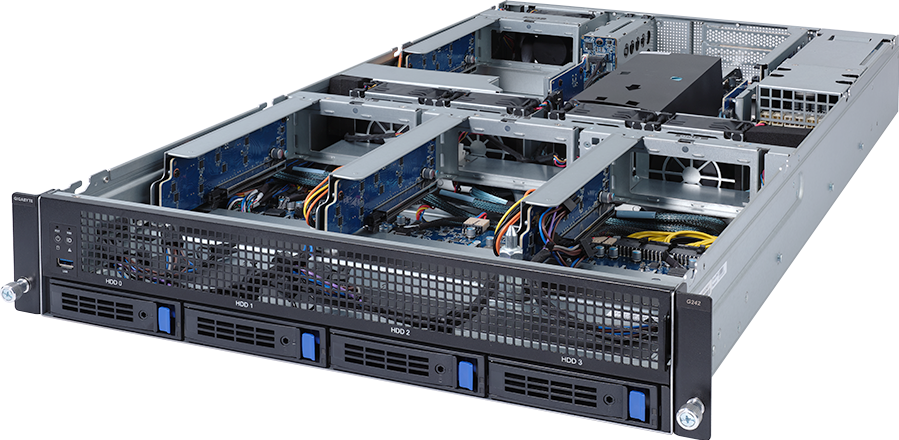

G242-Z12
HPC/AI Server - AMD EPYC™ 7003/7002 - 2U UP 4 x PCIe Gen4 GPUs
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA-Certified Systems™ - High-Density VDI Servers
- Hardware-level root of trust support
- Supports up to 4 x Dual slot Gen4 GPUs
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
- 4 x 3.5"/2.5" SATA hot-swap bays
- 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays on the rear side
- 4 x FHFL PCIe Gen4 x16 slots for GPUs
- 2 x FHHL PCIe Gen4 x16 and x8 slots
- 1 x OCP NIC 3.0 PCIe Gen4 x16 slot
- Dual 1600W 80 PLUS Platinum redundant power supply (-A00)
- Dual 1600W 80 PLUS Titanium redundant power supply (-AT0)
Specifications
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
438 x 87.5 x 820
Motherboard
MZ12-HD6
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 280W
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 280W
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
4 x 3.5"/2.5" SATA [1]
Rear hot-swap:
2 x 2.5" Gen4 NVMe/SATA/SAS [2]
[1] SATA devices supported only.
[2] SAS card is required to support SAS drives.
4 x 3.5"/2.5" SATA [1]
Rear hot-swap:
2 x 2.5" Gen4 NVMe/SATA/SAS [2]
[1] SATA devices supported only.
[2] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
4 x FHFL x16 (Gen4 x16), for GPUs
Riser Card CRSG120:
- 1 x FHHL x16 (Gen4 x16 or x8)
- 1 x FHHL x8 (Gen4 x0 or x8)
1 x OCP NIC 3.0 (Gen4 x16)
- Supports NCSI function
[Note] The system is only validated with a uniform GPU model.
Riser Card CRSG120:
- 1 x FHHL x16 (Gen4 x16 or x8)
- 1 x FHHL x8 (Gen4 x0 or x8)
1 x OCP NIC 3.0 (Gen4 x16)
- Supports NCSI function
[Note] The system is only validated with a uniform GPU model.
Front I/O
1 x USB 3.0 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
Rear I/O
2 x USB 3.0 ports (Type-A)
1 x VGA port
1 x MLAN port
1 x ID LED
1 x VGA port
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
Front - CBPG041: SATA 6Gb/s
Rear - CBP2021: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Front - CBPG041: SATA 6Gb/s
Rear - CBP2021: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
Dual 1600W 80 PLUS Platinum redundant power supply (-A00)
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
Dual 1600W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 9.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
Dual 1600W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 9.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 18.4 kg
Gross Weight: 31.2 kg
Gross Weight: 31.2 kg
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G242-Z12
1 x CPU heatsink
3 x GPU power cables (2x PCIe 8pin, 360mm)
1 x GPU power cable (2x PCIe 8pin, 480mm)
1 x 2-Section Rail kit
1 x CPU heatsink
3 x GPU power cables (2x PCIe 8pin, 360mm)
1 x GPU power cable (2x PCIe 8pin, 480mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NG242Z12MR-00-A*
- Motherboard: 9MZ12HD6NR-00*
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBPG041: 9CBPG041NR-00*
- Backplane board - CBP2021: 9CBP2021NR-00*
- Fan module: 25ST2-88382A-D0R
- Riser card - CRSG120: 9CRSG120NR-00*
- GPU power cable (2x PCIe 8pin, 360mm): 25CRI-360300-Y4R
- GPU power cable (2x PCIe 8pin, 480mm): 25CRI-480300-Y4R
- Power supply (-A00): 25EP0-21600C-L0S
- Power supply (-AT0): 25EP0-21600E-L0S
- Motherboard: 9MZ12HD6NR-00*
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBPG041: 9CBPG041NR-00*
- Backplane board - CBP2021: 9CBP2021NR-00*
- Fan module: 25ST2-88382A-D0R
- Riser card - CRSG120: 9CRSG120NR-00*
- GPU power cable (2x PCIe 8pin, 360mm): 25CRI-360300-Y4R
- GPU power cable (2x PCIe 8pin, 480mm): 25CRI-480300-Y4R
- Power supply (-A00): 25EP0-21600C-L0S
- Power supply (-AT0): 25EP0-21600E-L0S
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
