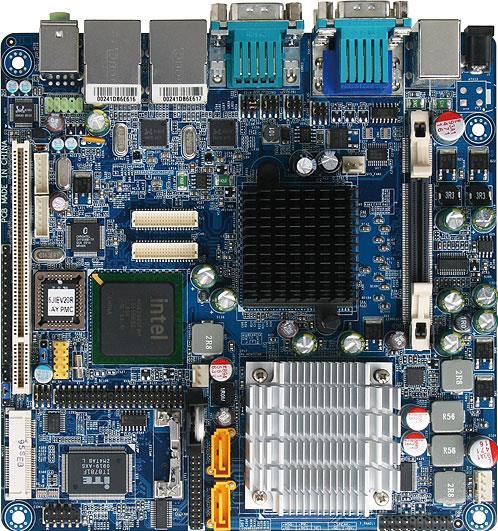

GA-6JIEV2-RHLegacy | Software updates supported
Intel ULV Celeron M 373 1.0GHz + 910GMLE + ICH6M
- Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
- Intel ULV Celeron M processor 373 1.0GHz onboard.
- Dual LVDS and 4 COM ports with 0/ 5/ 12V power switch.
- Compact Flash card slot support boot up function.
- 12V DC power adapter power in or optional 4 pin 12V power in.
- 2 ports Gigabit Ethernet provide ample network bandwidth.
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
- Onboard Intel ULV Celeron M 373 1.0GHz processor
- FSB 400MHz
Chipset
- Intel 910GMLE chipset with Intel ICH6M
Memory
- 1 DDR2 SO-DIMM socket
- 400MHz up to 2GB
LAN
- 2 Gigabit LAN (Realtek RTL8111C)
Video
- Intel GMA900 (Intel 910GMLE)
Audio
- 7.1+2 channel HD audio (Realtek ALC883)
SATA
- 2 ports SATA 1.5Gbps via Intel ICH6M
IDE/ SCSI
- 1 44pin IDE
Expansion Slots
- 1 PCI
- 1 Mini Card
- 1 Compact Flash card slot support boot-up function
Internal I/O
- 1 COM
- 2 LVDS (18bit/ 24bit)
- 2 USB
Rear I/O
- 2 Audio
- 3 COM
- 1 DC 12V power jack
- 2 RJ45
- 4 USB
- 1 VGA
Power Supply
- DC 12V adapter power in
Ordering Information
- 5M6JIEV20R-AY-10D
