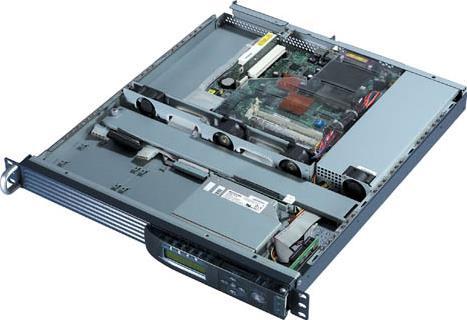

GS-SR104Legacy | Software updates supported
- Dimensions: 19"W x 1.73"H x 19.5"D
- Two Internal ATA- 100 Drive Bays
- VIA® Apollo™ VT92C694T, VT82C686B, ATI® Rage XL 8MB
- Dual Intel® Pentium® III Tualatin Processors (Socket 370/133MHz FSB/1.2GHZ+)
- Max. 2GB Un-Buffered or Registered (ECC) PC-133 SDRAM Memory in 4 Angle DIMM Slots
- Dual Intel® 82559 10/100Mbps Fast Ethernet with Advanced Software Functions
- 1 PCI 32-Bit/33MHz Full-Height Slot and 1 PCI 32-Bit/33MHz Low-Profile Slot
- Optional LCD Panel
- Specifications
- Support
- Related Resources
Specifications
CPU
- Single Intel® Pentium Ⅲ(S)/ Intel® Pentium Ⅲceleron processor
- Supports Tualatin-512K
- 100/133 MHz FSB
Chipset
- VIA® Apollo™ Pro Family AGP Set
- North Bridge：VT82C694T
- South Bridge：VT82C686B
LAN
- Two Intel® Pro/100+ Server Ethernet Controllers（Intel 82559）supports 100BASE-T and 10BASE-T, RJ45 output
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- Wake On LAN（WOL）
Video
- ATI Rage XL with 8MB memory
Expansion Slots
- Two 32bit/33MHz PCI Slot
- One Lowprofile 32bit/33MHz PCI Slot
Power Supply[#1]
- 250W ; 90V~250V ; 47~63Hz
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
