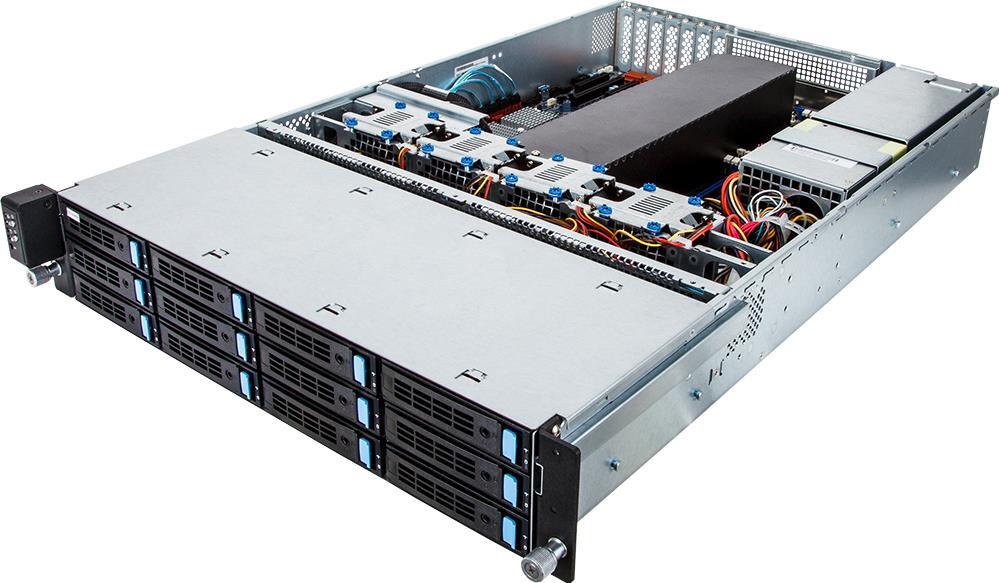

R270-D70Legacy | Software updates supported

Rev. 100

Dual Socket 2U Rackmount Server

Standard Rackmount Server

Intel^® Xeon^® processor E5-2600 V3 / V4 product family
16 x RDIMM/LRDIMM ECC DIMM slots
12 x 3.5" hot-swappable HDD/SSD bays
Supports SATA III 6Gb/s connections
2 x GbE LAN ports (Intel^® I350-AM2)
2 x 750W 80 PLUS Gold 100~220V AC redundant PSUs

Save

Overview
Specifications
Support
Related Resources

Specifications

Dimensions (WxHxD, mm)

2U
430 x 87 x 712.4

Motherboard

MD70-HB2

CPU

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

Socket

2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Chipset

Intel^® C612

Memory

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

LAN

2 x GbE LAN ports (Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

Storage

12 x 3.5" hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
Default configuration supports:
4 x SATA drives
8 x SAS drives
(SAS via third party HBA)

SATA

8 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s ports supporting SATA DOM

SAS

RAID

Intel^® SATA RAID 0/1/10/5

Peripheral Drives

Expansion Slots

3 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen2 x4 bus) connector

or (via PCIe switch):

1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
3 x PCIe x8 (Gen3 x8 bus) slots

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumper

Front I/O

1 x Power button with LED
1 x ID button with LED
2 x LAN LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

Rear I/O

2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED

Backplane Board

12 x SAS/SATA ports
Default configuration supports:
4 x SATA drives
Adapter card required to enable the 8 remaining drive bays
Recommended: RA200-8, RA201-A or CRA3338 SAS cards

TPM

1 x TPM header

Power Supply^[#1]

2 x 750W redundant PSUs
80 PLUS GOLD

AC input:
- 100-240V, 50-60Hz, 9.50/5.00A

DC output:
- 750W

System Management

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

OS Compatibility

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

System Fans

4 x 80x80x38mm (14'900rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

18 kg

Packaging Dimensions

982 x 588 x 268 mm

Packaging Content

1 x R270-D70
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit

Part Numbers

Barebone package: 6NR270D70MR-00
Spare parts:
- Rail kit: 25HB2-3A6803-I0R
- CPU heatsink: 25ST1-24320B-A8R/25ST1-24320C-A8R
- Back plane board: 9CBP20C0NR-00
- Power supply: 25EP0-207506-L0S
- Power supply PDB: 25EP0-207508-L0S
- AC/DC power supply: 25EP0-20750A-L0S (in option)
- Screws for 1 x HDD: 25KSD-130041-S0R

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
