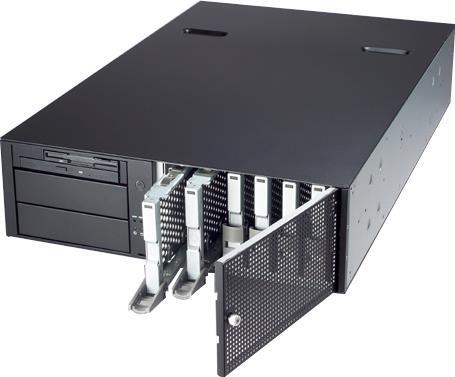

GS-SR326ELegacy | Firmware updates supported
- Dimensions: 16.8" W x 5.08" H x 26.2" D (3U)
- Slim Type 3U tower/rackmount server for space saving
- 6 SCSI Ultra-320 Hot-Swap HDD
- Supports Redundant Power
- Dual Intel® Xeon™ Prestonia CPUs 533 Mhz FSB
- ServerWork® GC-SL Chipset
- Max. Memory support 4 DDR 266 up to 4 GB
- Supports 6 PCI card: 2 x PCI-X 64Bit/133,100Mhz Slots, 2 x PCI 64Bit/66Mhz Slots,1 x PCI 64Bit/33Mhz Slot1 x PCI 32Bit/33Mhz Slot
- Optional Adaptec ASR-2015s Zero Channel RAID (ZCR) SO-DIMM
- Adaptec 7902W SCSI Controller
- Integrated Intel® 82545EM Gigabit Ethernet Controller and Intel® 82550PM Fast Ethernet Controller supports PxE, WOL, AFT, ALB, FEC
- Specifications
- Support
- Related Resources
Specifications
CPU
- Dual Intel® Xeon™ Processors with 512K L2 cache support up to 2.8GB and above
- 533 Mhz FSB
Chipset
- Serverworks® CMIC-SL Northbridge
- Serverworks® CIOB-X2 PCI-X Bridge
- Serverworks® CSB6 Southbridge
LAN
- Intel® RC82545EM 10/100/1000 Gigabit Ethernet Chipset (Server Adapter)
- Build-in Intel 82550PM 10/100 Fast Ethernet
- Supports Wake on LAN
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- Fast EtherChannel (FEC)
- PxE Supported
Video
- Integrated ATI Rage XL graphics acceleration with 8 MB RAM
RAID
- Supports Adaptec ZCR SO-DIMM module with RAID 0,1,5,10
Expansion Slots
- PCI-X 133/100MHz x 2 slots
- PCI-X 64/66 MHz x 2 Slots
- PCI 64/33 MHz x 1 Slot
- PCI 32/33 MHz x 1 Slot
Power Supply[#1]
- Max. 350W redundant Power Supply W/PFC(one for option)
- 100V~240V (Plus or minus 10 percent)
- 50~60Hz (Plus or minus 6 percent)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
