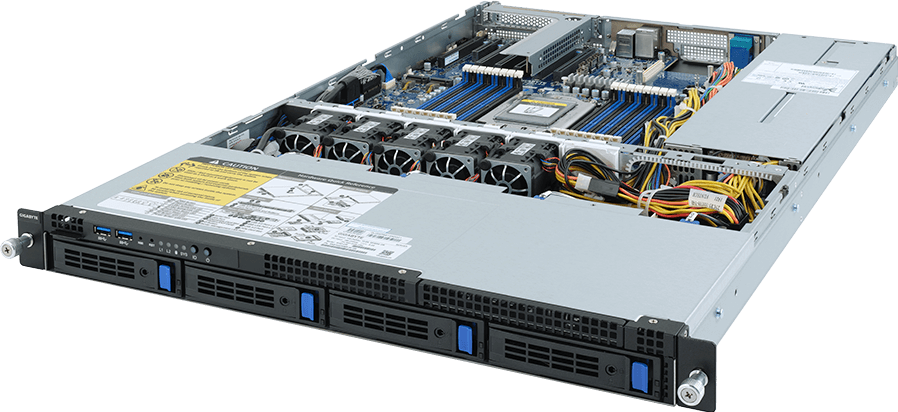

Rack Server - AMD EPYC™ 7003/7002 - 1U UP 4-Bay SATA
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" SATA hot-swap bays
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 1 x FHHL PCIe Gen4 x16 slot
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
- 1+1 650W 80 PLUS Platinum redundant power supplies
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 660
438 x 43.5 x 660
Motherboard
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
4 x 3.5"/2.5" SATA [1]
Internal M.2:
2 x M.2 (2242/2260/2280), PCIe Gen3 x4
[1] SATA devices supported only.
4 x 3.5"/2.5" SATA [1]
Internal M.2:
2 x M.2 (2242/2260/2280), PCIe Gen3 x4
[1] SATA devices supported only.
SAS
N/A
RAID
Require RAID add-in cards
Peripheral Drives
1 x Optional slim ODD
PCIe Expansion Slots
Riser Card CRS101D:
- 1 x FHHL x16 (Gen4 x16)
1 x OCP 2.0 mezzanine (Gen3 x16)(Type1, P1, P2, P3, P4)
- Supports NCSI function
- 1 x FHHL x16 (Gen4 x16)
1 x OCP 2.0 mezzanine (Gen3 x16)(Type1, P1, P2, P3, P4)
- Supports NCSI function
Front I/O
2 x USB 3.0 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
3 x USB 3.0 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
1+1 650W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- Max 650W
+12V/ 52.9A
+5Vsb/ 4A
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- Max 650W
+12V/ 52.9A
+5Vsb/ 4A
System Management
ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
5 x 40x40x56mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 12.2 kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R152-Z30
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR152Z30MR-00-A*
- Motherboard: 9MZ32AR0NR-00*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBP1042: 9CBP1042NR-00*
- Riser card - CRS101D: 9CRS101DNR-00*
- Fan module: 25ST2-44562P-D0R
- Fan duct for 280W CPU: 25HA8-R15200-S5R
- Power supply: 25EP0-206506-F3S
Optional parts:
- 3-Section Rail kit (Support CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR152Z30SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBP1042: 9CBP1042NR-00*
- Riser card - CRS101D: 9CRS101DNR-00*
- Fan module: 25ST2-44562P-D0R
- Fan duct for 280W CPU: 25HA8-R15200-S5R
- Power supply: 25EP0-206506-F3S
Optional parts:
- 3-Section Rail kit (Support CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR152Z30SR-RMA-A100
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
